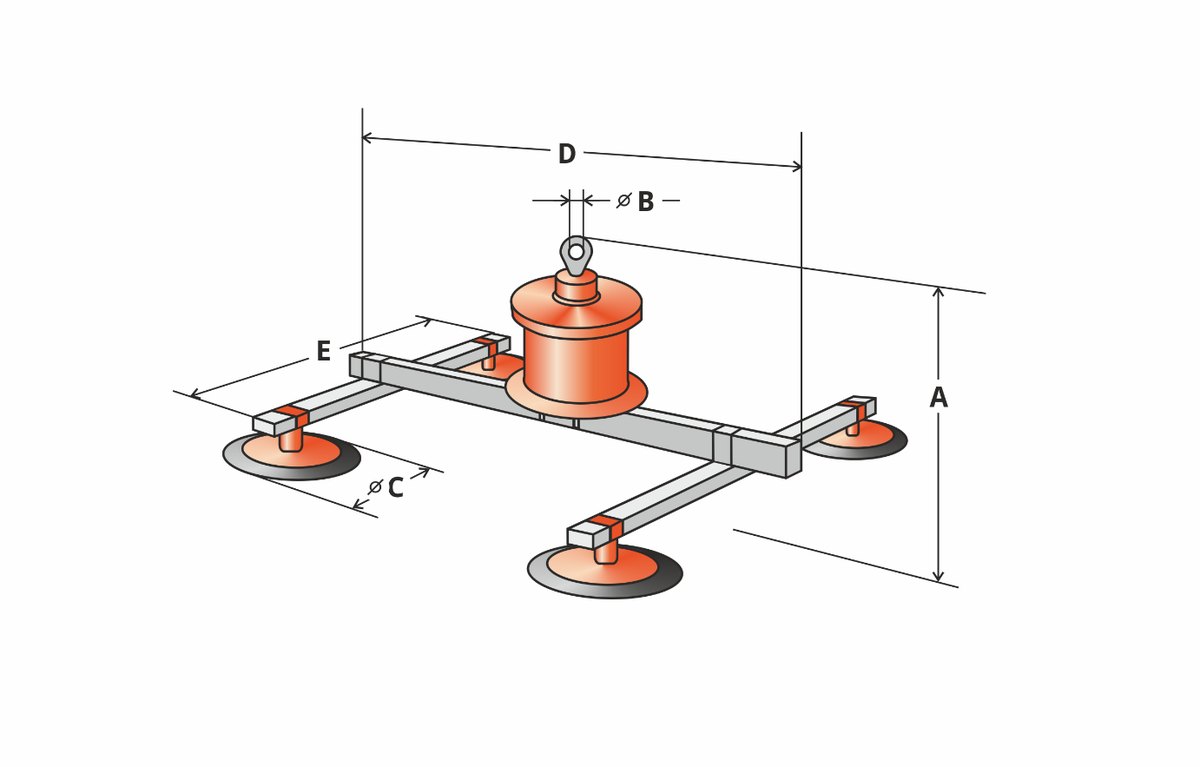

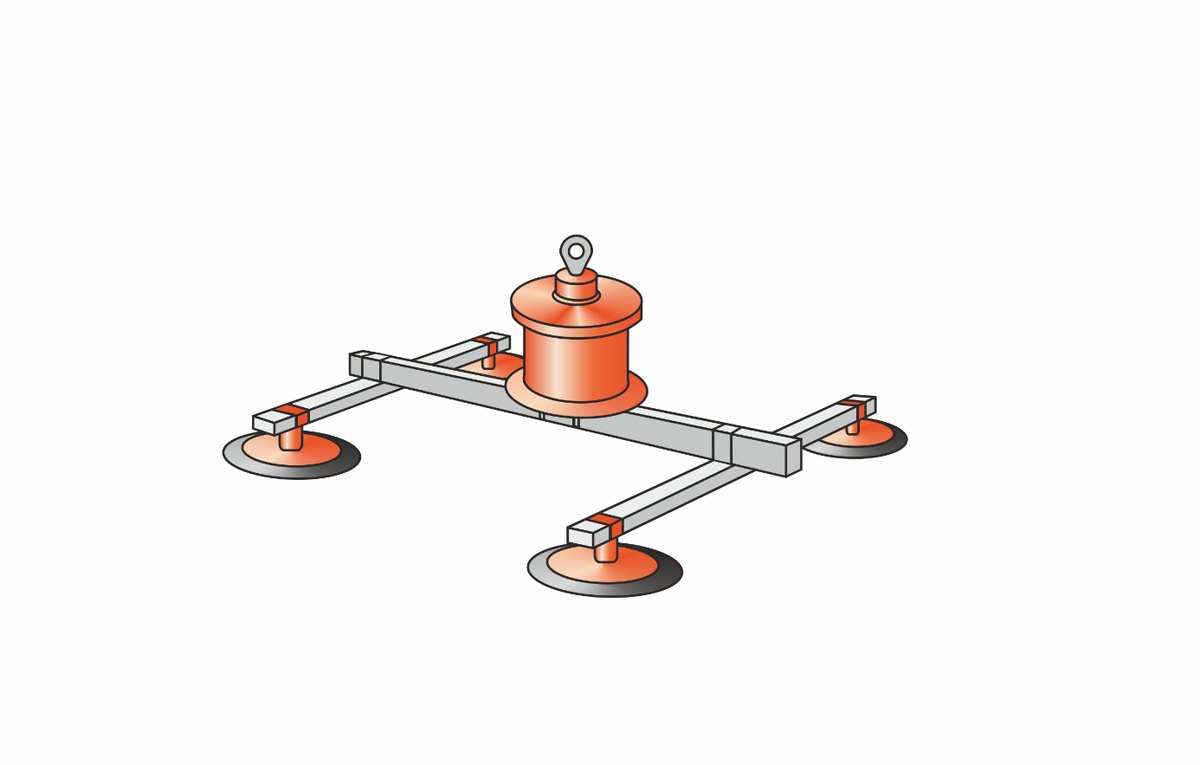

VMS 600-4R vacuum lifter

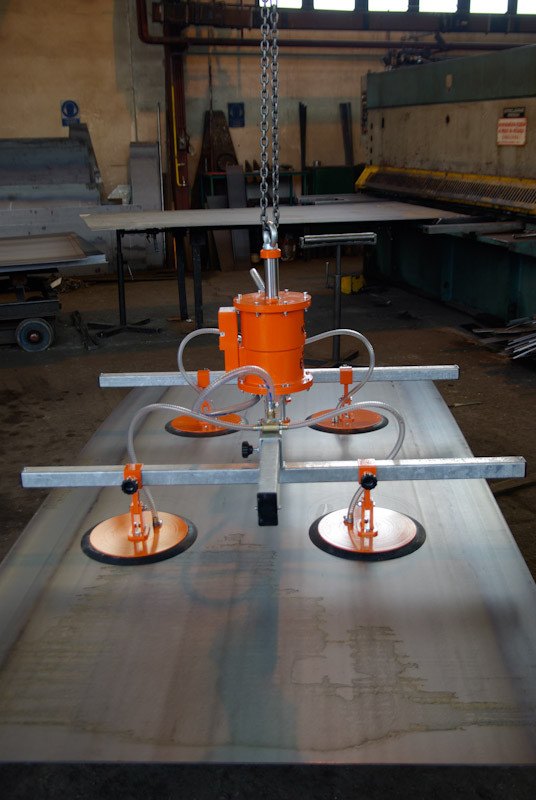

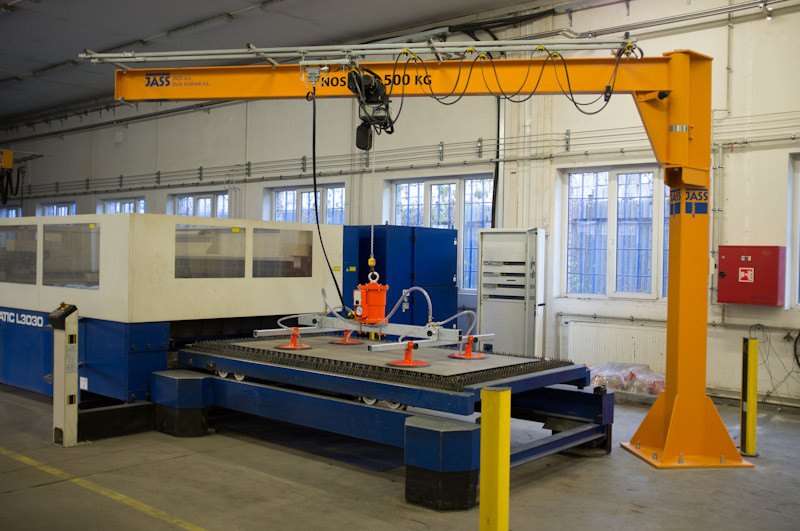

Self-priming vacuum lifter VMS 600-4R of 600 kg with 4 suction cups of Ø 340 mm, for sheet metal and slabs up to 3,000 × 1,500 mm. Four cups on a cross frame: the best-balanced configuration in the 600 kg series, the one that stays on the hoist all day because it suits almost any format. The vacuum is created by the movement of the hoist itself: lower the hook and the vacuum lifter grips, set the load down and the grip releases. No power, no compressed air and no batteries to recharge are needed, and release cannot happen while the piece is suspended. Materials: steel, stainless steel, aluminium, glass, plastic, stone and wood with a closed, sealed surface.
Minimum workpiece size 800 × 750 mm, minimum thickness 2 mm on steel, minimum load 5 kg. Own weight 106 kg. This configuration has no shut-off valves: every cup must rest on the workpiece.
| Rated capacity | 600 kg |
| Suction cups | 4 × Ø 340 mm |
| Maximum sheet metal size | 3,000 × 1,500 mm |
| Minimum size | 800 × 750 mm |
| Minimum thickness | 2 mm on steel |
| Minimum load | 5 kg |
| Own weight | 106 kg |
| Shut-off valves | no |
| Power supply | none — self-priming vacuum |
Coming to the price list: this product is just entering the Vacuum Lifters range. Ask for availability, lead time and price: we reply the same day with the configuration that suits your material.
