Sheet pack lifting clamps: SPL series from 2,500 to 10,000 kg and round bar clamps
Sheet pack lifting clamps take the pack from both sides: they slide under the pack, hook onto the crane with chains, master links or shackles, and the connecting chains prevent them from opening. SPL series manufactured by Attollo in four models from 2,500 to 10,000 kg per pair, with handling handles, and STT round bar clamps from 0.7 to 10 tonnes per clamp. Built to the sheets to be lifted, by pack size and height. List prices from 1,800 € + VAT.
Double clamps for sheet packs, SPL series
Four models from 2,500 to 10,000 kg per pair, pack height H from 200 to 600 mm, depth C 180 mm, width B from 1,000 to 1,250 mm, pair weight from 15 to 51 kg. With handles and safety connecting chains; STT round bar clamps from 0.7 to 10 t per clamp.
Sheet metal brackets: models, capacities and dimensions
| Model | Rated capacity | Pack | Weight | Supplied with |
|---|---|---|---|---|
| Sheet pack lifting clamps, SPL series from 2,500 to 10,000 kg | from 2,500 to 10,000 kg (SPL); from 700 to 10,000 kg per bracket (STT) | from 200 to 600 mm (SPL); A from 100 to 500 mm (STT) | from 15 to 51 kg (SPL) | handling knobs, safety connecting chains |
SPL and STT series: models and dimensions
| Model | Rated capacity | H | C / P | B | Weight |
|---|---|---|---|---|---|
| SPL-2 | 2,500 kg (pair) | 200 mm | 180 mm | 1.000 mm | 15 kg (pair) |
| SPL-4 | 4,000 kg (pair) | 400 mm | 180 mm | 1.000 mm | 21 kg (pair) |
| SPL-6 | 6,300 kg (pair) | 500 mm | 180 mm | 1.000 mm | 27 kg (pair) |
| SPL-10 | 10,000 kg (pair) | 600 mm | 180 mm | 1.250 mm | 51 kg (pair) |
| STT 01 (round bar) | 700 kg (per clamp) | A 100 mm | 60 mm | 200 mm | 3 kg |
| STT 02 (round bar) | 1,500 kg (per clamp) | A 150 mm | 80 mm | 250 mm | 5 kg |
| STT 03 (round bar) | 3,000 kg (per clamp) | A 200 mm | 140 mm | 350 mm | 18 kg |
| STT 04 (round bar) | 5,000 kg (per clamp) | A 300 mm | 160 mm | 500 mm | 36 kg |
| STT 05 (round bar) | 8,000 kg (per clamp) | A 400 mm | 200 mm | 600 mm | 75 kg |
| STT 06 (round bar) | 10,000 kg (per clamp) | A 500 mm | 250 mm | 800 mm | 95 kg |
Data from the Attollo catalogue: SPL series (page 38) with capacity and weight per pair; STT round bar clamps with capacity referred to the single clamp, round bar d from 20 to 80 mm. All can also be custom-built.
How to choose sheet metal brackets
Pack height
The clamp must embrace the pack: H of the SPL series ranges from 200 to 600 mm, A of the round bar clamps from 100 to 500 mm. It is chosen on the maximum height of the packs to be handled.
Capacity per pair or per clamp
SPL clamps are rated per pair, STT clamps per single clamp: with two clamps the capacity doubles. The capacity must be referred to the heaviest pack.
Attachment to the crane
Chains, master links or shackles: the clamps are rigged with two legs at a limited angle; the safety connecting chains between the two clamps prevent opening under load.
Special sheets

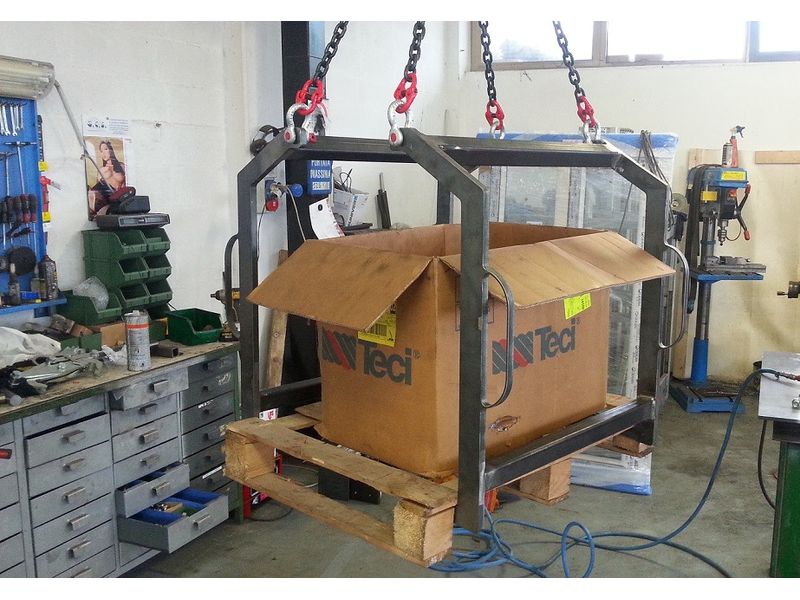

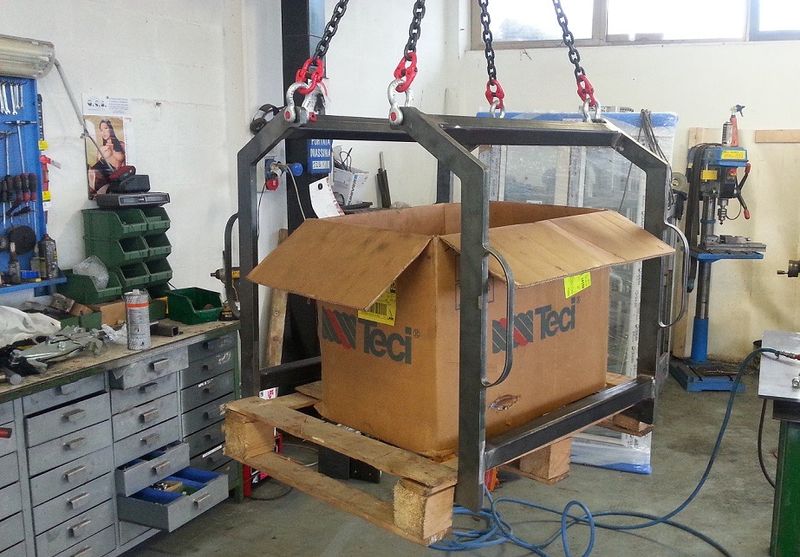

For long or thin sheets or packs of different width, custom clamps are built to the dimensions and height of the pack.
Sheet metal brackets: the most common questions
List price from 1,800 € + VAT per pair; the model is chosen on the height and weight of the packs and confirmed in the quotation.
In pairs, one on each side of the pack, joined by the safety chains; the capacity of the SPL series already refers to the pair, that of the STT to the single clamp.
With chains, master links or shackles on the hook of the crane or overhead crane; the handles are used to guide the clamps during handling.
Yes: built to Machinery Directive 2006/42/EC, with CE marking, capacity plate, declaration of conformity and manual.
