Adjustable H-frame lifting beams: from 2,000 to 15,000 kg at list price, special versions up to 30 t
The H-frame lifting beam takes the load on four points: a main beam and two cross beams, with attachment points adjustable on both axes to suit skids, containers, formwork, slabs and boats. BHR series made by Attollo in 29 models from 2,000 to 15,000 kg with beam from 3 to 6 metres, dismountable version with reduced footprint, special versions up to 30 tonnes and aluminium H-frame lifting beams from 1,000 kg. List prices from 4,500 € + VAT.
Adjustable steel H-frame lifting beams, BHR series
Steel main beam and two cross beams, with four adjustable attachment points: 29 models from 2,000 to 15,000 kg with A from 1,500 to 6,000 mm and B from 900 to 3,000 mm, supplied with bow shackles and swivel hooks. Above 15,000 kg, special versions up to 30 tonnes.
Dismountable H-frame lifting beams
The cross beams mounted above the main beam reduce the overall height and the lifting beam is dismantled for transport: for construction sites and cranes with little headroom.
Aluminium H-frame lifting beams
From 1,000 kg, adjustable on both axes and also dismountable: they are rigged by hand where steel would require a second machine. For slabs, glazing, photovoltaic panels and formwork.
Adjustable H-frame lifting beams: models, capacities and dimensions
| Model | Rated capacity | Main beam A | Cross beams B | Supply |
|---|---|---|---|---|
| Adjustable H-frame lifting beam up to 10 tonnes, BHR series | from 2,000 to 10,000 kg | 3,000, 4,000, 5,000 or 6,000 mm; adjustable from half to full beam length | from 900-1,500 mm to 1,500-3,000 mm depending on model | bow shackles, swivel hooks, primer and two coats of enamel |

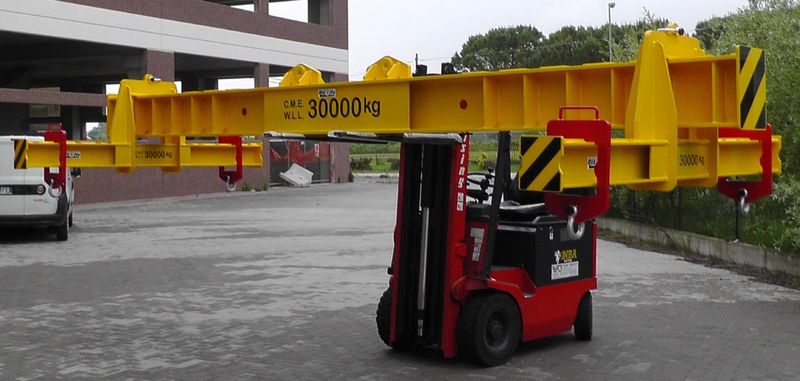

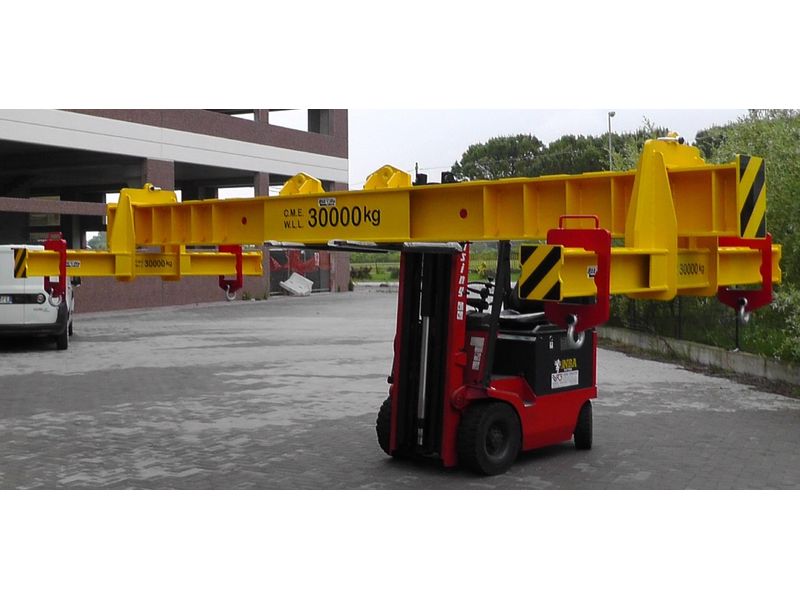

| Adjustable H-frame lifting beam for heavy loads up to 30 tonnes | up to 30,000 kg (list models up to 15,000 kg) | 4,000, 5,000 or 6,000 mm from the list; custom-built beyond | from 1,100-2,000 mm to 1,500-3,000 mm from the list | bow shackles, swivel hooks, primer and two coats of enamel |

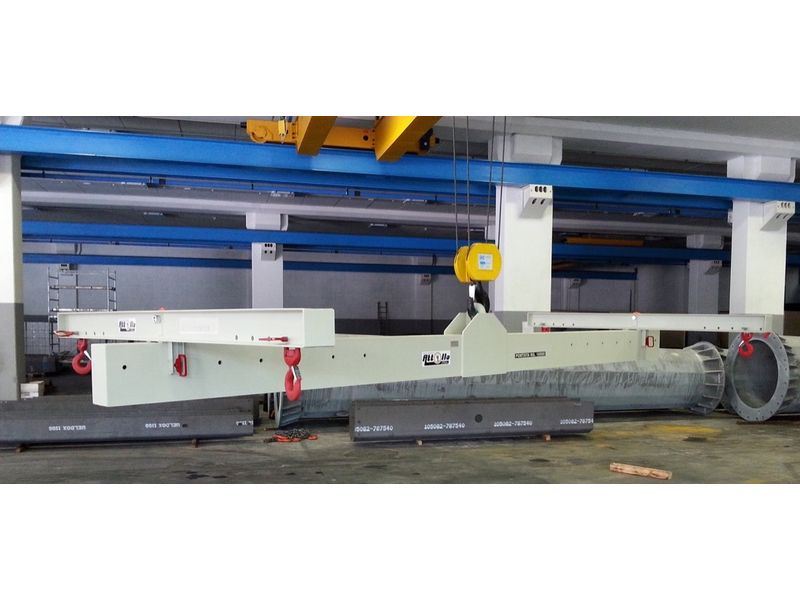

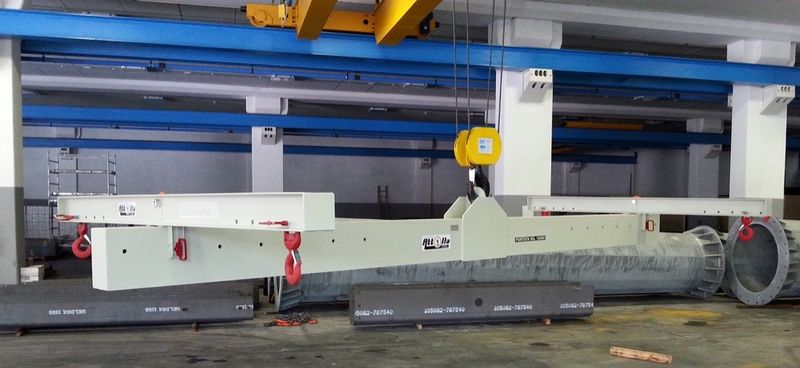

| Adjustable dismountable H-frame lifting beam up to 10 tonnes, low headroom | from 2,000 to 10,000 kg | 3,000-6,000 mm, adjustable from half to full beam length | from 900 to 3,000 mm depending on model, mounted above the main beam | dismountable into beam and two cross beams |
| Adjustable aluminium H-frame lifting beam | 1,000 kg | — | on both axes | aluminium |
| Dismountable aluminium H-frame lifting beam | — | — | on both axes | dismountable, loads into a van |
BHR series: models, capacities and adjustments
| Model | Rated capacity | A max | A min | B max | B min |
|---|---|---|---|---|---|
| BHR-23 · 24 · 25 · 26 | 2,000 kg | 3.000 / 4.000 / 5.000 / 6.000 mm | 1.500 / 2.000 / 2.500 / 3.000 mm | 1.500 / 2.000 / 2.500 / 3.000 mm | 900 / 1.100 / 1.300 / 1.500 mm |
| BHR-33 · 34 · 35 · 36 | 3,000 kg | 3.000 / 4.000 / 5.000 / 6.000 mm | 1.500 / 2.000 / 2.500 / 3.000 mm | 1.500 / 2.000 / 2.500 / 3.000 mm | 900 / 1.100 / 1.300 / 1.500 mm |
| BHR-43 · 44 · 45 · 46 | 4.000 kg | 3.000 / 4.000 / 5.000 / 6.000 mm | 1.500 / 2.000 / 2.500 / 3.000 mm | 1.500 / 2.000 / 2.500 / 3.000 mm | 900 / 1.100 / 1.300 / 1.500 mm |
| BHR-53 · 54 · 55 · 56 | 5,000 kg | 3.000 / 4.000 / 5.000 / 6.000 mm | 1.500 / 2.000 / 2.500 / 3.000 mm | 1.500 / 2.000 / 2.500 / 3.000 mm | 900 / 1.100 / 1.300 / 1.500 mm |
| BHR-63 · 64 · 65 · 66 | 6.000 kg | 3.000 / 4.000 / 5.000 / 6.000 mm | 1.500 / 2.000 / 2.500 / 3.000 mm | 1.500 / 2.000 / 2.500 / 3.000 mm | 900 / 1.100 / 1.300 / 1.500 mm |
| BHR-84 · 85 · 86 | 8,000 kg | 4.000 / 5.000 / 6.000 mm | 2.000 / 2.500 / 3.000 mm | 2.000 / 2.500 / 3.000 mm | 1.100 / 1.300 / 1.500 mm |
| BHR-104 · 105 · 106 | 10,000 kg | 4.000 / 5.000 / 6.000 mm | 2.000 / 2.500 / 3.000 mm | 2.000 / 2.500 / 3.000 mm | 1.100 / 1.300 / 1.500 mm |
| BHR-154 · 155 · 156 | 15.000 kg | 4.000 / 5.000 / 6.000 mm | 2.000 / 2.500 / 3.000 mm | 2.000 / 2.500 / 3.000 mm | 1.100 / 1.300 / 1.500 mm |
Data from the Attollo catalogue, pages 32-33: A is the centre distance along the main beam, B the one on the cross beams. Steel structure with primer and two coats of enamel; higher capacities and other dimensions on request.
How to choose adjustable h-frame lifting beams
Four points or two
The H-frame lifting beam is needed when the load has four eyebolts or four attachment points and must not bend: skids, containers, formwork, slabs, boats. For loads with two points the single-beam lifting beam is enough.
Adjustments A and B
A is the distance between the cross beams along the main beam, B the distance between the attachment points of each cross beam: they are chosen on the largest and the smallest load the lifting beam will have to take, because each model covers a range (A from half to the full beam).
Capacity and dead weight
The capacity is that of the heaviest load; the weight of the lifting beam is deducted from the crane capacity, and with cranes at their limit the 1,000 kg aluminium version solves the problem.
Headroom
If the crane has little travel, the dismountable lifting beam with the cross beams above the main beam reduces the vertical footprint; the height H of the lifting beam must in any case be deducted from the hook travel.
Transport
For construction sites and mobile cranes the dismountable version travels in a van; the aluminium versions are assembled by hand. Steel lifting beams with beams over 6 m are shipped on a semi-trailer.
Adjustable H-frame lifting beams: the most common questions
List price from 4,500 € + VAT for models up to 10 tonnes, also dismountable; 6,000 € for versions up to 30 tonnes; the 1,000 kg aluminium H-frame lifting beam starts from 1,900 €. The exact model is confirmed in the quotation.
The BHR series list price range goes from 2,000 to 15,000 kg with beam from 3 to 6 metres; beyond that, up to 30 tonnes, it is custom-built in Milan.
Bow shackles and swivel hooks for suspending the load, primer and two coats of enamel, CE marking, capacity plate and declaration of conformity.
Yes: the swivel hooks accept polyester slings, chains and wire ropes; the lifting beam keeps the sling legs vertical and avoids the oblique components that crush the load.
Yes: built to the Machinery Directive 2006/42/EC, delivered with CE marking, capacity plate, declaration of conformity and manual.
