Adjustable H-frame lifting beam up to 10 tonnes, BHR series

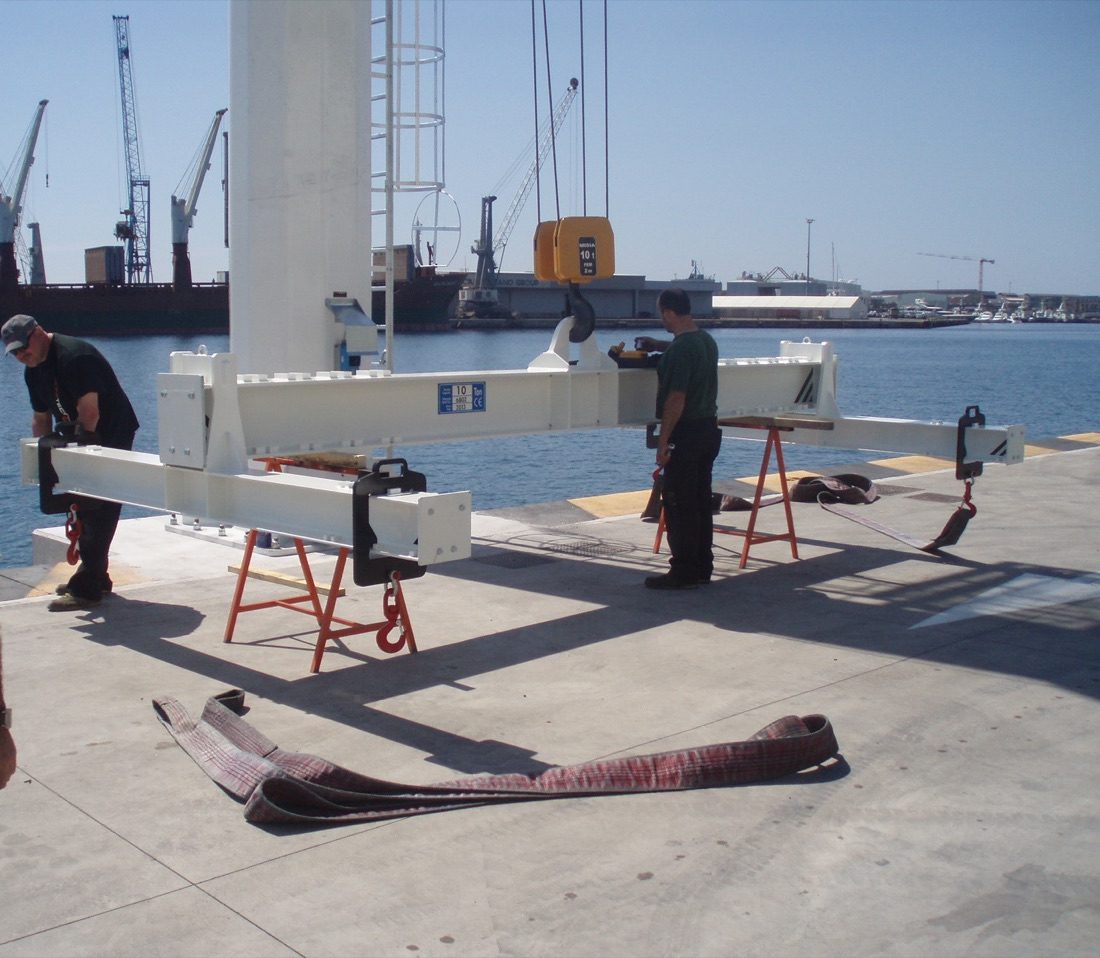

The adjustable H-frame lifting beam up to 10 tonnes handles skids, containers, boats and bulky loads on four adjustable points: the main beam with the two sliding cross beams (A) and the attachment points that move along the cross beams (B). BHR series manufactured by Attollo, 26 models from 2,000 to 10,000 kg with beam from 3 to 6 metres, supplied with bow shackles and swivel hooks. List price from 4,500 € + VAT.
The table on the data sheet lists the models: for each capacity, the beam of 3,000, 4,000, 5,000 or 6,000 mm with A adjustable from half the beam to the full beam (for example BHR-104: 10,000 kg, A from 2,000 to 4,000 mm) and B on the cross beams from 900-1,500 mm up to 1,500-3,000 mm. The model is chosen on the largest and the smallest load.
Steel structure with primer and two coats of enamel, central hook for the crane, bow shackles and swivel hooks as standard for suspending the load with polyester slings, chains or wire ropes.
The four points keep the sling legs vertical and the load is neither squeezed nor bent: machine skids, containers, formwork, slabs and hulls rise level. The same lifting beam serves different pieces by adjusting A and B with the beam unloaded.
2006/42/EC certified with capacity plate and declaration of conformity; higher capacities and different sizes, dismountable version and 1,000 kg aluminium version on request.
| Series | BHR, 26 models from 2,000 to 10,000 kg |
| Rated capacity | from 2,000 to 10,000 kg |
| Main beam A | 3,000, 4,000, 5,000 or 6,000 mm; adjustable from half to full beam length |
| Cross beams B | from 900-1,500 mm to 1,500-3,000 mm depending on model |
| Supply | bow shackles, swivel hooks, primer and two coats of enamel |
| Structure | steel |
| Certification | 2006/42/EC, capacity plate and declaration of conformity |
Custom-built: every piece of equipment is custom-built and certified to CE 2006/42. Request a quotation for your exact configuration and capacity.
Adjustable H-frame lifting beam up to 10 tonnes, BHR series — models and capacities
| Model | Capacity (KG) | A max (mm) | A min (mm) | B max (mm) | B min (mm) |
|---|---|---|---|---|---|
| BHR-23 | 2000 | 3000 | 1500 | 1500 | 900 |
| BHR-24 | 2000 | 4000 | 2000 | 2000 | 1100 |
| BHR-25 | 2000 | 5000 | 2500 | 2500 | 1300 |
| BHR-26 | 2000 | 6000 | 3000 | 3000 | 1500 |
| BHR-33 | 3000 | 3000 | 1500 | 1500 | 900 |
| BHR-34 | 3000 | 4000 | 2000 | 2000 | 1100 |
| BHR-35 | 3000 | 5000 | 2500 | 2500 | 1300 |
| BHR-36 | 3000 | 6000 | 3000 | 3000 | 1500 |
| BHR-43 | 4000 | 3000 | 1500 | 1500 | 900 |
| BHR-44 | 4000 | 4000 | 2000 | 2000 | 1100 |
| BHR-45 | 4000 | 5000 | 2500 | 2500 | 1300 |
| BHR-46 | 4000 | 6000 | 3000 | 3000 | 1500 |
| BHR-53 | 5000 | 3000 | 1500 | 1500 | 900 |
| BHR-54 | 5000 | 4000 | 2000 | 2000 | 1100 |
| BHR-55 | 5000 | 5000 | 2500 | 2500 | 1300 |
| BHR-56 | 5000 | 6000 | 3000 | 3000 | 1500 |
| BHR-63 | 6000 | 3000 | 1500 | 1500 | 900 |
| BHR-64 | 6000 | 4000 | 2000 | 2000 | 1100 |
| BHR-65 | 6000 | 5000 | 2500 | 2500 | 1300 |
| BHR-66 | 6000 | 6000 | 3000 | 3000 | 1500 |
| BHR-84 | 8000 | 4000 | 2000 | 2000 | 1100 |
| BHR-85 | 8000 | 5000 | 2500 | 2500 | 1300 |
| BHR-86 | 8000 | 6000 | 3000 | 3000 | 1500 |
| BHR-104 | 10000 | 4000 | 2000 | 2000 | 1100 |
| BHR-105 | 10000 | 5000 | 2500 | 2500 | 1300 |
| BHR-106 | 10000 | 6000 | 3000 | 3000 | 1500 |
| BHR-154 | 15000 | 4000 | 2000 | 2000 | 1100 |
| BHR-155 | 15000 | 5000 | 2500 | 2500 | 1300 |
| BHR-156 | 15000 | 6000 | 3000 | 3000 | 1500 |
Technical data from the Attollo catalogues. Prices and custom configurations on request.
Data sheets
Adjustable H-frame lifting beam up to 10 tonnes, BHR series: the most common questions
List price from 4,500 € + VAT; the exact BHR series model (capacity and length) is confirmed in the quotation.
On the load: the capacity on the heaviest piece, A on the length and B on the width of the attachment points, checking that the smallest piece falls within the minimum settings.
No: cross beams and attachment points are moved with the beam unloaded and locked before lifting.
