Lifting equipment catalogue
Twenty-one product families for industry, steel fabrication, shipyards and machine shops. Every item is CE compliant, designed and built to measure. Download the PDF data sheet or request a quotation to buy.
Two ranges, one CE standard
Choose where to start
ALUMINIUM RANGE
Aluminium range
Dismountable gantry cranes, tripods, cross-beams and light support stands: the capacity of steel, at a weight that travels in a van.
SUPPORT STANDS RANGE
Support Stands range
Fixed, height-adjustable and wheeled support stands: CE certified with plate and serial number, made to measure on your workpiece too.
FORKLIFT RANGE
Forklift range
Forks, crane jibs, rams, buckets, clamps and loading platforms for forklift trucks: the CE certified attachments that add a function to your truck.
VACUUM RANGE
Vacuum range
Vacuum lifters for sheet metal, glass, marble, timber and sandwich panels: electric, pneumatic, battery and manual — the grip that leaves no mark on the material.
CRANE SYSTEMS RANGE
Crane Systems and Winches range
Overhead cranes and suspended systems on columns or anchored to the roof, electric wire rope winches: designed and installed in your building.
INOX & ATEX
Stainless and ATEX range
Jib cranes entirely in stainless steel for food and pharmaceutical use, ATEX certified hoists for potentially explosive atmospheres.
Data sheets ready to download. For every product you will find the official Attollo PDF catalogue. For prices and custom configurations, request a quotation: we reply with the technical solution that suits your load.
Cranes and lifting systems
Cranes and lifting systems
From the single workstation to the large building: jib cranes, gantry cranes, tripods, overhead cranes and suspended systems, in steel or aluminium.
CE 2006/42
Jib cranes
A jib crane with a pillar means designing and supplying both the pillar and the arm. The type of floor fixing is one of the central questions at the design and installation stage. Slewing of the arm, fitted with a chain or wire rope hoist, can be powered or manual.
CE 2006/42

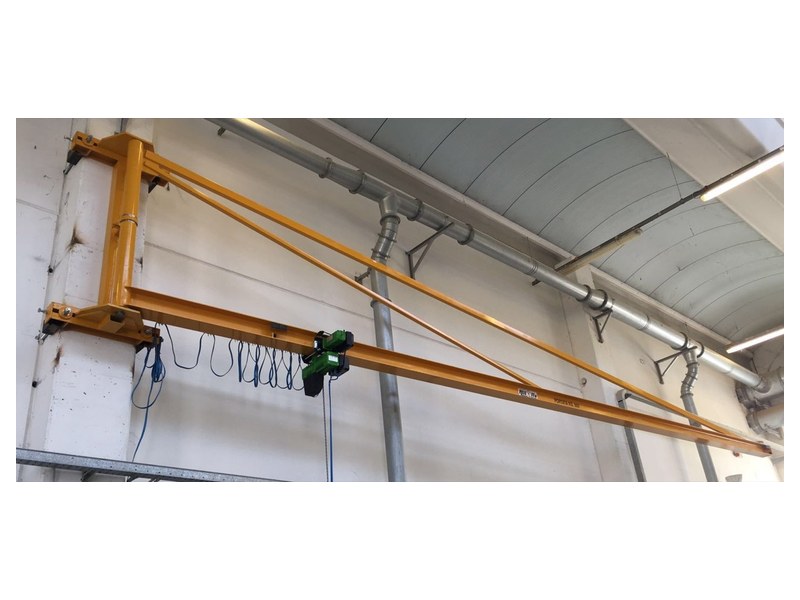

Wall-mounted crane
When a jib crane is needed without a pillar, the answer is a wall-mounted jib crane. Fitted with an electric or manual chain hoist, it is fixed to an existing reinforced concrete column or beam, or to a load-bearing wall, again in reinforced concrete.
CE 2006/42
Jib cranes for boat hauling
Jib cranes for boat hauling, also known as marine cranes, are used for laying up or repairing craft large and small. Single-arm and twin-arm versions are available. Slewing is always powered, on a 360° slewing ring, and capacities reach up to 40 tonnes.
CE 2006/42
Aluminium jib crane
For maintenance work in changing locations, available in an aluminium version with stainless steel mounting bases and in a galvanized steel version. Aluminium jib cranes are practical and light and are easily transported: just 24 kg.
CE 2006/42

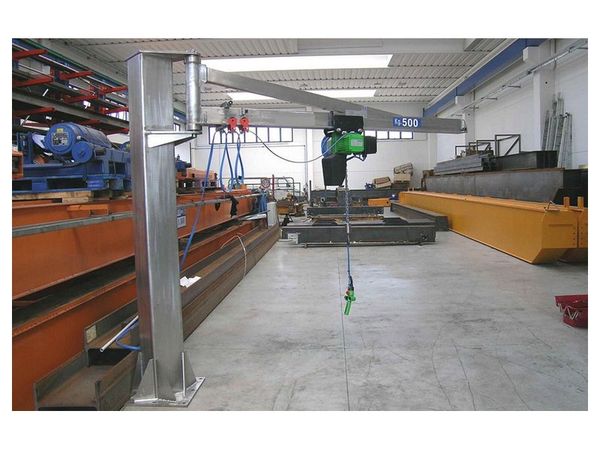

Stainless steel jib cranes
Jib cranes built entirely in stainless steel, fasteners included: the answer for food, pharmaceutical and chemical departments and for outdoor use, where paint is not permitted or does not last. Available in AISI 304 and AISI 316, with manual slewing of the arm and capacities built to measure.
CE 2006/42
Aluminium gantry crane
The aluminium gantry crane, thanks to its low weight, makes moving a load fast, effective, practical and safe. Its particular design lets it be taken apart and reassembled easily, so it can be fitted to the space available.
CE 2006/42
Steel gantry cranes
Steel gantry cranes stand in for the overhead crane where there isn't one, or where one cannot be installed: two uprights, a beam and a hoist, with the structure moving to wherever the lift is needed. The range covers capacities from 1,000 to 6,000 kg in the four configurations that answer almost every workshop case — mobile on four swivel castors, on rails with powered travel, fixed for hauling boats, and height-adjustable to suit the building. All CE 2006/42 certified and built to measure.
CE 2006/42
Aluminium tripod
The tripod, used for lifting work outdoors or inside a building, stands on firm, level ground. Its articulated joints allow quick assembly and dismantling. It carries a ring for attaching a manual hoist or a wire rope winch.
CE 2006/42
Overhead cranes and suspended systems
Built from modular profiles that let the installation be tailored to the customer's specification. These modular systems make the best use of the working area, with the option of anchoring to existing roof structures.
Lifting beams, spreaders and hooks
Lifting beams, spreaders and hooks
Single-beam, H-frame, cross, spreaders and C-hooks for coils: below-the-hook solutions for every geometry and capacity.
CE 2006/42
Fixed lifting beams
Lifting beams with one top hook to connect to the crane and two fixed bottom hooks. They have no capacity limit, except the aluminium ones, and can be built to requirement. Supplied with shackles and swivel hook.
CE 2006/42
Adjustable single-beam lifting beams
Lifting beams with one top hook to connect to the crane and two adjustable bottom hooks. In steel beam or in a lightweight aluminium version. They can be built to the customer's requirement and are supplied with shackles and swivel hook.
CE 2006/42
Adjustable H-frame lifting beams
In the H-frame lifting beam the structure consists of a main beam, adjustable or fixed, and two end beams running along the main beam, in aluminium too. They give four attachment points, fixed or adjustable, to suit any lifting requirement.
CE 2006/42
Cross spreader
Spreader beams come in various geometries: X-shaped, square, rectangular or single-beam. They can be fixed, adjustable or telescopic. They differ from lifting beams in that the top attachment points sit at the ends. Ideal for hauling and handling boats.
CE 2006/42
Single-beam spreaders
Spreaders come in various geometries: cross-shaped, square, rectangular or single-beam, fixed, adjustable or telescopic. Used to lift skids, containers or bulky masses, with wire rope, chain or polyester slings.
CE 2006/42
C-hook for coils
C-hooks for lifting and handling coils, also balanced with a counterweight, extremely robust for continuous duty and fitted with a steering handle. Also available with powered 360° rotation, for coils with a horizontal-axis eye.
CE 2006/42
Sheet metal brackets
Twin brackets for lifting stacks of sheet metal, with handles to steer the load and safety linking chains. They attach to the crane by chains, master links or shackles. Built around the sheets to be lifted, for both dimensions and stack height.
Vacuum lifters, below-the-hook and accessories
Vacuum lifters, below-the-hook and accessories
Professional vacuum lifters, certified support stands, fork-mounted attachments, hoists and CE compliant accessories.
CE 2006/42
ATEX and explosion-proof hoists
Hoists certified for potentially explosive atmospheres to the ATEX Directive 2014/34/EU: manual versions with bronzed hooks and stainless steel chain, and pneumatic versions for continuous cycles. For chemical and petrochemical plants, paint shops, silos and every classified area.
CE 2006/42
Certified support stands
Steel support stands make work easier, holding the material stable on its support. For heavy loads, capacities start at 500 kg. Suited to construction sites, production departments, machine shops, paint shops, blacksmiths and die shops.
CE 2006/42
Fork-mounted attachments
Fork-mounted jibs and lifting beams for forklift trucks and plant, lifting beams for forklift forks, fork-mounted C-hooks, fork-mounted vacuum lifter for sheet metal. Special applications: tilting crane jibs, telescopic and extendable crane jib for forklift forks.
CE 2006/42
Vacuum lifters
Vacuum makes it possible to lift almost any surface, smooth or otherwise: curved glass, marble, granite, timber panels, insulated panels, sheet metal. Vacuum lifting beams can be powered, battery-driven, adjustable, telescopic or hydraulic. Also manual, with pump or lever.
CE 2006/42

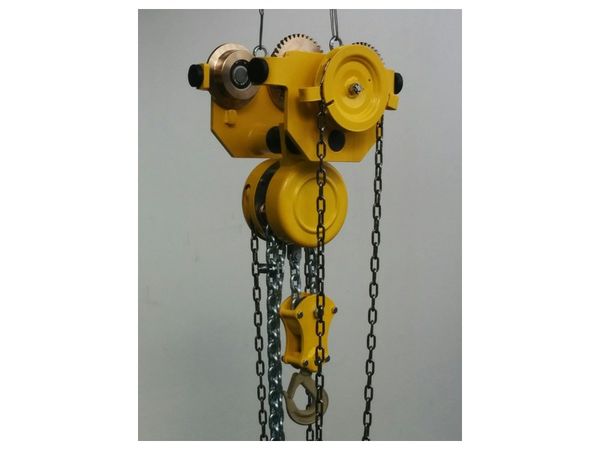

Chain hoists
Chain hoists are certified to lift and move any load in complete safety. Electric hoists have a speed control for precise positioning of goods. Manual, electric or pneumatic lifting, according to what production requires.
CE 2006/42
New Jersey barrier clamp
The road barrier clamp has capacities from 5,000 up to 8,000 kg, suited to lifting motorway New Jersey barriers or any casting with parallel faces. Gripping and release are automatic, and the clamp comes with rubber jaws or, on request, steel ones.
CE 2006/42
Below-the-hook equipment
Every attachment that goes on the hook for lifting work, used on cranes of every kind such as overhead cranes or jib cranes: lifting beams, clamps, chains, magnets, webbing slings, hoists and much more, always CE compliant.
CE 2006/42

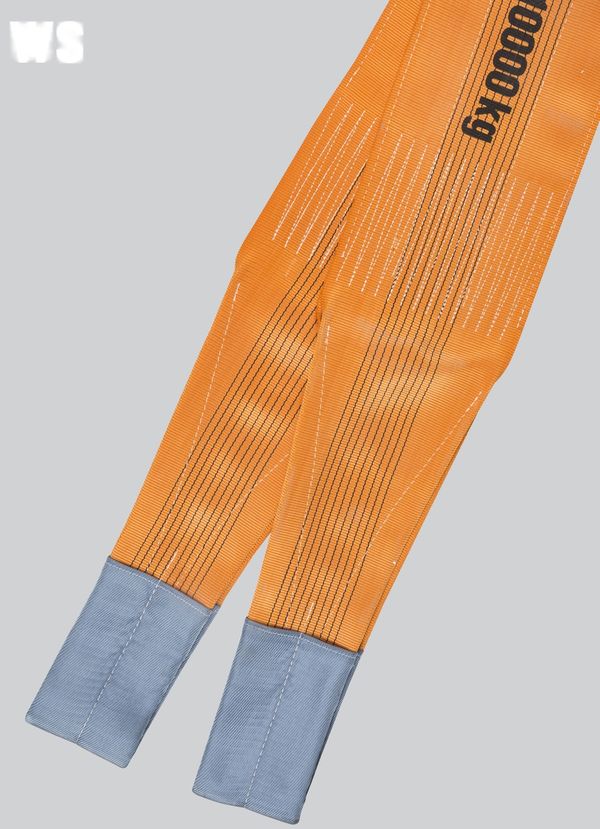

Textile slings
Polyester textile slings for lifting: duplex webbing slings, round slings, single-ply belt slings and endless slings, with steel core, single-use and flame-resistant. The colour identifies the capacity to EN 1492, with a 7:1 safety factor. Completing the range: protective sleeves, net slings, ratchet lashing straps and pipe-lifting slings.
