Vacuum lifters: electric, pneumatic, battery-powered and self-priming, from 40 to 8,000 kg

The vacuum lifter picks up the load by its surface without slings: the catalogue lists eight models, from the 3,500 kg electric vacuum lifter for sheet metal to the battery vacuum lifters for glass, wood and sandwich panels; the vacuum lifter line comprises 40 machines in six collections by material, from 40 to 8,000 kg, electric, pneumatic, battery-powered and self-priming with no power supply. All CE certified with vacuum gauge and alarm. List prices from 200 € + VAT.

Vacuum lifters

Vacuum lifters for sheet metal

The 3,500 kg electric vacuum lifter, the beams with 10 and 12 suction pads for long sheets, the battery fork-mounted vacuum lifter for the forklift and, in the line, vacuum lifters up to 8,000 kg and VMS self-priming vacuum lifters from 100 to 2,400 kg.

Vacuum lifters

Vacuum lifters for glass and with on-board pump

The 6-pad vacuum lifter, the electric one with support stand, the vacuum lifter with on-board pump for smooth surfaces and, in the line, the 600 and 800 kg machines with electric rotation.

Vacuum lifters

Vacuum lifters for wood and sandwich panels

The vacuum lifter for wood with pneumatic swinging and the self-contained battery vacuum lifter for insulated panels; in the line, site vacuum lifters for laying roofing.

All models

Vacuum lifters: models, capacities and dimensions

ModelRated capacityPick-upsPower supplyMovements
Electric vacuum lifter for sheet metal, 3,500 kg, GLA series up to 1,500 kg—4, 6 or 8 of Ø 250 or 300 mm, adjustableelectric 220/380 V, consumption 380 l/min—
Vacuum lifter for sheet metal with 10 pads, pneumatic VLA series from 250 to 1,500 kg—4, 6, 8 or 10 of Ø 250 or 300 mm, adjustable6/8 bar compressed air, consumption 130 l/min—
Dismountable 12-pad vacuum lifter for large-format sheets—12, adjustable on the armselectric, pneumatic or battery, according to the systemlarge-format thin sheets and plates, sites and assembly work
VMS 600-4R vacuum lifter600 kg4 × Ø 340 mmnone — self-priming vacuum—
6-pad glass vacuum lifterto the sheets, on the plate6 suction pads on an adjustable frame220/380 V or 24 V battery—
Electric glass vacuum lifter with standto the sheets, on the plate—electric, vacuum gauge and alarm—

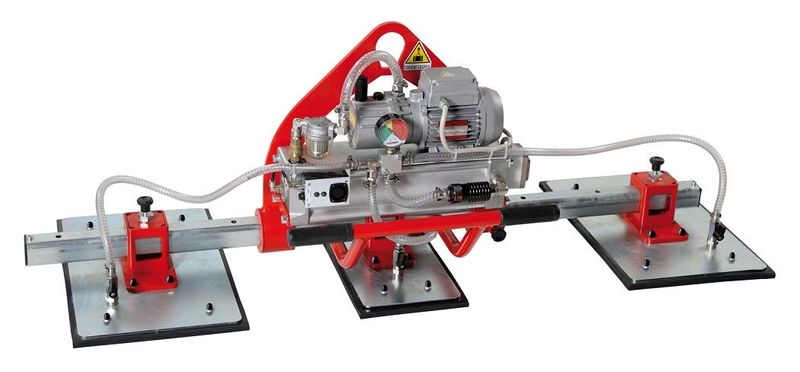

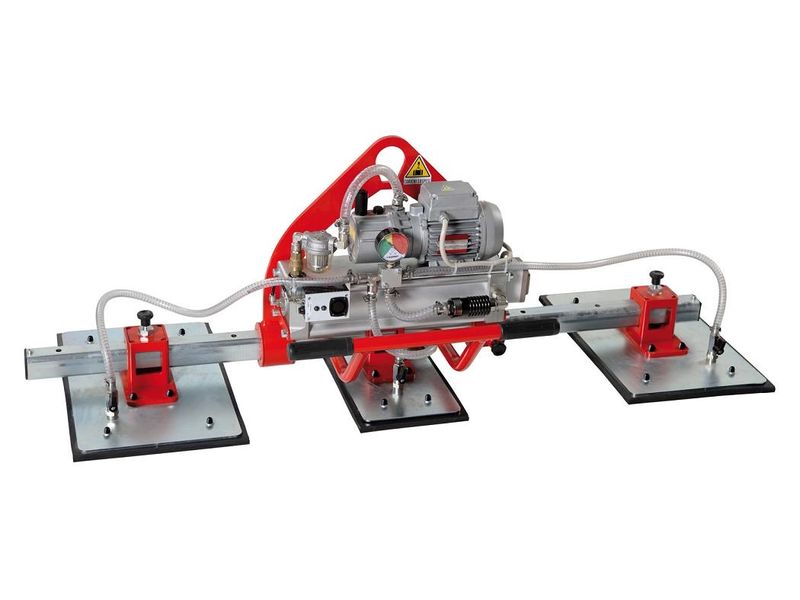

Vacuum lifter with on-board pump for smooth surfacesto the format, on the plate———
600 kg vacuum lifter for glass and plate glass600 kg6 with support wheels——
Vacuum lifter for wood with pneumatic tilting, PN series from 125 to 500 kg125, 250 or 500 kg1 or 2, from 50×20 to 60×30 cm6/8 bar compressed air, consumption 150 l/minpneumatic 0-90°
Self-contained battery vacuum lifter for insulated sandwich panels—rectangular on adjustable bars, on the rib pitchon-board battery, self-contained vacuum unitsite and warehouse, hung from site crane, mobile crane or overhead crane
Vacuum lifter for laying roofing panels on site———hydraulic
All series

The six collections of the vacuum lifter line

CollectionCapacitiesPower supplyList price from
Vacuum lifters for sheet metalfrom 350 to 8,000 kgelectric, hydraulic, batteryon request
Vacuum lifters for glassfrom 600 to 800 kgelectric 220/380 V or 24 V battery€2,800
Vacuum lifters for marble, stone and porcelain250 kg and custom-builtpneumatic, electric, battery€1,400
Vacuum lifters for sandwich panels and woodfrom 200 to 360 kgpneumatic, manual, battery3,000 €
Manual and battery vacuum liftersup to 170 kg (GRABO) and custom-builthand pump, battery200 €
VMS self-priming vacuum liftersfrom 100 to 2,400 kgnone: mechanical vacuum1,500 €

List prices + VAT; capacity and number of pads are defined on the material and the size of the parts.

How to choose

How to choose vacuum lifters

The material

Sheet metal, glass, marble, porcelain stoneware, wood, sandwich panels: each collection has the pads and seals for its surface; polyester and smooth surfaces work with almost all of them.

Power supply

Electric in the workshop, pneumatic where compressed air is available, battery on site and on roofs, self-priming when no power supply at all is wanted.

Movements

Tilting 0-90° to pick up from the bench and bring to vertical, rotation 0-360° to install glazing and window frames, swinging for roof panels.

Format

Single pad for compact parts, several closely spaced pads for thin slabs, long beams for the sheet metal of service centres.

Frequently asked questions

Vacuum lifters: the most common questions

At list price from 200 € + VAT for the hand-pump vacuum lifter to 18,000 € for the 8,000 kg telescopic vacuum lifter; catalogue models range from 2,400 to 7,000 € depending on capacity and equipment.

Demonstration video

Vacuum lifter for handling and lifting sandwich panels

From our YouTube channel: the equipment at work, for real.

Gallery

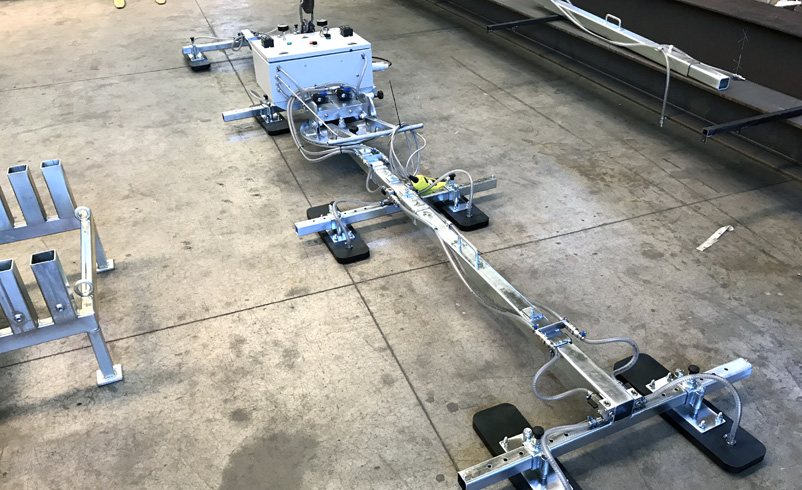

Vacuum lifters — altre foto

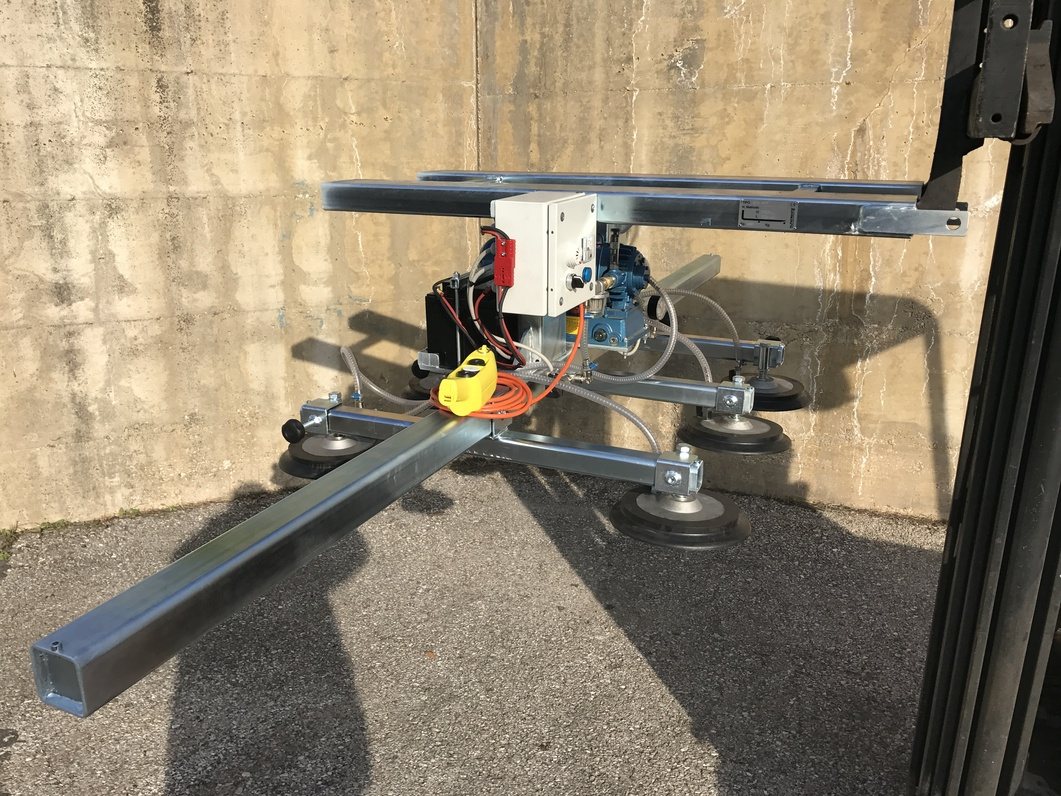

Vacuum lifters — altre foto

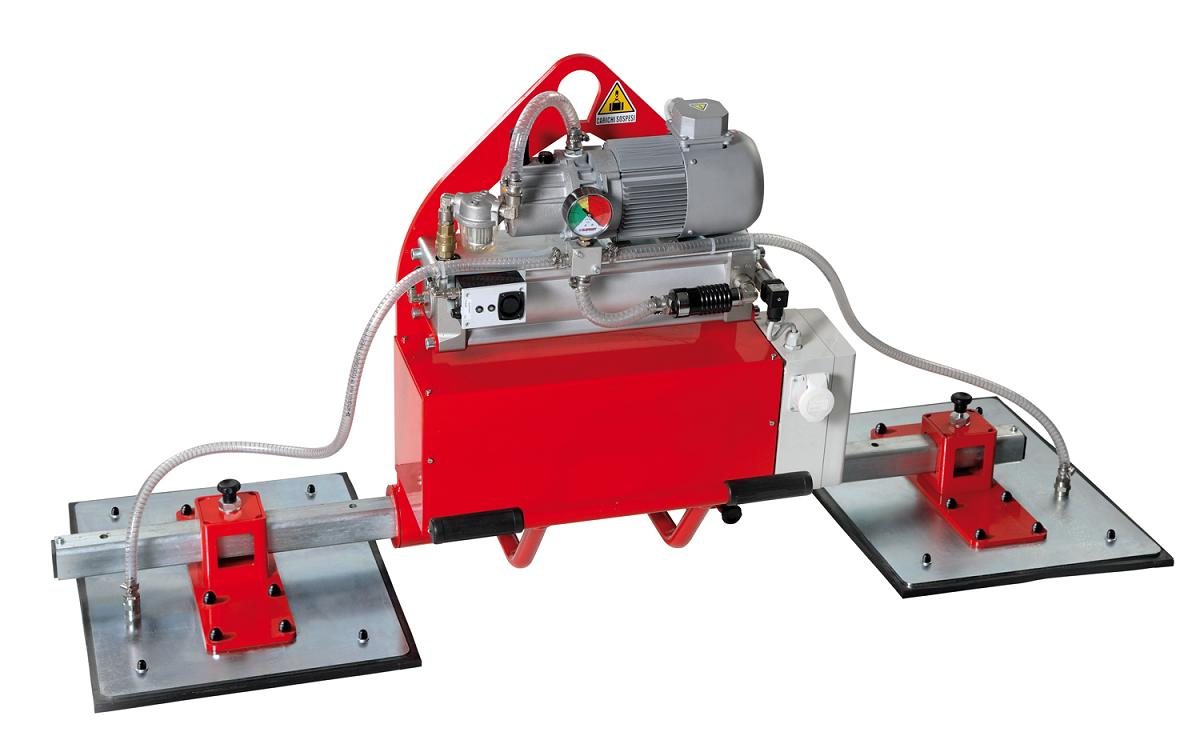

Vacuum lifters — altre foto

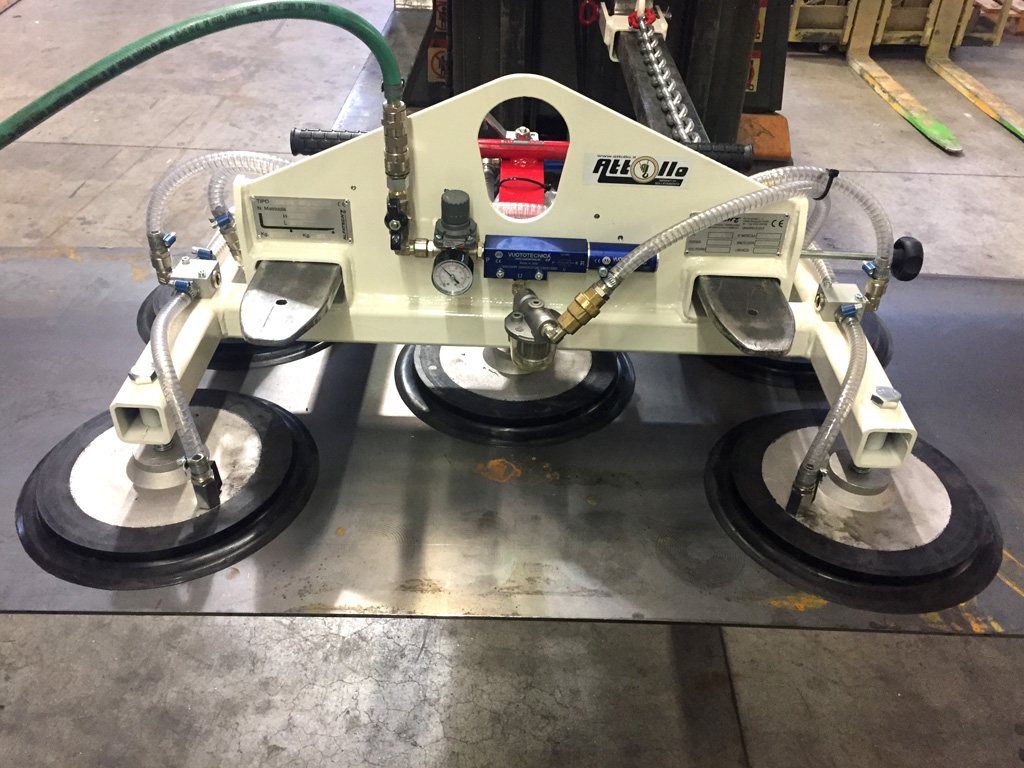

Vacuum lifters — altre foto

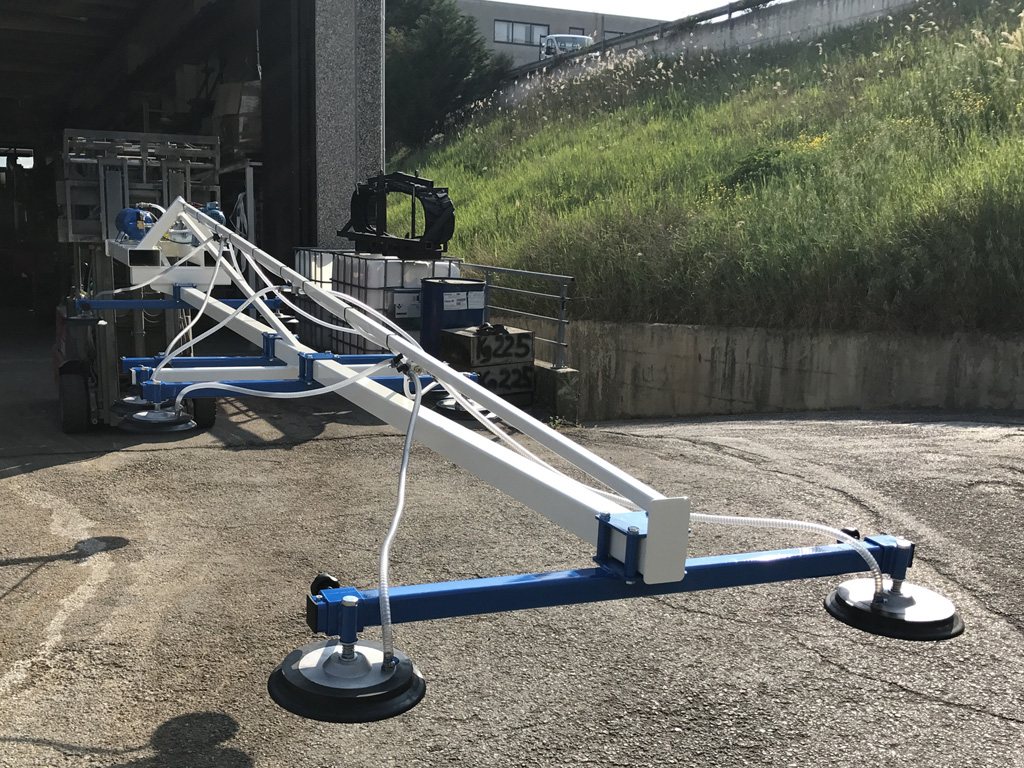

Vacuum lifters — altre foto
