Vacuum lifter for wood with pneumatic tilting, PN series from 125 to 500 kg

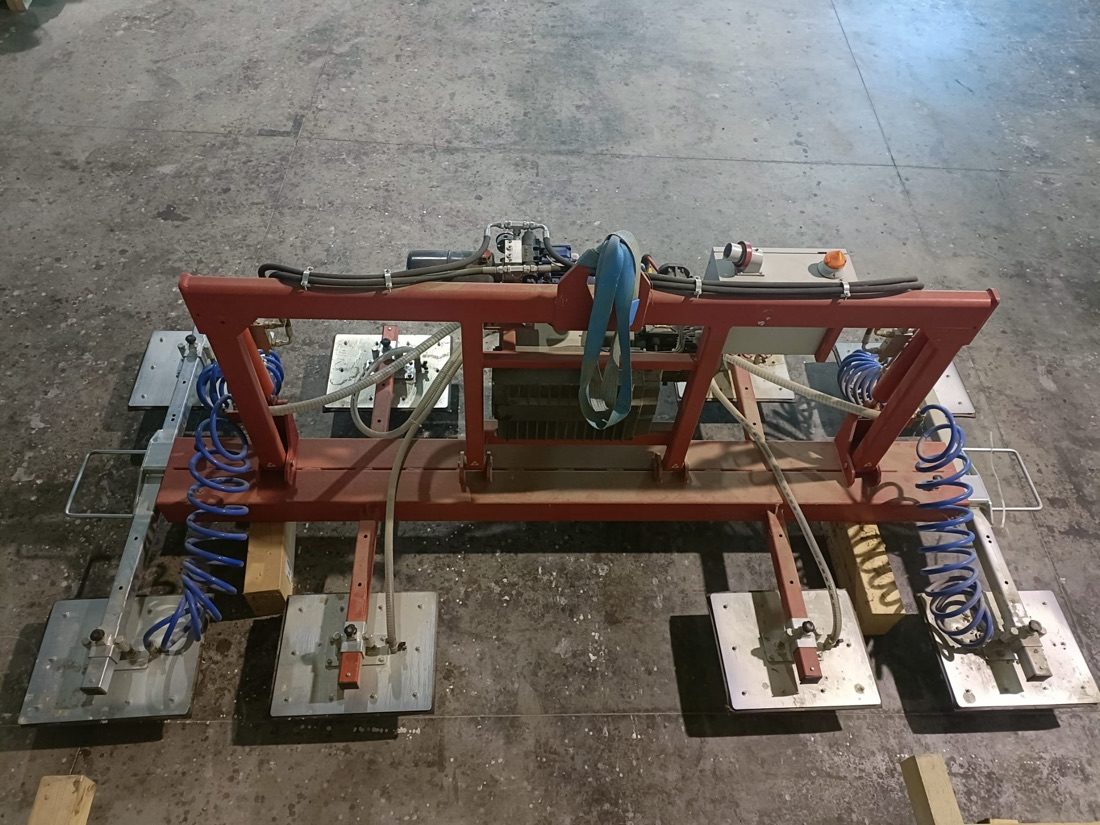

The vacuum lifter for wood with pneumatic tilting picks the panel from the stack horizontally and takes it vertically to the panel saw or the vertical store, without a second operator: PN series with tilting frame, from 125 to 500 kg with one or two pads from 50×20 to 60×30 cm, powered by compressed air with 150 l/min consumption. List price €4,500 + VAT.
The PN series is designed for melamine-faced panels, with a closed surface that holds the vacuum: PN1R with one pad at 125, 250 or 500 kg, PN2R with two pads at 250 or 500 kg. Pneumatic tilting turns the panel from 0 to 90° with a cylinder, and brings it back flat on setting down.
The 6/8 bar compressed-air ejector generates the vacuum with no electrical parts; reservoir and non-return valve maintain the grip if the air is interrupted and the vacuum gauge shows the vacuum before lifting. The eyebolt hooks onto the joinery's jib crane, overhead crane or hoist.
For chipboard, MDF and OSB, breathable surfaces that lose vacuum, the corresponding series is PNT, with dedicated seals and higher air consumption (270-540 l/min); for large, thin panels the 4- and 6-pad versions with Ø 250 mm. The full table is in the sandwich panel and wood collection.
Manual tilting (PN1R/PN2R series) or pneumatic (PN2RP) is chosen on the cycle: by hand for occasional pieces, with a cylinder for the repeated loads of the panel saw. CE certified with capacity plate and declaration of conformity.
| Series | PN1R, PN2R, PN2RP for melamine-faced panels |
| Rated capacity | 125, 250 or 500 kg |
| Pads | 1 or 2, from 50×20 to 60×30 cm |
| Tilt movement | pneumatic 0-90° |
| Power supply | 6/8 bar compressed air, consumption 150 l/min |
| Safety | vacuum reservoir, non-return valve, vacuum gauge |
| Certification | CE 2006/42/EC and EN 13155, capacity plate |
Custom-built: every piece of equipment is custom-built and certified to CE 2006/42. Request a quotation for your exact configuration and capacity.
Vacuum lifter for wood with pneumatic tilting, PN series from 125 to 500 kg — models and capacities
| Model | Capacity KG | Pads | Pads cm | Air consumption l/min |
|---|---|---|---|---|
| PN1R | 125 | 1 | 50X20 | 150 |
| PN1R | 250 | 1 | 60X30 | 150 |
| PN1R | 500 | 1 | 55X40 | 150 |
| PN2R | 250 | 2 | 50X20 | 150 |
| PN2R | 500 | 2 | 50X30 | 150 |
Technical data from the Attollo catalogues. Prices and custom configurations on request.
