Electric vacuum lifter for sheet metal, 3,500 kg, GLA series up to 1,500 kg

The electric vacuum lifter for sheet metal has the pump unit on board and connects to the 220/380 V mains: no compressed air is needed, the grip is ready as soon as the vacuum gauge reaches the working vacuum. The catalogue GLA series runs from 250 to 1,500 kg with 4, 6 or 8 pads of Ø 250 or 300 mm and 380 l/min consumption; the 3,500 kg version is a special execution built to measure for heavy packs and sheets, list price €5,500 + VAT.
Capacity depends on the diameter and number of pads: four Ø 250 mm pads lift 250 kg, eight Ø 300 mm pads lift 1,500 kg. The fixed horizontal frame has the pads adjustable on the arms to follow the sheet format, in a footprint from 600×1,000 mm for the 250 kg 4F to 635×1,695 mm for the 1,000 kg 8F, with 620 mm height.
The electric pump unit works with a vacuum reservoir and non-return valve: if the power fails the grip holds until the load is set down, and the colour-scale vacuum gauge shows before lifting whether the vacuum is sufficient. The central eyebolt hooks onto a jib crane, overhead crane or hoist.

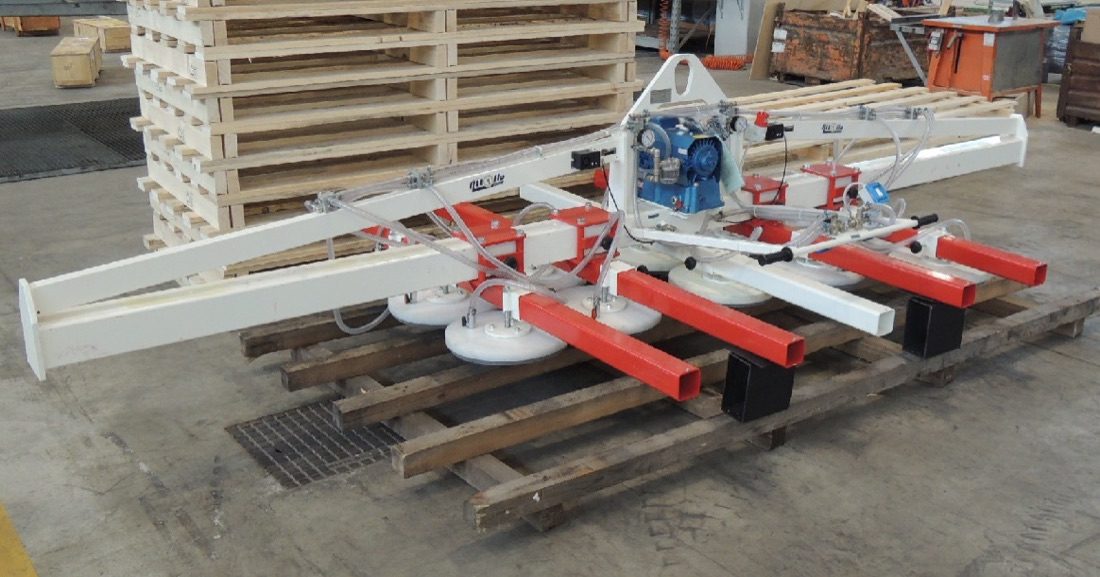

For sheet-metal packs and sheets over 1,500 kg the same electric set-up is sized for the case, like the 3,500 kg version in the photo: more pads, reinforced frame, larger pump unit. Beyond 2,500 kg or 4-6 metres of length you move to fixed and telescopic beams, up to 8,000 kg.
Oiled, painted or perforated sheets require dedicated seals and pad diameters: in the quotation we indicate the model on the basis of material, minimum thickness, maximum format and surface condition. All vacuum lifters are CE certified with capacity plate and declaration of conformity.
| Series | GLA 4F, 6F, 8F with electric pump unit |
| Standard capacity | 250 to 1,500 kg |
| Special version | 3,500 kg, made to measure |
| Pads | 4, 6 or 8 of Ø 250 or 300 mm, adjustable |
| Power supply | electric 220/380 V, consumption 380 l/min |
| Safety | vacuum reservoir, non-return valve, vacuum gauge |
| Dimensions | from 600×1,000 to 635×1,695 mm, height 620 mm |
| Certification | CE 2006/42/EC and EN 13155, capacity plate |
Custom-built: every piece of equipment is custom-built and certified to CE 2006/42. Request a quotation for your exact configuration and capacity.
Electric vacuum lifter for sheet metal, 3,500 kg, GLA series up to 1,500 kg — models and capacities
| Model | Capacity KG | Pads | Pads ø mm | Air consumption l/min |
|---|---|---|---|---|
| GLA4F | 250 | 4 | 250 | 380 |
| GLA4F | 500 | 4 | 300 | 380 |
| GLA6F | 500 | 6 | 250 | 380 |
| GLA6F | 1000 | 6 | 300 | 380 |
| GLA8F | 1000 | 8 | 250 | 380 |
| GLA8F | 1500 | 8 | 300 | 380 |
Technical data from the Attollo catalogues. Prices and custom configurations on request.
Data sheets
Electric vacuum lifter for sheet metal, 3,500 kg, GLA series up to 1,500 kg: the most common questions
No: the catalogue GLA series reaches 1,500 kg. The 3,500 kg lifter is a special execution, built to measure on the format and weight of the customer's packs, list price €5,500 + VAT in the configuration in the photo.
Same capacities and same pads, but the vacuum is made by a compressed-air ejector at 6/8 bar with 130 l/min consumption instead of the electric pump unit. The choice depends on the system available in the department.
Yes: the vacuum reservoir with non-return valve maintains the vacuum for the time needed to set the load down, and the vacuum gauge shows it.
