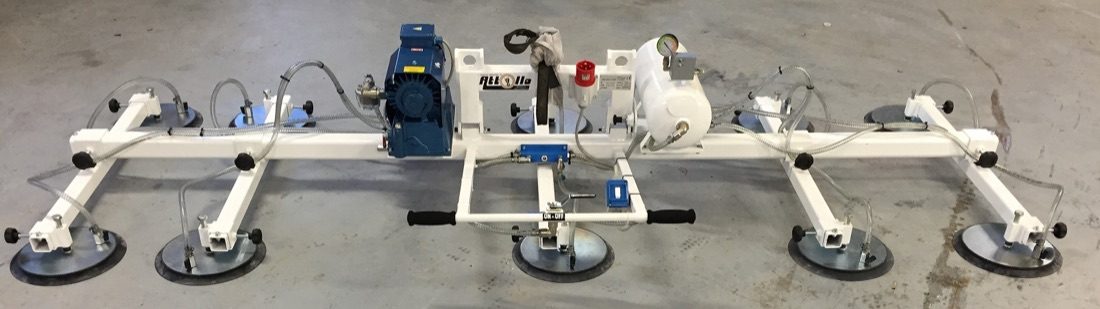

Vacuum lifter for sheet metal with 10 pads, pneumatic VLA series from 250 to 1,500 kg

The 10-pad vacuum lifter for sheet metal spreads the grip over ten points for the long, thin sheets that would deflect with few pads: it is the extension of the pneumatic VLA series, which in the catalogue runs from 250 to 1,500 kg with 4, 6 or 8 pads of Ø 250 or 300 mm, powered by 6/8 bar compressed air with 130 l/min consumption. List price €4,000 + VAT.
The vacuum is generated by a compressed-air ejector: no motor on board, reduced weight and no electrical connection, the simplest solution where the air line reaches the department. The reservoir with non-return valve maintains the grip even if the air is interrupted and the vacuum gauge shows the vacuum before lifting.
Ten pads serve for large-format sheets in thin gauges, in steel, stainless or aluminium: the load is spread over the whole surface and the sheet stays flat during travel, with no dents or slipping. The pads adjust on the arms to follow the format and are positioned on solid areas of perforated or laser-cut sheets.
The standard models in the table cover most cases: VLA 4F at 250 and 500 kg, VLA 6F at 500 and 1,000 kg, VLA 8F at 1,000 and 1,500 kg, with footprints from 600×1,000 mm to 635×1,695 mm and 620 mm height. For sheets longer than 3 metres the solution is the beam, fixed or telescopic.
The central eyebolt hooks onto a jib crane, overhead crane or hoist; the number and diameter of the pads are defined on the minimum and maximum format and the sheet thickness. CE certified with capacity plate and declaration of conformity.
| Series | VLA 4F, 6F, 8F compressed air; 10-pad execution |
| Standard capacity | 250 to 1,500 kg |
| Pads | 4, 6, 8 or 10 of Ø 250 or 300 mm, adjustable |
| Power supply | 6/8 bar compressed air, consumption 130 l/min |
| Safety | vacuum reservoir, non-return valve, vacuum gauge |
| Standard dimensions | from 600×1,000 to 635×1,695 mm, height 620 mm |
| Certification | CE 2006/42/EC and EN 13155, capacity plate |
Custom-built: every piece of equipment is custom-built and certified to CE 2006/42. Request a quotation for your exact configuration and capacity.
Vacuum lifter for sheet metal with 10 pads, pneumatic VLA series from 250 to 1,500 kg — models and capacities
| Model | Capacity KG | Pads | Pads ø mm | Air consumption l/min |
|---|---|---|---|---|
| VLA4F | 250 | 4 | 250 | 130 |
| VLA4F | 500 | 4 | 300 | 130 |
| VLA6F | 500 | 6 | 250 | 130 |
| VLA6F | 1000 | 6 | 300 | 130 |
| VLA8F | 1000 | 8 | 250 | 130 |
| VLA8F | 1500 | 8 | 300 | 130 |
Technical data from the Attollo catalogues. Prices and custom configurations on request.
Data sheets
Vacuum lifter for sheet metal with 10 pads, pneumatic VLA series from 250 to 1,500 kg: the most common questions
For large, thin sheets: more grip points keep the sheet flat and share the load, avoiding deflection and slipping. For the same capacity, 4 or 6 pads are enough on small sheets.
130 l/min at 6/8 bar for the standard VLA models: a normal workshop compressor is enough.
Yes, the GLA series with on-board electric pump unit, same capacities and pads, for departments without compressed air.
