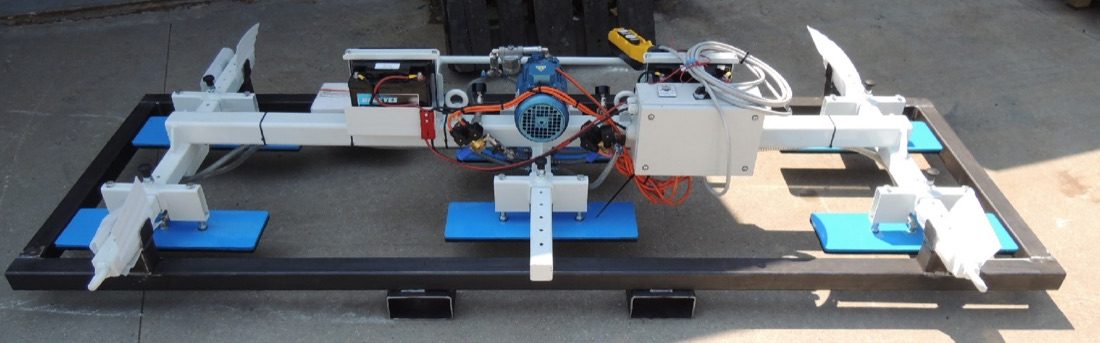

Self-contained battery vacuum lifter for insulated sandwich panels

Self-contained battery vacuum lifter for insulated sandwich panels
Vacuum lifters

The self-contained battery vacuum lifter for insulated sandwich panels works where there is neither power nor compressed air: the battery vacuum unit is on board, the pads on adjustable bars grip the panel on the rib without denting the pre-painted sheet and the lifter, hung from a site crane or mobile crane, takes it from the stack to the roof. List price €8,000 + VAT, CE certified to 2006/42/EC.

The sandwich panel weighs little but is long and delicate: the grip spread over several pads keeps it flat and leaves no marks, and the sheet reaches the roof intact. The adjustable bars adapt the pad spacing to the rib pitch and the panel length.

The battery powers the vacuum pump for the shift; reservoir and non-return valve maintain the grip if the pump stops, the vacuum gauge shows the vacuum and the audible and visual alarm warns if it drops. For working above people, as the standard requires on site, the versions for laying have the independent double vacuum circuit.

Capacity and number of pads are sized on the panel: for formats up to 4-5 metres the four pads of the 200 kg lifter, for long panels the 400 kg vacuum lifting beam with eight pads, for panels delivered stacked upside down the lifter with 180° turnover. All in the sandwich panel and wood collection.

The same battery lifter is used on flat panels, polyethylene plates and sheet metal, with the seals suited to the surface. CE certified with capacity plate and declaration of conformity; radio control and pendant control on request.

Typevacuum lifter for sandwich and insulated panels, self-contained
Power supplyon-board battery, self-contained vacuum unit
Padsrectangular on adjustable bars, on the rib pitch
Safetyvacuum reservoir, non-return valve, vacuum gauge, alarm
Usesite and warehouse, hung from site crane, mobile crane or overhead crane
CertificationCE 2006/42/EC and EN 13155, capacity plate
€ 8.000 + VAT

Custom-built: every piece of equipment is custom-built and certified to CE 2006/42. Request a quotation for your exact configuration and capacity.

Data sheets

Frequently asked questions

Self-contained battery vacuum lifter for insulated sandwich panels: the most common questions

It is sized for a work shift with normal grip and release cycles; the pump only starts to restore the vacuum in the reservoir. Battery charger included.
