Chain hoists: manual from 500 to 20,000 kg, electric from 125 to 2,000 kg
The chain hoist is the lifting unit under every jib crane, suspended system and gantry: manual for occasional lifts, electric with speed control for frequent cycles and fine positioning. List range: manual ARC series hoists from 500 to 20,000 kg, electric RWM W series from 125 to 2,000 kg at 400 V and Kito electric hoists, all with push or electric trolley. List prices from 300 € + VAT.

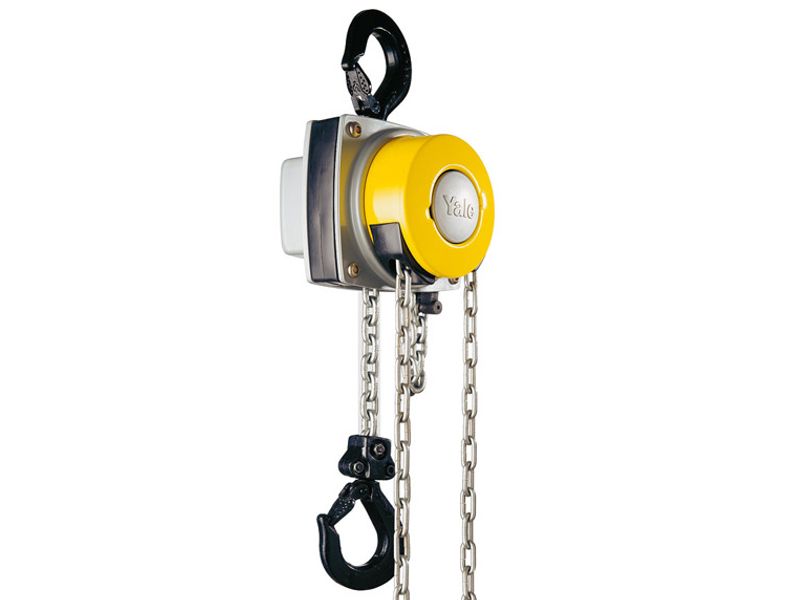

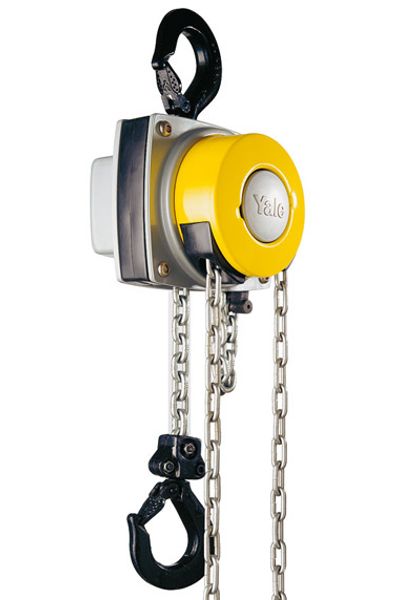

Manual chain hoists, ARC series
Eight models from 500 to 20,000 kg with 1, 2, 4 or 8 chain falls: hand chain pull from 22 to 40 kg, lift per turn with 5 m of hand chain from 178 to 15 mm, weight from 8 to 150 kg with 3 m of load chain.
Electric chain hoists

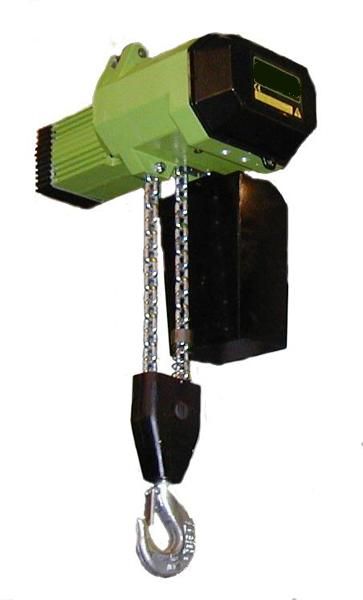

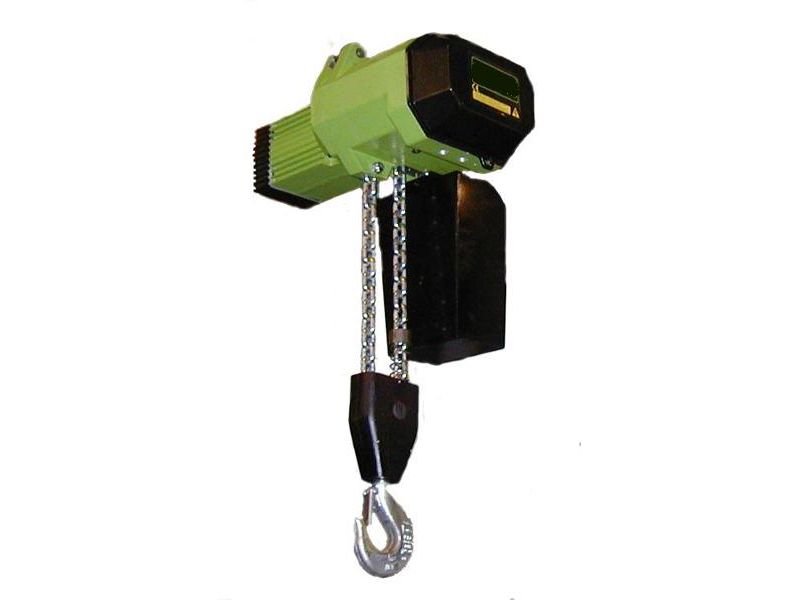

RWM W series at 400 V from 125 to 2,000 kg, single speed (4-16 m/min) or two-speed (1-4 up to 3.5-14 m/min), chain from 4 to 11 mm with 1 or 2 falls; Kito electric hoists for intensive cycles. With push or electric trolley and pendant control.
Chain hoists: models, capacities and dimensions
| Model | Rated capacity | Operation | Speed | Chain |
|---|---|---|---|---|
| Hand chain hoist, ARC series from 500 to 20,000 kg | from 500 to 20,000 kg | manual, hand chain | from 22 to 40 kg | 1 (500-1,500 kg), 2 (2,000-5,000 kg), 4 (10,000 kg), 8 (20,000 kg) |
| RWM W series electric chain hoist, from 125 to 2,000 kg | from 125 to 2,000 kg | — | single speed 4-16 m/min or two-speed 1-4 up to 3.5-14 m/min | from 4 to 11 mm, 1 or 2 falls |

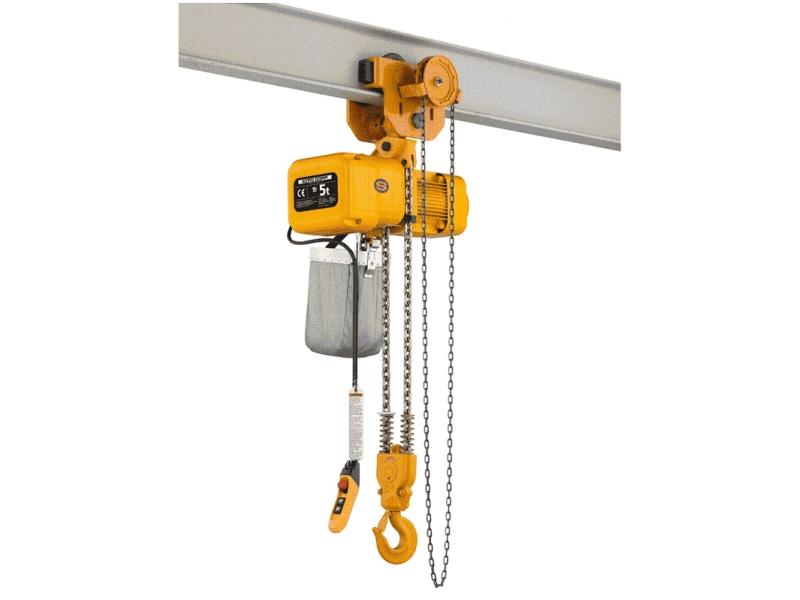

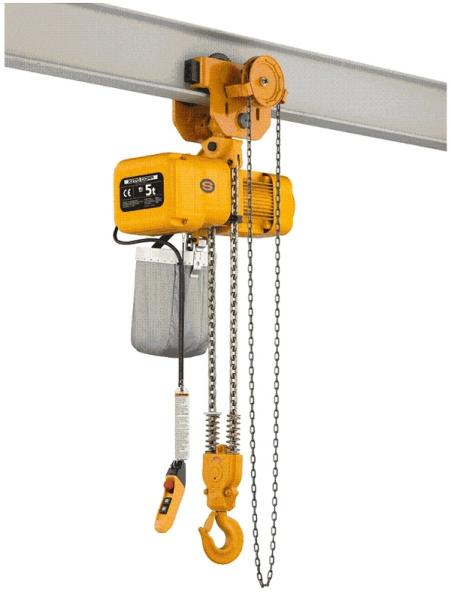

| Kito electric chain hoist | to suit the crane, from a few hundred kilograms to several tonnes | electric, one or two speeds | — | — |
ARC series manual hoists: catalogue data
| Model | Rated capacity | Falls | Hand chain pull | Lift per 5 m of hand chain | Weight with 3 m |
|---|---|---|---|---|---|
| ARC500 | 500 kg | 1 | 22 kg | 178 mm | 8 kg |
| ARC1000 | 1,000 kg | 1 | 30 kg | 120 mm | 9,5 kg |
| ARC1500 | 1,500 kg | 1 | 35 kg | 94 mm | 15,5 kg |
| ARC2000 | 2,000 kg | 2 | 31 kg | 60 mm | 14 kg |
| ARC3000 | 3,000 kg | 2 | 36 kg | 47 mm | 23 kg |
| ARC5000 | 5,000 kg | 2 | 39 kg | 30 mm | 37 kg |
| ARC10000 | 10,000 kg | 4 | 40 kg | 15 mm | 70 kg |
| ARC20000 | 20,000 kg | 8 | 40 kg | 15 mm | 150 kg |
Data from the Attollo catalogue, page 58: weight with 3 m of load chain and 2.5 m of hand chain; for each additional metre of lift height from 1.71 to 19.42 kg. Electric RWM W series on page 59.
How to choose chain hoists
Manual or electric
Few lifts a day and no power supply: manual hoist. Frequent cycles, loads to be positioned precisely or large heights: electric, with one or two speeds.
Capacity and lift height
The capacity is that of the heaviest load plus the lifting attachment; the lift height is the hook travel, which for manual hoists is paid in metres of chain and in weight.
Speed
Fine positioning requires two speeds: the slow one at 1-4 m/min for approaching, the fast one up to 14 m/min for travel. For simple lifts one speed is enough.
Trolley
Push trolley for jib cranes and short monorails; electric for long systems and heavy loads, controlled from the same pendant control.
ATEX zones
Classified areas require ATEX hoists, manual with bronze-plated hooks and stainless steel chain or pneumatic: see the dedicated category.
Chain hoists: the most common questions
List price for the manual ARC series starts at 300 € + VAT, the electric RWM at 1,200 € and the Kito at 1,500 €; capacity, lift height, trolley and speed define the price in the quotation.
Manual from 500 to 20,000 kg; electric RWM W series from 125 to 2,000 kg at 400 V (also single-phase 230 V on request); higher capacities with wire rope hoists.
From 22 kg for the ARC500 to 40 kg for the 10 and 20 tonne models, thanks to the multiple chain falls.
Yes: supplied with CE marking, capacity plate, declaration of conformity and manual; under an Attollo crane they are included in the acceptance test of the system.
