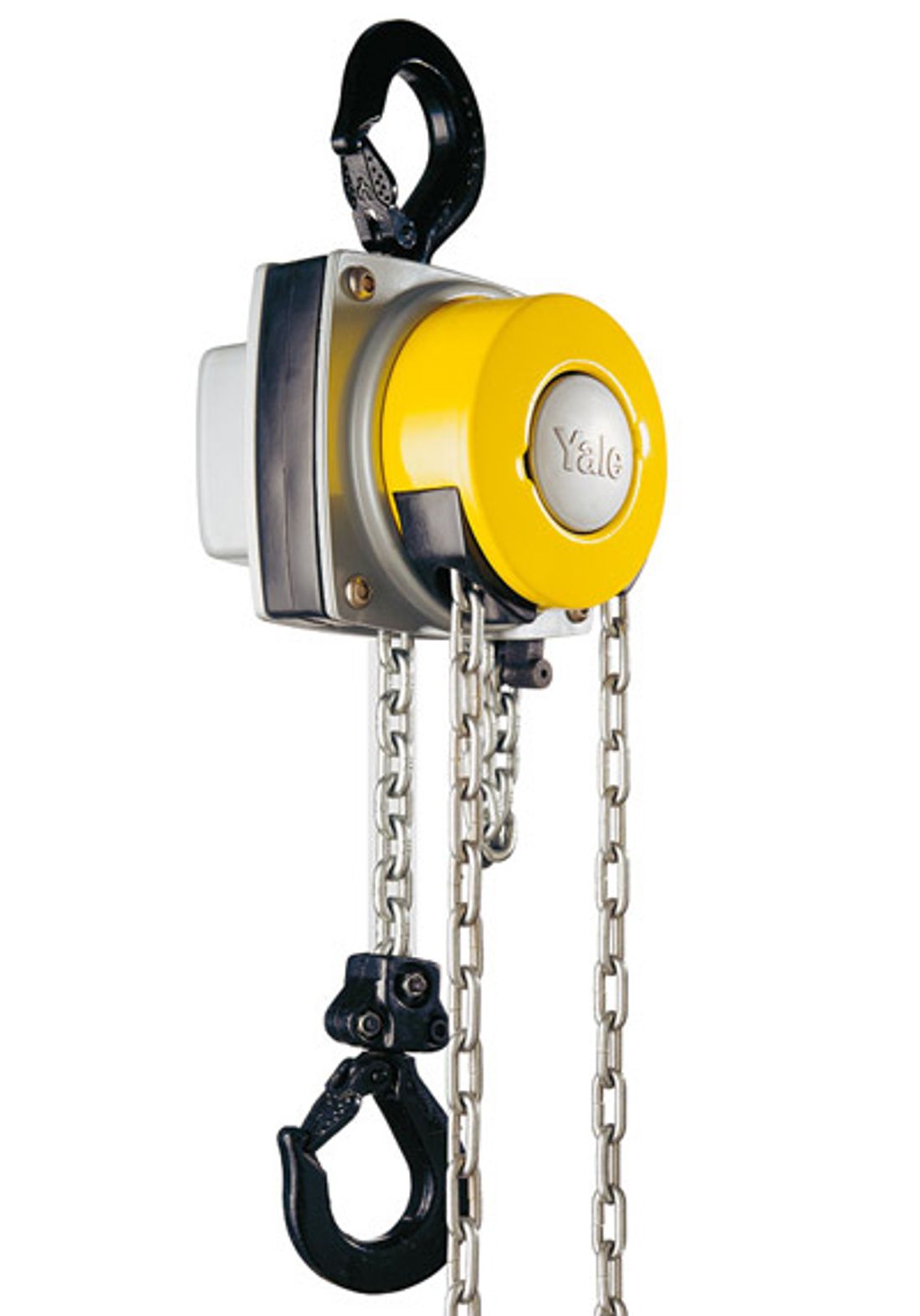

Hand chain hoist, ARC series from 500 to 20,000 kg

The hand chain hoist lifts without power: pulling the hand chain raises the load through the internal gearing, from 500 to 20,000 kg with 1, 2, 4 or 8 load chain falls. The ARC series comes in eight models, with a hand chain pull from 22 to 40 kg, for jib cranes, gantries and monorails with few lifts per day. With push trolley, list price from 300 € + VAT.
Data from the Attollo catalogue (page 58): ARC500, 1000 and 1500 with one chain fall and a pull from 22 to 35 kg; ARC2000, 3000 and 5000 with two falls and a pull from 31 to 39 kg; ARC10000 with four falls and ARC20000 with eight falls at 40 kg. The lift per 5 m of hand chain ranges from 178 mm (ARC500) to 15 mm (10 and 20 t).
The weight with 3 m of load chain and 2.5 m of hand chain ranges from 8 kg (ARC500) to 150 kg (ARC20000); each additional metre of lift height adds 1.71 to 19.42 kg. The lift height is chosen to suit the crane height.
The push trolley runs on the beam of the jib crane, gantry or monorail; the swivel bottom hook with safety latch takes slings, chains and lifting beams.
Supplied with CE marking, capacity plate, declaration of conformity and manual; for frequent cycles the RWM electric hoist, for classified zones the ATEX hand hoist with bronze-plated hooks and stainless steel chain.
| Series | ARC, 8 models |
| Rated capacity | from 500 to 20,000 kg |
| Chain falls | 1 (500-1,500 kg), 2 (2,000-5,000 kg), 4 (10,000 kg), 8 (20,000 kg) |
| Hand chain pull | from 22 to 40 kg |
| Weight | from 8 to 150 kg with 3 m lift height |
| Operation | manual, hand chain |
| Certification | 2006/42/EC, capacity plate and declaration of conformity |
Custom-built: every piece of equipment is custom-built and certified to CE 2006/42. Request a quotation for your exact configuration and capacity.
Data sheets
Hand chain hoist, ARC series from 500 to 20,000 kg: the most common questions
List price from 300 € + VAT for the small models; capacity, lift height and trolley determine the price in the quotation.
From 22 kg on the hand chain for the ARC500 to 40 kg for the 10 and 20 tonne models: the multi-fall reeving keeps the pull constant.
That of the crane: the load chain is supplied in the required length, with the weight increasing for each additional metre.
