RWM W series electric chain hoist, from 125 to 2,000 kg

RWM W series electric chain hoist, from 125 to 2,000 kg
Chain hoists

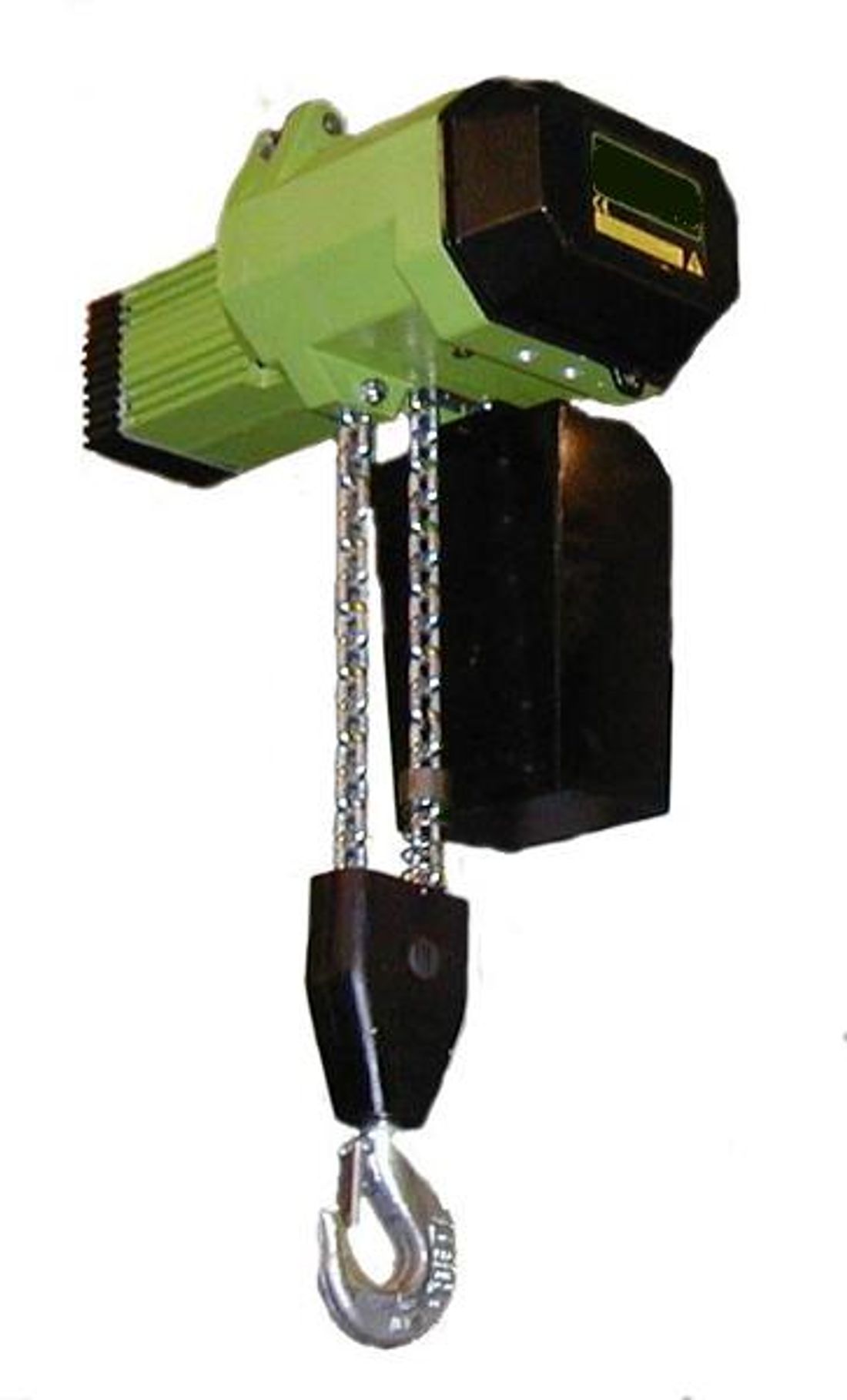

The RWM W series electric chain hoist lifts and positions with the pendant control: from 125 to 2,000 kg at 400 V three-phase, in a single-speed version, from 4 to 16 m/min, or a two-speed version with a slow speed from 1 to 3.5 m/min for easing the load into place. Chain from 4 to 11 mm with one or two falls, motors from 0.2 to 3 kW, push or electric trolley. List price from 1,200 € + VAT.

Data from the Attollo catalogue (page 59): 125 kg with speeds of 5, 8 and 14 m/min or 1-4, 2-8 and 3.5-14 m/min; 250 kg up to 16 m/min; 500 kg from 4 to 14 m/min and 2-8 at two speeds; 1,000 kg from 4 to 8 m/min; 1,500 and 2,000 kg with two chain falls at 4 and 8 m/min or 1-4 and 2-8 m/min.

The chain ranges from 4 mm (125 kg) to 11 mm (1,500-2,000 kg with two falls); power ratings from 0.2 kW to 3 kW. A low-headroom trolley version is available for low factory buildings, as well as a 230 V single-phase version.

The speed control is the advantage of the electric hoist: the slow speed eases the load up to the machine or bench, the fast speed covers the travel; upper and lower limit switches and overload clutch as standard.

Supplied with CE marking, capacity plate, declaration of conformity and manual; push or electric trolley and 2- or 4-button pendant control are chosen in the quotation.

SeriesRWM W, 400 V 50 Hz (230 V single-phase on request)
Rated capacityfrom 125 to 2,000 kg
Speedsingle speed 4-16 m/min or two-speed 1-4 up to 3.5-14 m/min
Chainfrom 4 to 11 mm, 1 or 2 falls
Powerfrom 0.2 to 3 kW
Trolleypush or electric, also low-headroom
Certification2006/42/EC, capacity plate and declaration of conformity
€ 1.200 + VAT

Custom-built: every piece of equipment is custom-built and certified to CE 2006/42. Request a quotation for your exact configuration and capacity.

Data sheets

Frequently asked questions

RWM W series electric chain hoist, from 125 to 2,000 kg: the most common questions

List price from 1,200 € + VAT for the small single-speed models; capacity, speed, lift height and trolley determine the price in the quotation.
