Home / Catalogue / Below-the-hook equipment

Below-the-hook lifting attachments: lifting clamps, chain slings, shackles, hooks, dynamometers and round slings

Everything that attaches to the crane hook: clamps for sheet metal, beams, stones and coils, grade 80 and 100 chain slings, D and bow shackles, swivel hooks and master links, polyester round slings and flat webbing slings, dynamometers from 50 kg to 20 tonnes, ratchet tensioners for lashing. CE-certified attachments with marking and certificate, for overhead travelling cranes, jib cranes and hoists. List prices from €3 + VAT.

Below-the-hook equipment

Chain slings, textile slings and round slings

Grade 80 and 100 chain slings with one, two or four legs from 1,500 to 21,200 kg, NFT polyester round slings from 1,000 to 40,000 kg and polyester flat webbing slings for straight lift or in U configuration.

Below-the-hook equipment

Connecting components

D and bow shackles from 500 to 25,000 kg, swivel hooks with or without bearing and master links from 800 to 22,000 kg for assembling chain slings and textile slings.

Below-the-hook equipment

Weighing and lashing

Digital hook dynamometers from 50 kg to 20 t with display and remote control, and ratchet tensioners for lashing the load on trucks, pallets and containers.

All models

Below-the-hook equipment: models, capacities and dimensions

ModelRated capacityModelsBuildStandard

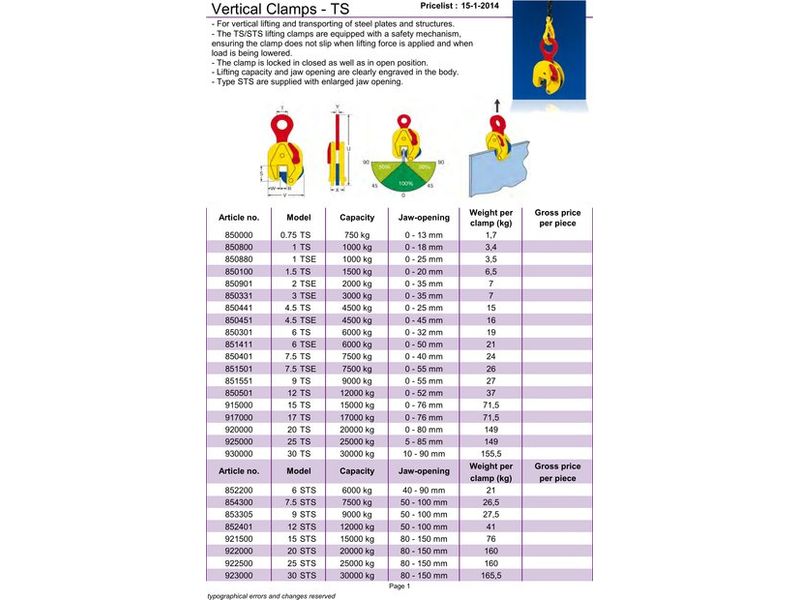

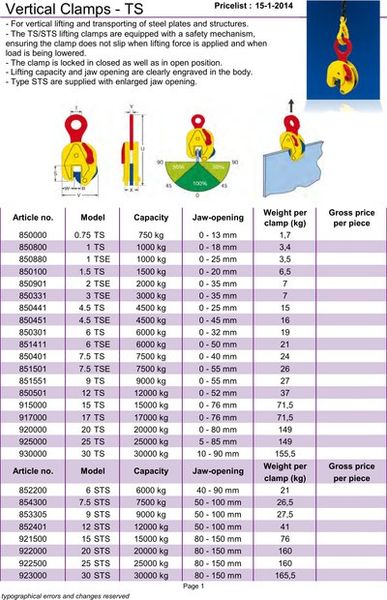

Terrier lifting clamps for sheet metal, beams, round bars and blocksfrom 750 to 12,000 kg and aboveTerrier TS and TSE vertical, horizontal, scissor—2006/42/EC, marking and certificate
Beam clamp for structural beams, from 4.54 to 35 tonnesfrom 4.54 to 35 tF and NS, 7 models—2006/42/EC, marking and certificate

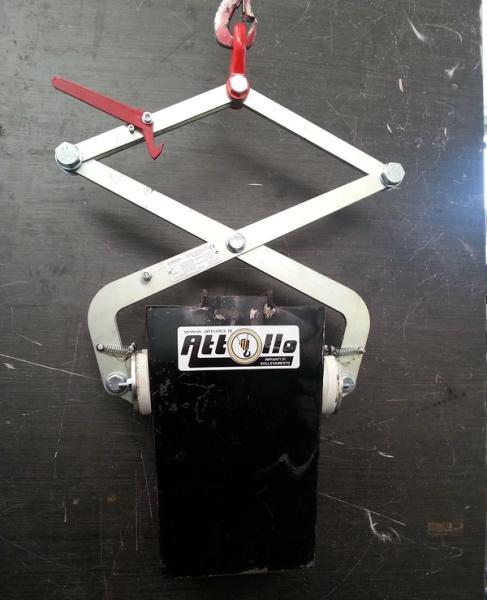

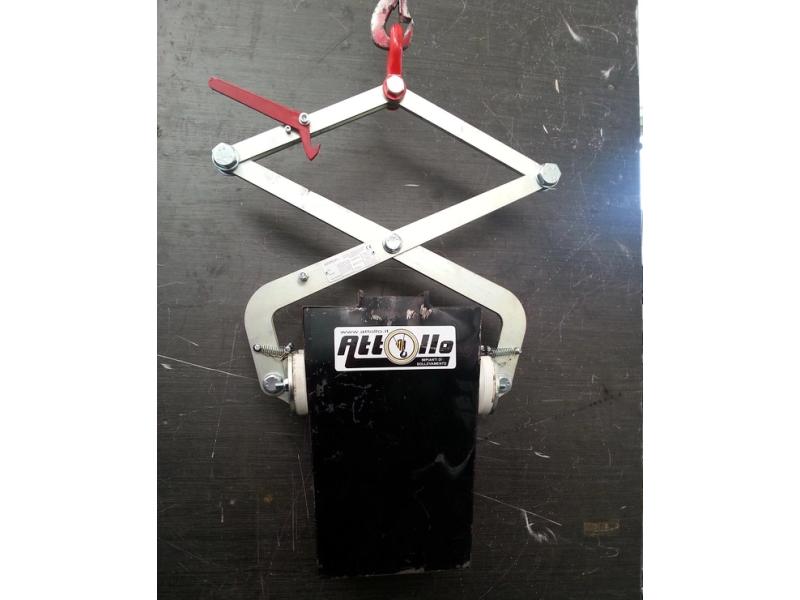

Scissor clamps for slabs and smooth surfaces, from 300 to 1,400 kgfrom 300 to 1,400 kgPM and PMF, 8 modelsscissor, closes under load weight2006/42/EC, marking and certificate

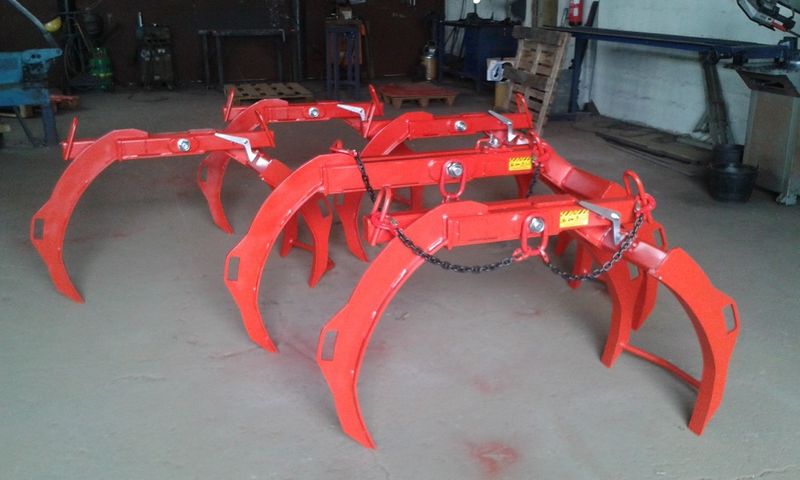

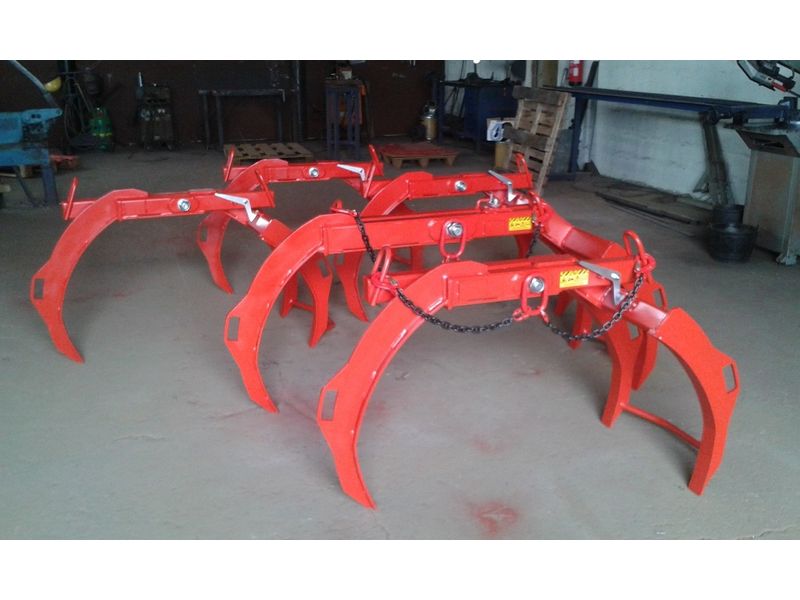

Semi-automatic clamp for stones, irregular boulders and logs, 1,000 and 1,500 kg1,000 or 1,500 kgPM1 (1,000 kg) and PM1,5 (1,500 kg)semi-automatic, closing under weight2006/42/EC, marking and certificate

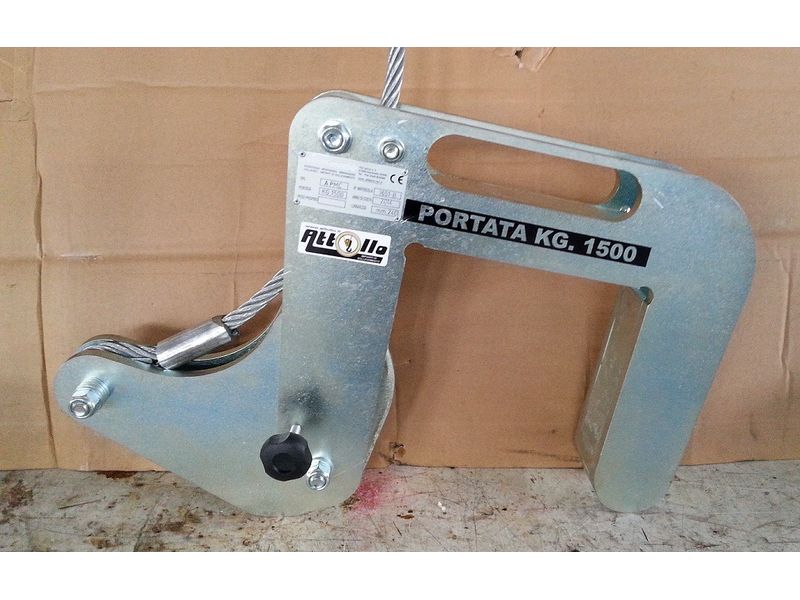

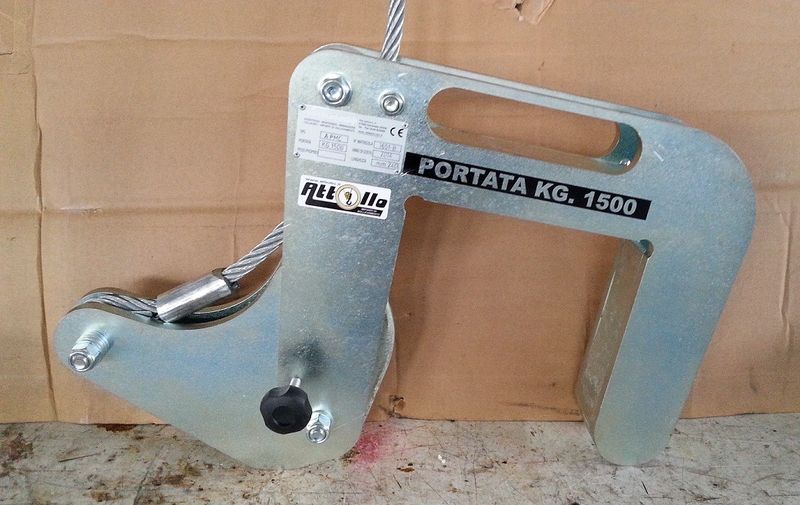

Concrete clamp with toothed jawbased on the element, on the plate—made to measure2006/42/EC, marking and certificate

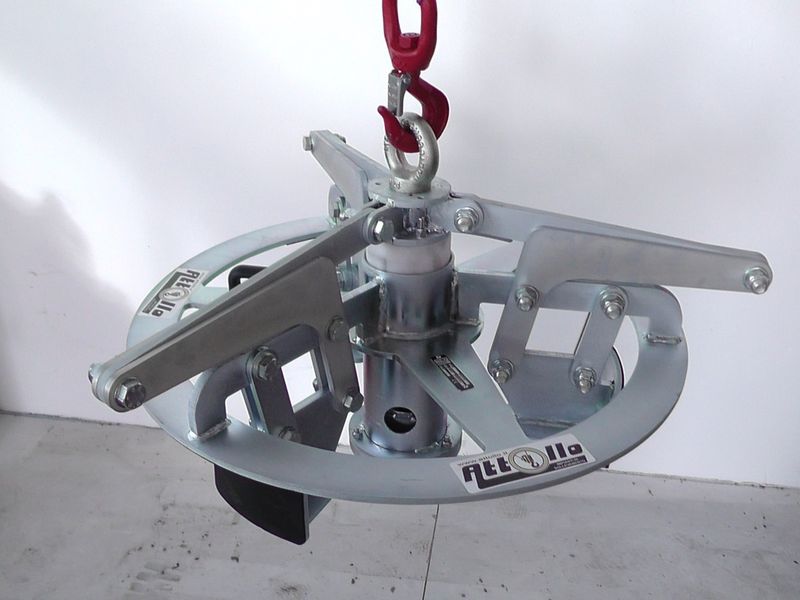

Expanding clamp for copper coils and loads with a borebased on coil weight, on the plate—made to measure2006/42/EC, marking and certificate

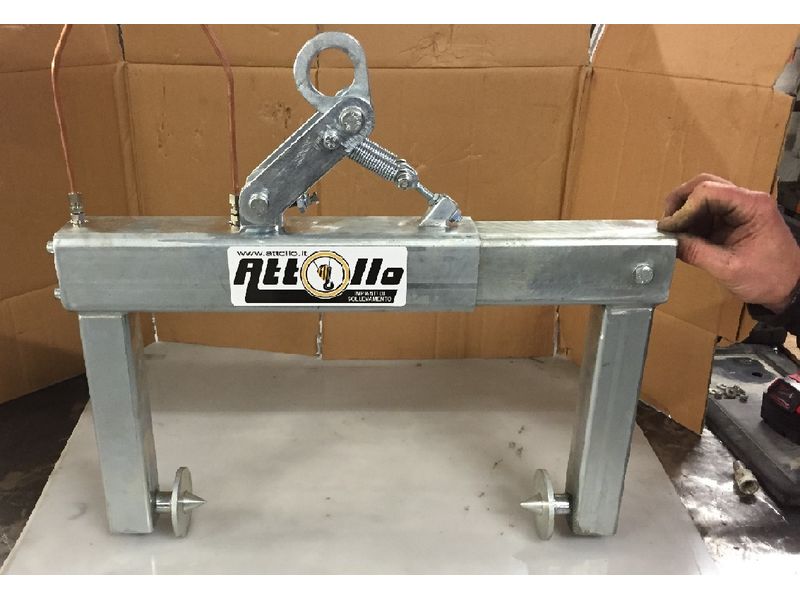

Pneumatic clamp for kerbs, blocks and special loadson the load, on the plate—pneumatic, controlled opening and closing2006/42/EC, marking and certificate

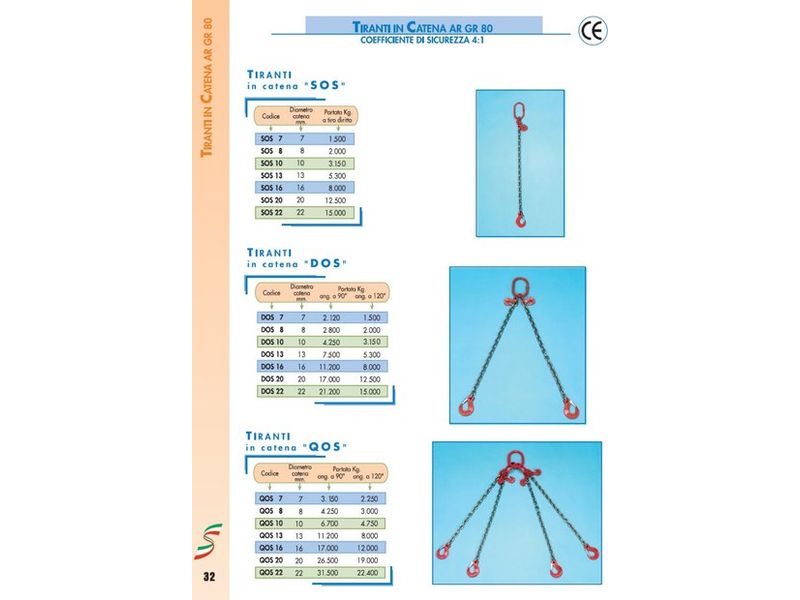

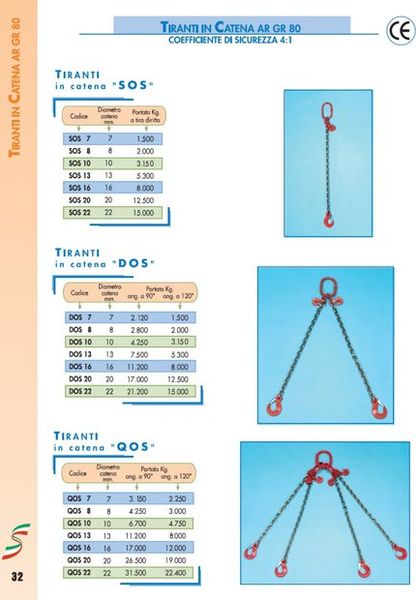

Grade 80 and 100 chain slings with one, two or four legsfrom 1,500 to 21,200 kg depending on legs and angle——EN 818, certificate and plate
NFT continuous polyester round slings, from 1,000 to 40,000 kgfrom 1,000 to 40,000 kg in straight liftNFT, 15 modelspolyester, continuous loopEN 1492-2, factor 7:1
Polyester flat webbing slings for lifting, straight or U-shapedcolour-coded to EN 1492-1, from 0.5 t—polyester, double-ply webbingEN 1492-1, factor 7:1

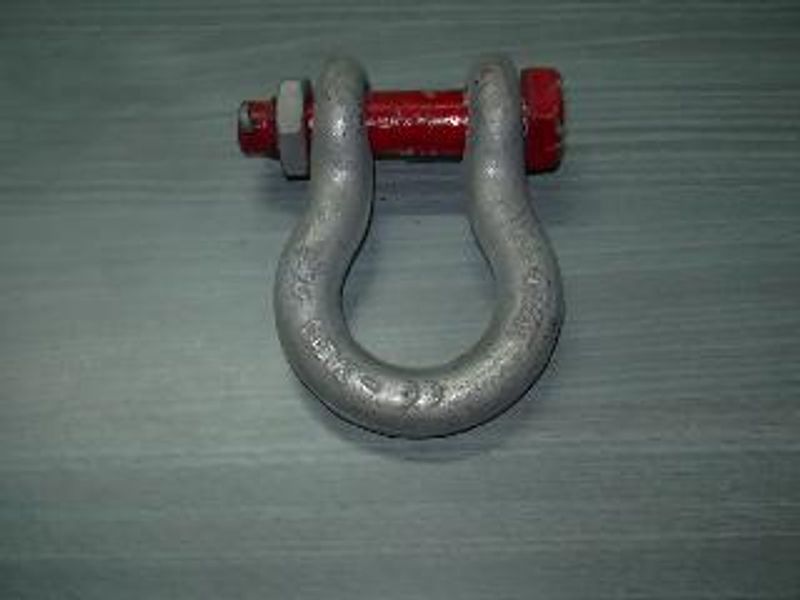

D and bow shackles from 500 to 25,000 kgfrom 500 to 25,000 kg, 16 sizes——2006/42/EC, marking and certificate

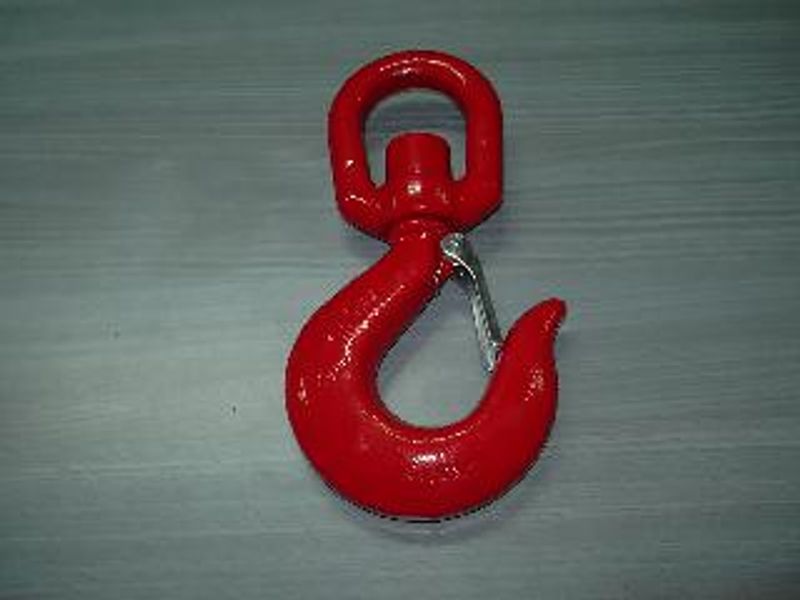

Swivel hooks and master links for slings, from 800 to 22,000 kgfrom 800 to 15,000 kg (C) and from 1,250 to 22,000 kg (A)320C/322C and 320A/322Aswivel, with or without ball bearing, safety latch2006/42/EC, marking and certificate
Digital hook crane scales, from 50 kg to 20 tonnesfrom 50 kg to 20,000 kgISDTEP (50-300 kg) and ISDTEN (500 kg - 20 t)—CE, certificate of conformity
Ratchet lashing straps for load securing———EN 12195-2
All series

Below-the-hook families at list price

AccessoryCapacitiesModels at list priceList price from
Terrier clampsfrom 750 to 12,000 kg and aboveTS and TSE vertical, horizontal, scissoron request
Beam clampfrom 4.54 to 35 tF-5, F-15, F-25, F-35 and NS€4,800
Scissor clamps for smooth surfacesfrom 300 to 1,400 kgPM-01…PM-06, PMF-08, PMF-09€500
Stone and boulder grab1,000 and 1,500 kgPM1, PM1,5€600
Grade 80/100 chain slingsfrom 1,500 to 21,200 kgSOS and DOS from 7 to 22 mm€40
NFT polyester round slingsfrom 1,000 to 40,000 kgNFT 1 … NFT 40€5
Bow and omega shacklesfrom 500 to 25,000 kg16 sizes€4
Swivel hooks and master ringsfrom 800 to 22,000 kg320/322€15
Digital dynamometersfrom 50 kg to 20 tISDTEP, ISDTEN€400

List prices + VAT for the smallest models; full tables in the data sheets. All attachments are CE marked and certified.

How to choose

How to choose below-the-hook equipment

The type of grip

Sheet metal and beams are taken with clamps, coils with the expanding clamp, boulders and logs with the semi-automatic grab; loads with eyebolts with chain slings; delicate loads with polyester flat webbing slings and round slings.

The lifting angle

The capacity of chain slings and round slings depends on the angle: at 90° between the legs it drops, at 120° it drops further; the tables in the data sheets give the values for each configuration.

Grade 80 or 100

Grade 100 carries more for the same chain diameter and weighs less; grade 80 is the standard.

Weighing the load

When the weight is unknown, the hook dynamometer measures it in suspension, with a division from 10 g to 5 kg depending on the model.

Periodic inspections

Lifting accessories must be inspected periodically: clamps, chain slings and shackles are delivered with a certificate and checked at set intervals.

Frequently asked questions

Below-the-hook equipment: the most common questions

At list price, flat webbing slings start from €3 + VAT, shackles and ratchets from €4, round slings from €5, hooks from €15, chain slings from €40, clamps from €500, dynamometers from €400; the price depends on capacity and size.

Demonstration video

Clamp for a 25-tonne beam

From our YouTube channel: the equipment at work, for real.

Gallery

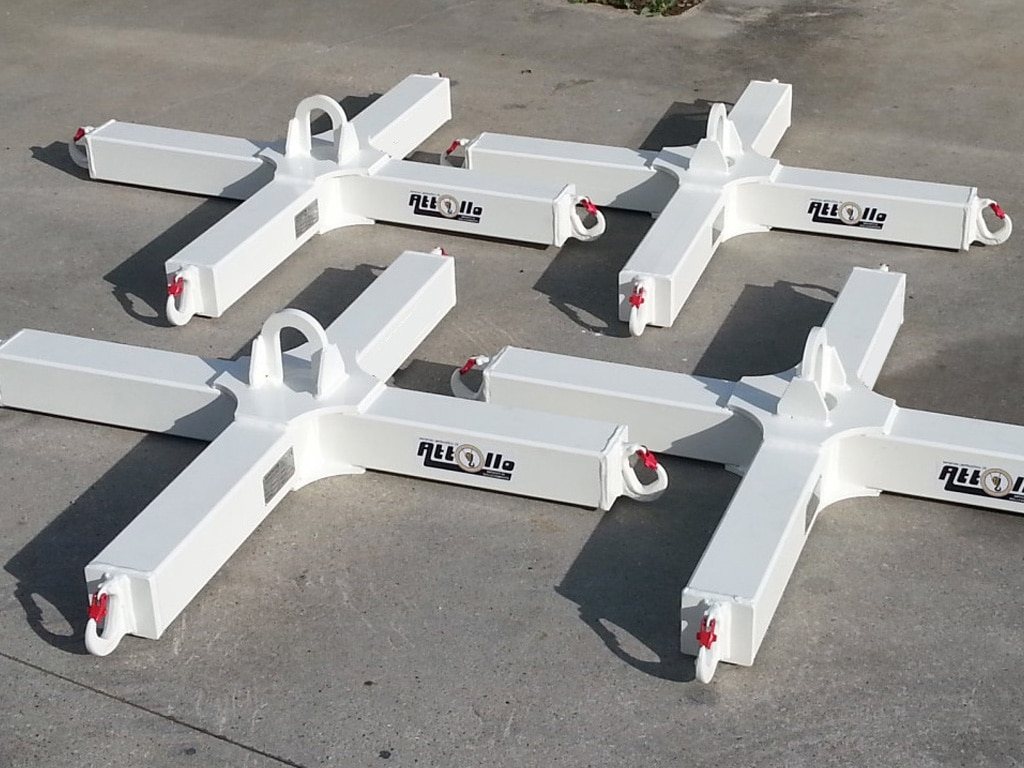

Below-the-hook equipment — altre foto
