Terrier lifting clamps for sheet metal, beams, round bars and blocks

Terrier clamps are the professional clamps for sheet metal, beams, round bars and blocks: the vertical TS and TSE series from 750 to 12,000 kg and above, with jaw opening from 13 to 55 mm and a weight of 1.7 to 37 kg per clamp, the horizontal clamps for carrying sheet metal flat and the scissor clamps for blocks. CE certified, quoted by model.

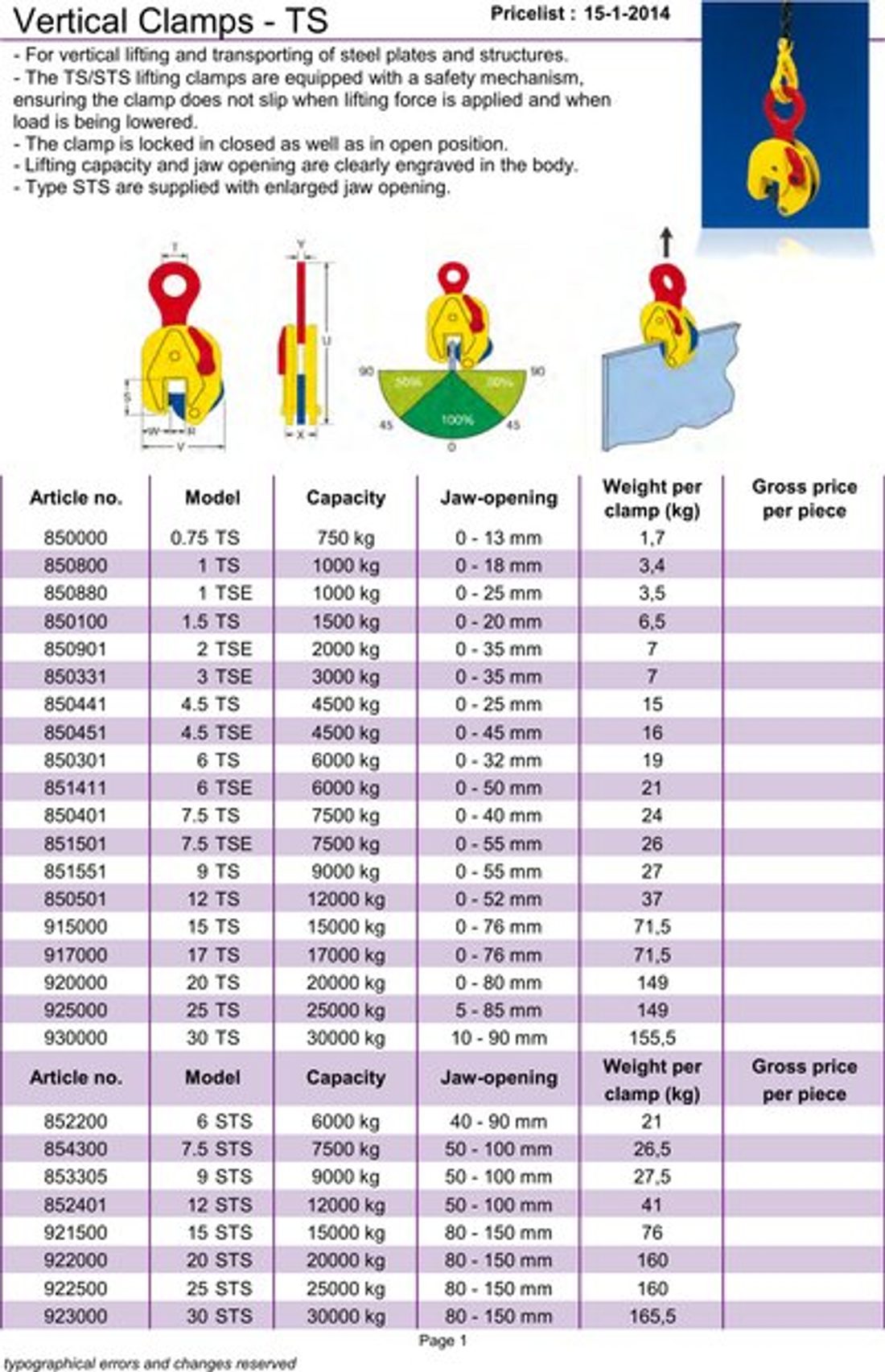

The table on the data sheet lists the main models: 0.75 TS at 750 kg (0-13 mm, 1.7 kg), 1 TS and 1 TSE at 1,000 kg (18 and 25 mm), 1.5 TS, 2 TSE and 3 TSE (35 mm, 7 kg), 4.5 TS and TSE (25 and 45 mm), 6 TS and TSE, 7.5 TS and TSE, 9 TS (55 mm, 27 kg), 12 TS at 12,000 kg (52 mm, 37 kg); the data sheet gives the full list of the 84 items.
The vertical clamp lifts the sheet from the stack and brings it upright; the cam mechanism tightens under the weight and the safety lock keeps the grip even at zero load. The TSE has an enlarged opening for large thicknesses.
Horizontal clamps are used in pairs or in sets of four under the lifting beam to carry sheet metal flat; scissor clamps for blocks and parts with parallel faces.
CE certified with capacity plate; spare parts (cams and pins) available; periodic inspection of the toothed surfaces.
| Series | Terrier TS and TSE vertical, horizontal, scissor |
| Rated capacity | from 750 to 12,000 kg and above |
| Jaw opening | from 0-13 to 0-55 mm |
| Weight per clamp | from 1.7 to 37 kg |
| Use | sheet metal, beams, round bars, blocks |
| Certification | 2006/42/EC, marking and certificate |
Custom-built: every piece of equipment is custom-built and certified to CE 2006/42. Request a quotation for your exact configuration and capacity.
Terrier lifting clamps for sheet metal, beams, round bars and blocks — models and capacities
| Item | Model | Rated capacity | Jaw opening | Weight per clamp (kg) |
|---|---|---|---|---|
| 850000 | 0.75 TS | 750 kg | 0 - 13 mm | 1,7 |
| 850800 | 1 TS | 1000 kg | 0 - 18 mm | 3,4 |
| 850880 | 1 TSE | 1000 kg | 0 - 25 mm | 3,5 |
| 850100 | 1.5 TS | 1500 kg | 0 - 20 mm | 6,5 |
| 850901 | 2 TSE | 2000 kg | 0 - 35 mm | 7 |
| 850331 | 3 TSE | 3000 kg | 0 - 35 mm | 7 |
| 850441 | 4.5 TS | 4500 kg | 0 - 25 mm | 15 |
| 850451 | 4.5 TSE | 4500 kg | 0 - 45 mm | 16 |
| 850301 | 6 TS | 6000 kg | 0 - 32 mm | 19 |
| 851411 | 6 TSE | 6000 kg | 0 - 50 mm | 21 |
| 850401 | 7.5 TS | 7500 kg | 0 - 40 mm | 24 |
| 851501 | 7.5 TSE | 7500 kg | 0 - 55 mm | 26 |
| 851551 | 9 TS | 9000 kg | 0 - 55 mm | 27 |
| 850501 | 12 TS | 12000 kg | 0 - 52 mm | 37 |
| 915000 | 15 TS | 15000 kg | 0 - 76 mm | 71,5 |
| 917000 | 17 TS | 17000 kg | 0 - 76 mm | 71,5 |
| 920000 | 20 TS | 20000 kg | 0 - 80 mm | 149 |
| 925000 | 25 TS | 25000 kg | 5 - 85 mm | 149 |
| 930000 | 30 TS | 30000 kg | 10 - 90 mm | 155,5 |
| 852200 | 6 STS | 6000 kg | 40 - 90 mm | 21 |
| 854300 | 7.5 STS | 7500 kg | 50 - 100 mm | 26,5 |
| 853305 | 9 STS | 9000 kg | 50 - 100 mm | 27,5 |
| 852401 | 12 STS | 12000 kg | 50 - 100 mm | 41 |
| 921500 | 15 STS | 15000 kg | 80 - 150 mm | 76 |
| 922000 | 20 STS | 20000 kg | 80 - 150 mm | 160 |
| 922500 | 25 STS | 25000 kg | 80 - 150 mm | 160 |
| 923000 | 30 STS | 30000 kg | 80 - 150 mm | 165,5 |
| 850010 | 0.75 TSMP | 750 kg | 0 - 13 mm | 2 |
| 850810 | 1 TSMP | 1000 kg | 0 - 18 mm | 4,2 |
| 850818 | 1 TSEMP | 1000 kg | 0 - 25 mm | 4,5 |
| 850110 | 1.5 TSMP | 1500 kg | 0 - 20 mm | 7,9 |
| 850911 | 2 TSEMP | 2000 kg | 0 - 35 mm | 8 |
| 850221 | 3 TSEMP | 3000 kg | 0 - 35 mm | 8 |
| 850211 | 4.5 TSMP | 4500 kg | 0 - 25 mm | 17,8 |
| 851401 | 4.5 TSEMP | 4500 kg | 0 - 45 mm | 19 |
| 850311 | 6 TSMP | 6000 kg | 0 - 32 mm | 24 |
| 851511 | 6 TSEMP | 6000 kg | 0 - 50 mm | 25,5 |
| 850411 | 7.5 TSMP | 7500 kg | 0 - 40 mm | 29 |
| 851510 | 7.5 TSEMP | 7500 kg | 0 - 55 mm | 30,5 |
| 851515 | 9 TSMP | 9000 kg | 0 - 55 mm | 31 |
| 852210 | 6 STSMP | 6000 kg | 40 - 90 mm | 26 |
| 854310 | 7.5 STSMP | 7500 kg | 50 - 100 mm | 31,5 |
| 853315 | 9 STSMP | 9000 kg | 50 - 100 mm | 32,5 |
| 855000 | 0.75 TSU | 750 kg | 0 - 13 mm | 1,8 |
| 865100 | 1 TSU | 1000 kg | 0 - 18 mm | 3,7 |
| 865800 | 1 TSEU | 1000 kg | 0 - 25 mm | 3,8 |
| 855100 | 1.5 TSU | 1500 kg | 0 - 20 mm | 7,2 |
| 855601 | 2 TSEU | 2000 kg | 0 - 35 mm | 8 |
| 865331 | 3 TSEU | 3000 kg | 0 - 35 mm | 8 |
| 865441 | 4.5 TSU | 4500 kg | 0 - 25 mm | 16 |
| 865301 | 4.5 TSEU | 4500 kg | 0 - 45 mm | 16,5 |
| 865401 | 6 TSU | 6000 kg | 0 - 32 mm | 22 |
| 865411 | 6 TSEU | 6000 kg | 0 - 50 mm | 24 |
| 865601 | 7.5 TSU | 7500 kg | 0 - 40 mm | 27 |
| 855400 | 7.5 TSEU | 7500 kg | 0 - 55 mm | 28 |
| 855405 | 9 TSU | 9000 kg | 0 - 55 mm | 29 |
| 865901 | 12 TSU | 12000 kg | 0 - 52 mm | 41 |
| 955150 | 15 TSU | 15000 kg | 0 - 76 mm | 73 |
| 955170 | 17 TSU | 17000 kg | 0 - 76 mm | 74 |
| 955200 | 20 TSU | 20000 kg | 0 - 80 mm | 160 |
| 955250 | 25 TSU | 25000 kg | 5 - 85 mm | 160 |
| 955300 | 30 TSU | 30000 kg | 10 - 90 mm | 167 |
| 856200 | 6 STSU | 6000 kg | 40 - 90 mm | 24 |
| 856300 | 7.5 STSU | 7500 kg | 50 - 100 mm | 30 |
| 855305 | 9 STSU | 9000 kg | 50 - 100 mm | 31 |
| 856401 | 12 STSU | 12000 kg | 50 - 100 mm | 45 |
| 966150 | 15 STSU | 15000 kg | 80 - 150 mm | 78 |
| 966200 | 20 STSU | 20000 kg | 80 - 150 mm | 171 |
| 966250 | 25 STSU | 25000 kg | 80 - 150 mm | 171 |
| 966300 | 30 STSU | 30000 kg | 80 - 150 mm | 176,5 |
| 863300 | 3 TSEU-A | 3000 kg | 0 - 95 mm | 10 |
| 862101 | 2 TSU-R | 2000 kg | 0 - 20 mm | 7 |
| 860110 | 1 TSHP | 1000 kg | 0 - 80 mm | 19 |
| 860111 | 1.5 TSHP | 1500 kg | 0 - 80 mm | 19 |
| 860155 | 1.5 TSHPA | 1500 kg | 0 - 155 mm | 18 |
| 860300 | 3 TSHPU | 3000 kg | 0 - 30 mm | 8 |
| 860500 | 5 TSHPU | 5000 kg | 0 - 45 mm | 17,3 |
| 862035 | 0.5 TNMK | 500 kg | 1 - 20 mm | 6 |
| 862135 | 0.5 STNMK | 500 kg | 17 - 37 mm | 6 |
| 862010 | 1 TNMK | 1000 kg | 1 - 30 mm | 6,5 |
| 862037 | 1.5 TNMK | 1500 kg | 1 - 40 mm | 6,5 |
| 862038 | 2 TNMK | 2000 kg | 1 - 50 mm | 15 |
| 862039 | 3 TNMK | 3000 kg | 1 - 60 mm | 15,5 |
| 862005 | 0.5 TNMKA | 500 kg | 1 - 180 mm | 10 |
Technical data from the Attollo catalogues. Prices and custom configurations on request.
Data sheets
Terrier lifting clamps for sheet metal, beams, round bars and blocks: the most common questions
Quoted by model: tell us the thickness and weight of the sheets and we will send the price within the day.
TSE has an enlarged opening: for large thicknesses at the same capacity.
Yes: the safety lock keeps pressure on the sheet even when the hook is slack.
