NFT continuous polyester round slings, from 1,000 to 40,000 kg

Continuous polyester round slings wrap the load without marking it and adapt to any shape: the NFT series ranges from 1,000 kg (purple) to 40,000 kg, with the colour identifying the capacity and the label stating the working loads for each configuration: straight lift, basket, 45°, 90° and choker. CE certified, list price from 5 € + VAT.
The data sheet table lists the 15 models: NFT 1 purple, 1,000 kg in straight lift, 2,000 in basket, 1,800 at 45°, 1,400 at 90° and 800 in choker; NFT 5 red, 5,000 kg; NFT 10 orange, 10,000 kg, up to NFT 40, 40,000 kg in straight lift and 80,000 in basket.
The choker capacity is 80% of the straight lift, the basket capacity double, and at 45° and 90° between the legs 1.8 and 1.4 times respectively: the sewn-in label shows all values and the date of manufacture.
Lengths are chosen according to the load; round slings are used choked for bundles and tubes, in basket for crates and long parts, and in pairs under the lifting beam. Sharp edges require protective sleeves.
CE certified to EN 1492-2 with a 7:1 safety factor; fast delivery for the most common capacities.
| Series | NFT, 15 models |
| Rated capacity | from 1,000 to 40,000 kg in straight lift |
| Models | NFT 1 … NFT 40, colour-coded by capacity |
| Configurations | straight, basket, 45°, 90°, choker (on the label) |
| Material | polyester, continuous loop |
| Standard | EN 1492-2, factor 7:1 |
| Certification | 2006/42/EC, marking and certificate |
Custom-built: every piece of equipment is custom-built and certified to CE 2006/42. Request a quotation for your exact configuration and capacity.
NFT continuous polyester round slings, from 1,000 to 40,000 kg — models and capacities

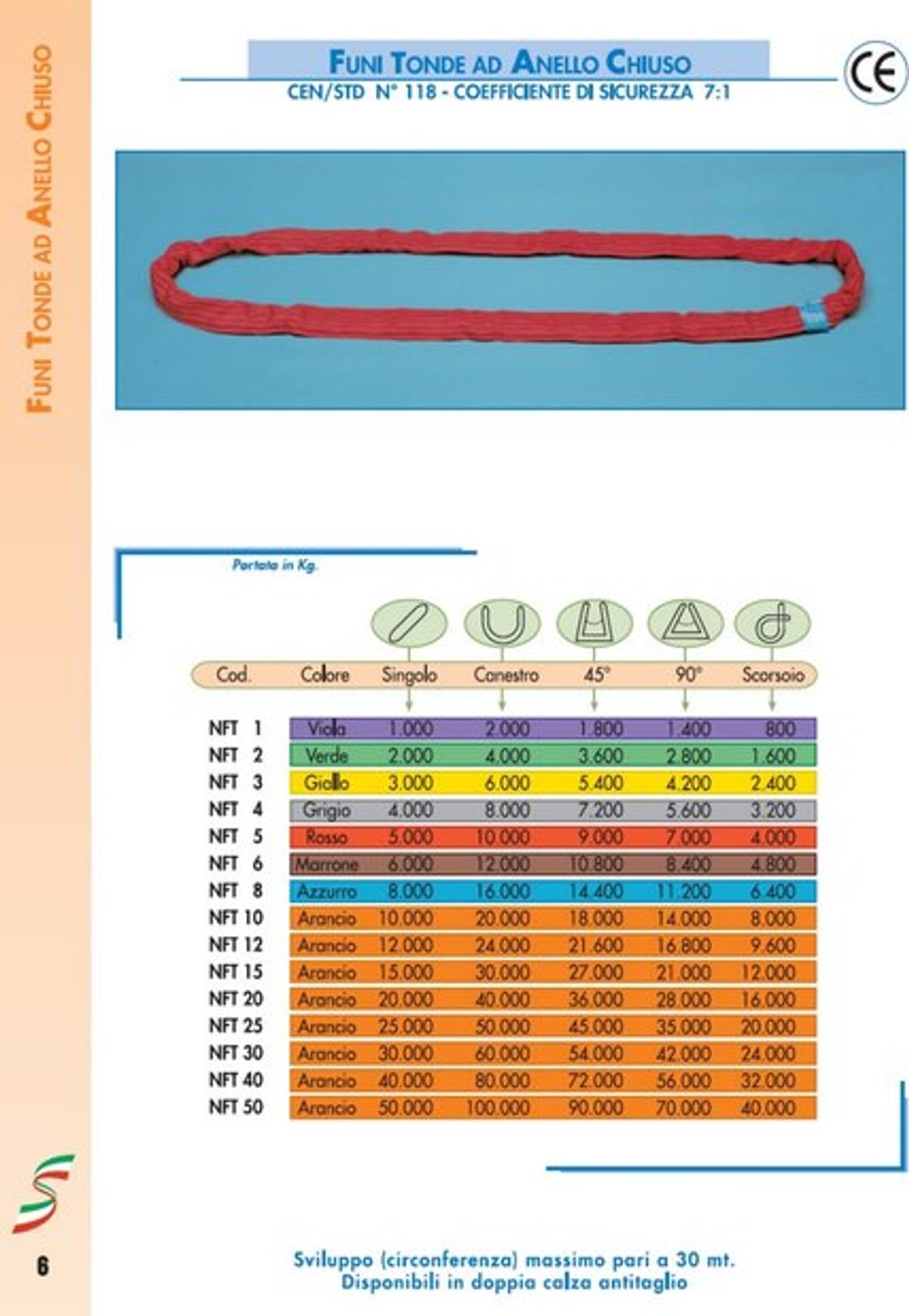

| Code | Colour | Single (kg) | Basket hitch (kg) | 45° (kg) | 90° (kg) | Choke hitch (kg) |
|---|---|---|---|---|---|---|
| NFT 1 | Violet | 1.000 | 2.000 | 1.800 | 1.400 | 800 |
| NFT 2 | Green | 2.000 | 4.000 | 3.600 | 2.800 | 1.600 |
| NFT 3 | Yellow | 3.000 | 6.000 | 5.400 | 4.200 | 2.400 |
| NFT 4 | Grey | 4.000 | 8.000 | 7.200 | 5.600 | 3.200 |
| NFT 5 | Red | 5.000 | 10.000 | 9.000 | 7.000 | 4.000 |
| NFT 6 | Brown | 6.000 | 12.000 | 10.800 | 8.400 | 4.800 |
| NFT 8 | Light blue | 8.000 | 16.000 | 14.400 | 11.200 | 6.400 |
| NFT 10 | Orange | 10.000 | 20.000 | 18.000 | 14.000 | 8.000 |
| NFT 12 | Orange | 12.000 | 24.000 | 21.600 | 16.800 | 9.600 |
| NFT 15 | Orange | 15.000 | 30.000 | 27.000 | 21.000 | 12.000 |
| NFT 20 | Orange | 20.000 | 40.000 | 36.000 | 28.000 | 16.000 |
| NFT 25 | Orange | 25.000 | 50.000 | 45.000 | 35.000 | 20.000 |
| NFT 30 | Orange | 30.000 | 60.000 | 54.000 | 42.000 | 24.000 |
| NFT 40 | Orange | 40.000 | 80.000 | 72.000 | 56.000 | 32.000 |
| NFT 50 | Orange | 50.000 | 100.000 | 90.000 | 70.000 | 40.000 |
Technical data from the Attollo catalogues. Prices and custom configurations on request.
Data sheets
NFT continuous polyester round slings, from 1,000 to 40,000 kg: the most common questions
List price from 5 € + VAT for the small models; capacity and length determine the price.
It is the capacity with the round sling choked around the load: 80% of the straight lift, because the sling works bent.
Yes, with protective sleeves; without them, the edge cuts the fibres.
