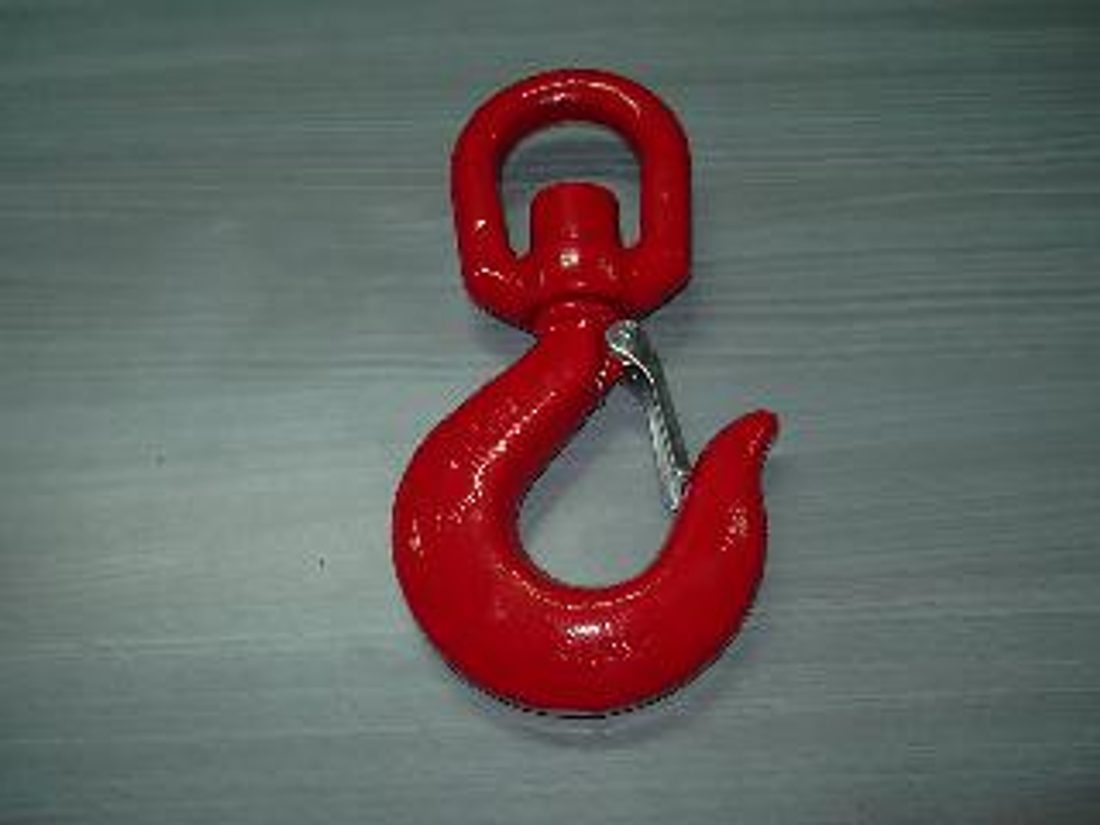

Swivel hooks and master links for slings, from 800 to 22,000 kg

Swivel hooks and master links are the components that make up slings: the swivel hook, with or without ball bearing, lets the load rotate without twisting the chain or wire rope; the master link and the head link gather the legs on the crane hook. Series 320C/322C and 320A/322A from 800 to 22,000 kg, certified for below-the-hook use. List price from 15 € + VAT.
The table in the data sheet lists nine sizes with dimensions A to L: from the 800 kg hook (320C/322C) or 1,250 kg (320A/322A) to the 15,000 kg hook (320C/322C) or 22,000 kg (320A/322A), with dimensions A to L in the table.
The ball bearing allows rotation under load, to orient the part during assembly without unhooking it; the hook without bearing rotates unloaded to align the sling.
All hooks have a safety latch; master links are sized on the total capacity of the sling and the opening of the crane hook.
CE marked and certified, in grade 80 or 100 to match the chain; also supplied assembled in chain slings.
| Series | 320C/322C and 320A/322A |
| Rated capacity | from 800 to 15,000 kg (C) and from 1,250 to 22,000 kg (A) |
| Build | swivel, with or without ball bearing, safety latch |
| Sizes | dimensions A-L in the table |
| Use | assembly of chain, wire rope and textile slings |
| Certification | 2006/42/EC, marking and certificate |
Custom-built: every piece of equipment is custom-built and certified to CE 2006/42. Request a quotation for your exact configuration and capacity.
Swivel hooks and master links for slings, from 800 to 22,000 kg — models and capacities
| Capacity 320C/322C (kg) | Capacity 320A/322A (kg) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | I (mm) | L (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 800 | 1.250 | 50 | 24 | 32 | 19 | 73 | 22 | 19 | 14 | 82 | 110 |
| 1.000 | 1.600 | 63 | 33 | 38 | 23 | 80 | 24 | 21 | 16 | 93 | 125 |
| 1.600 | 2.500 | 76 | 41 | 44 | 28 | 92 | 25 | 25 | 19 | 104 | 151 |
| 2.000 | 3.200 | 76 | 40 | 44 | 32 | 104 | 28 | 28 | 21 | 119 | 162 |
| 3.200 | 5.400 | 89 | 44 | 50 | 40 | 125 | 34 | 36 | 28 | 146 | 201 |
| 5.000 | 8.000 | 114 | 59 | 63 | 51 | 165 | 43 | 46 | 35 | 187 | 256 |
| 7.500 | 11.500 | 127 | 60 | 70 | 62 | 192 | 52 | 57 | 41 | 230 | 316 |
| 10.000 | 16.000 | 143 | 68 | 79 | 72 | 220 | 57 | 66 | 49 | 256 | 354 |
| 15.000 | 22.000 | 178 | 106 | 102 | 89 | 279 | 76 | 76 | 60 | 318 | 434 |
Technical data from the Attollo catalogues. Prices and custom configurations on request.
Data sheets
Swivel hooks and master links for slings, from 800 to 22,000 kg: the most common questions
List price from 15 € + VAT for small capacities; capacity and bearing determine the price.
Yes, if the load has to be rotated while suspended; to align the sling unloaded, a simple swivel hook is enough.
Grade 80 or 100, matched to the sling chain; the marking is on the hook.
