Digital hook crane scales, from 50 kg to 20 tonnes

The digital crane scale hooks between the crane hook and the load and reads its suspended weight: ISDTEP series of 50, 150 and 300 kg with 10, 20 and 50 g resolution and 1.1 kg own weight, ISDTEN series from 500 kg to 20 tonnes with resolution from 0.1 to 5 kg. LCD or LED display and remote control. List price from 400 € + VAT.

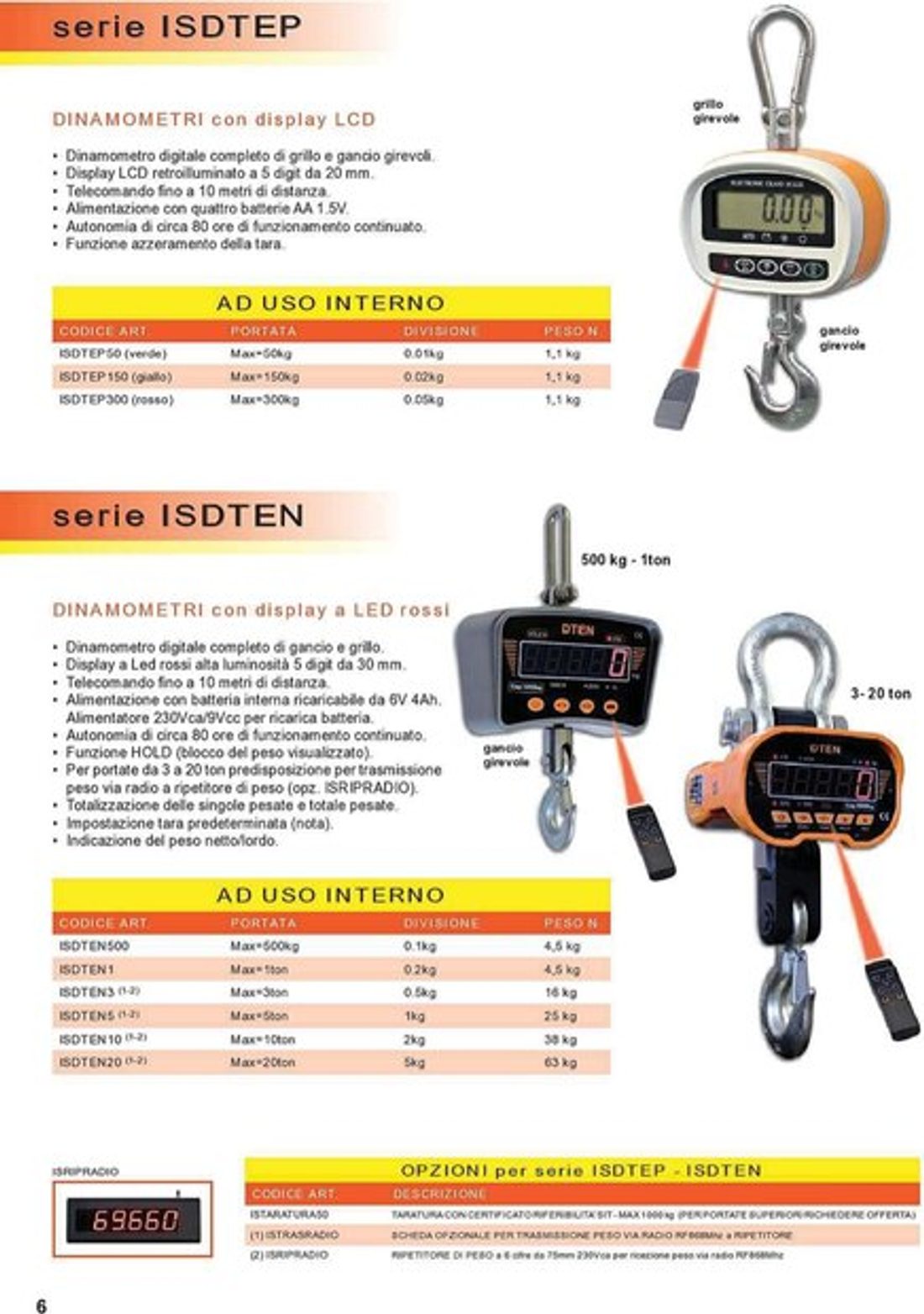

The data sheet table lists the nine models: ISDTEP50 (50 kg, 0.01 kg), ISDTEP150, ISDTEP300; ISDTEN500 (500 kg, 0.1 kg, 4.6 kg weight), ISDTEN1 (1 t), ISDTEN3 (3 t, 0.5 kg, 16 kg), ISDTEN5 (5 t), ISDTEN10 (10 t, 2 kg, 38 kg), ISDTEN20 (20 t, 5 kg, 63 kg).
The remote control zeroes, holds the reading and changes units without approaching the suspended load; the LED display is readable from a distance, the LCD in full light.
It is used to check the weight before a lift close to the crane's limit, to weigh scrap, castings and incoming packages, and for load tests on lifting accessories.
Supplied with certificate of conformity.
| Series | ISDTEP (50-300 kg) and ISDTEN (500 kg - 20 t) |
| Rated capacity | from 50 kg to 20,000 kg |
| Division | from 0.01 kg to 5 kg depending on model |
| Weight | from 1.1 to 63 kg |
| Display | LCD or LED, with remote control |
| Certification | CE, certificate of conformity |
Custom-built: every piece of equipment is custom-built and certified to CE 2006/42. Request a quotation for your exact configuration and capacity.
Digital hook crane scales, from 50 kg to 20 tonnes — models and capacities
| Model | Rated capacity | Division | Weight (kg) |
|---|---|---|---|
| ISDTEP50 | 50 kg | 0.01 kg | 1,1 |
| ISDTEP150 | 150 kg | 0.02 kg | 1,1 |
| ISDTEP300 | 300 kg | 0.05 kg | 1,1 |
| ISDTEN500 | 500 kg | 0.1 kg | 4,6 |
| ISDTEN1 | 1 t | 0.2 kg | 4,6 |
| ISDTEN3 | 3 t | 0.5 kg | 16 |
| ISDTEN5 | 5 t | 1 kg | 25 |
| ISDTEN10 | 10 t | 2 kg | 38 |
| ISDTEN20 | 20 t | 5 kg | 63 |
Technical data from the Attollo catalogues. Prices and custom configurations on request.
Data sheets
Digital hook crane scales, from 50 kg to 20 tonnes: the most common questions
List price from 400 € + VAT for the small models; capacity determines the price.
The resolution ranges from 10 g (50 kg) to 5 kg (20 t): for example 1 kg on the 5-tonne model.
The crane scale is supplied calibrated; for quality controls, calibration with certificate can be requested.
