Polyester flat webbing slings for lifting, straight or U-shaped

Polyester flat webbing slings for lifting, straight or U-shaped
Below-the-hook equipment

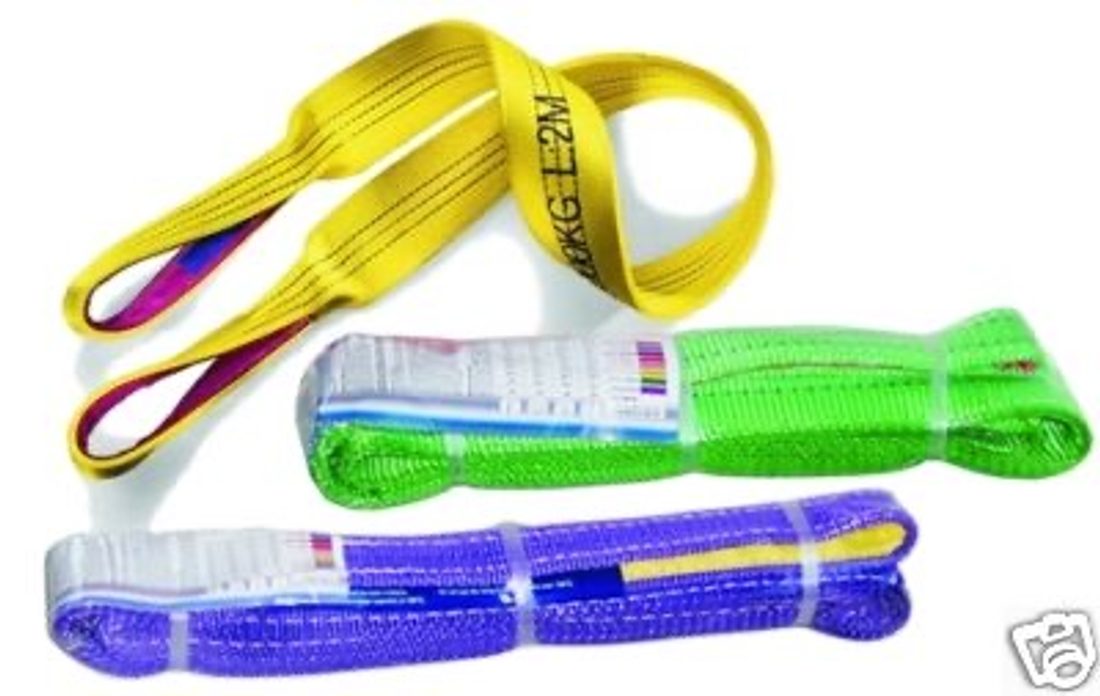

Polyester flat webbing slings are the most widely used below-the-hook accessory: two eyes at the ends, hooked straight, in U under the load or choked, and the wide webbing does not mark the parts. The colour identifies the capacity according to EN 1492-1, with a 7:1 safety factor; lengths and capacities made to measure. List price from 3 € + VAT.

The double-ply webbing spreads the pressure: for painted sections, machined parts and packaging; choked the capacity drops, in U it doubles, as stated on the label.

Standard lengths range from 0.5 to 12 m; the eyes can be reinforced or fitted with protective sleeves at the points of contact with edges.

They are used in pairs under the lifting beam, singly choked for bundles and tubes, in U for crates and machinery; they must be inspected at every use and replaced if cut or if the label is illegible.

CE certified to EN 1492-1; see also the slings and textile slings category for the full range.

Materialpolyester, double-ply webbing
Rated capacitycolour-coded to EN 1492-1, from 0.5 t
Configurationsstraight, U-shaped, choked
Lengthsstandard from 0.5 to 12 m, made to measure
StandardEN 1492-1, factor 7:1
Certification2006/42/EC, marking and certificate
€ 3,00 + VAT

Custom-built: every piece of equipment is custom-built and certified to CE 2006/42. Request a quotation for your exact configuration and capacity.

Data sheets

Frequently asked questions

Polyester flat webbing slings for lifting, straight or U-shaped: the most common questions

List price from 3 € + VAT; capacity and length determine the price.
