Expanding clamp for copper coils and loads with a bore

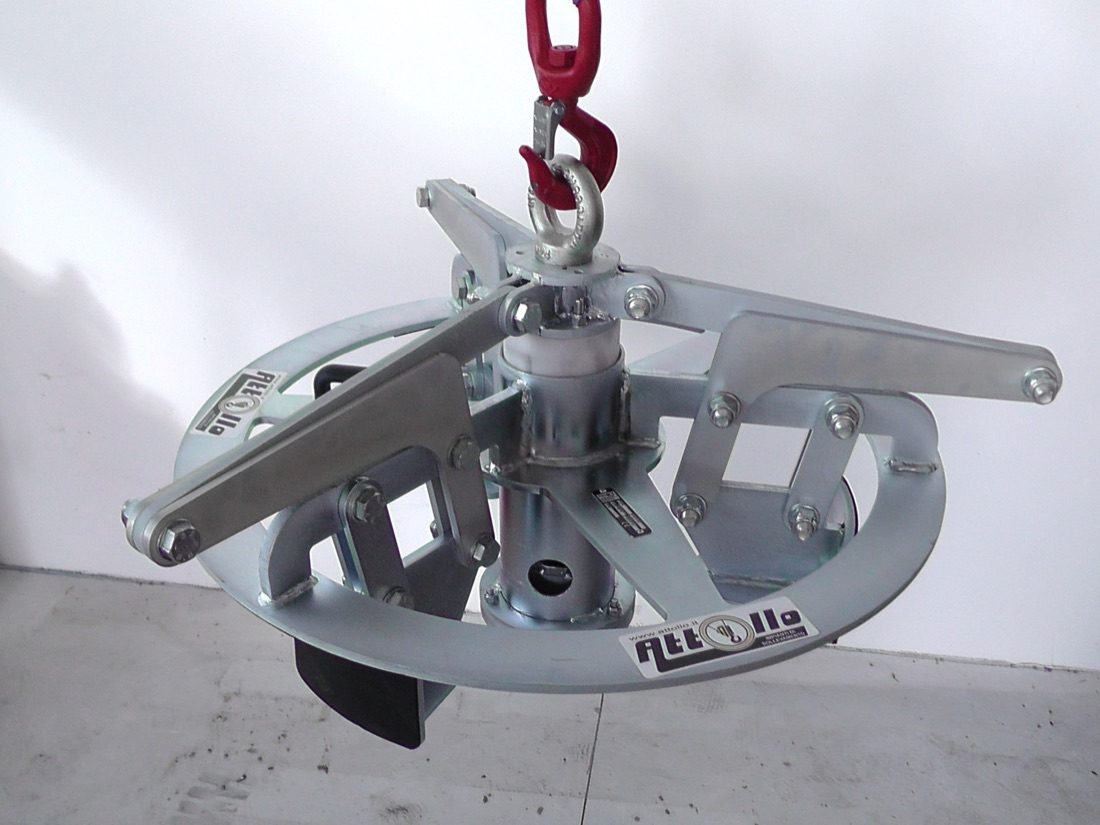

The expanding clamp takes coils from the centre bore and lifts them horizontally: the scissor mechanism opens the jaws when the hook rises, and the rubber-coated jaws lock the coil from the inside without touching the outer surface. For copper and aluminium coils and equipment with a bore, made to measure and CE certified. List price 1,500 € + VAT.
The scissor mechanism works with the weight of the load: the heavier the coil, the harder the jaws press on the bore; the rubber prevents marks on copper and aluminium, which in converting and cable manufacturing are the finished product.
Bore diameter, width and weight of the coils define the clamp: expansion range, jaw length and rated capacity.
It is used with overhead travelling cranes, jib cranes and fork-mounted crane jibs; the coil is taken from the warehouse and placed on the machine with its axis horizontal.
CE certified to 2006/42/EC with capacity plate and certificate; for plastic coils with hydraulic rotation, see the hydraulic mandrel in the fork-mounted range.
| Grip | expanding from the bore, scissor mechanism |
| Jaws | rubber-coated |
| Use | copper and aluminium coils, loads with a bore, horizontal |
| Rated capacity | based on coil weight, on the plate |
| Build | made to measure |
| Certification | 2006/42/EC, marking and certificate |
Custom-built: every piece of equipment is custom-built and certified to CE 2006/42. Request a quotation for your exact configuration and capacity.
Data sheets
Expanding clamp for copper coils and loads with a bore: the most common questions
List price from 1,500 € + VAT; bore, width and weight of the coils determine the price.
No: the rubber jaws work inside the bore, the outer surface is not touched.
Yes, by scissor action with the weight of the load: no controls, it opens when set down and closes when lifted.
