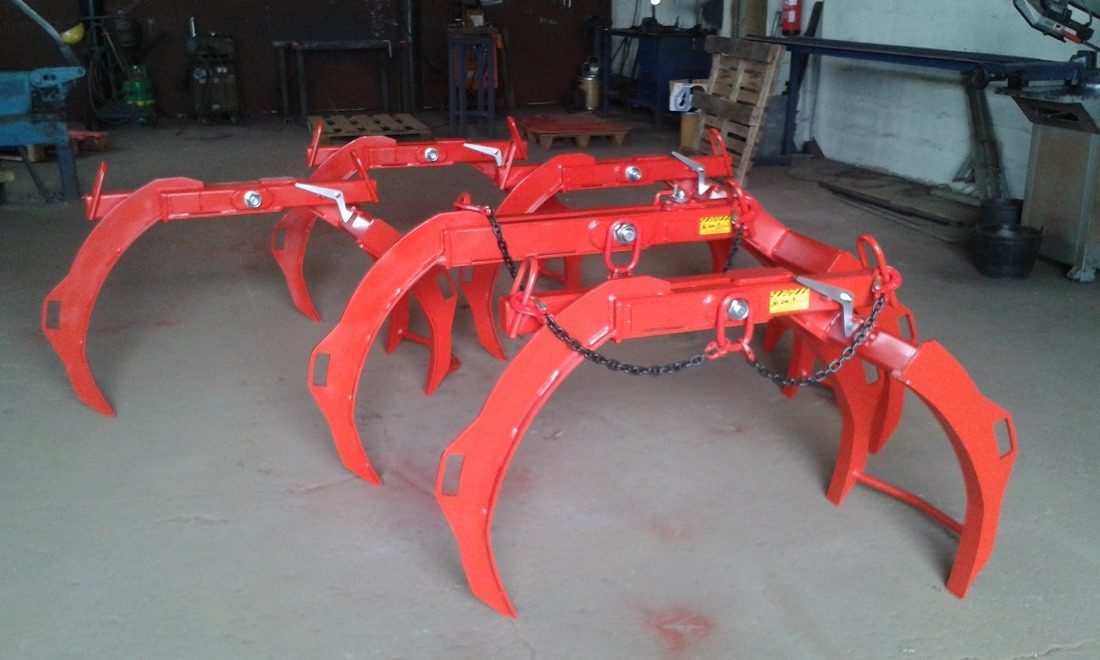

Semi-automatic clamp for stones, irregular boulders and logs, 1,000 and 1,500 kg

The semi-automatic stone clamp grips irregular blocks where flat slings do not hold: the jaws adapt to the shape of the boulder and close under the weight, opening automatically when set down. Two models, PM1 of 1,000 kg and PM1,5 of 1,500 kg, also suitable for logs; for cranes, overhead travelling cranes and mobile cranes. CE certified, list price 600 € + VAT.
The data sheet table lists the two models: PM1 of 1,000 kg with opening A 1,150 mm, B 850, C 565, D 1,000 mm and 63 kg; PM1,5 of 1,500 kg with A 2,200 mm, D 1,500 mm and 100 kg.
Semi-automatic: the trip device opens the jaws when the boulder is set down and lets them close when the hook rises again, without the operator touching the load.
It is the clamp of landscapers, quarry workers and contractors laying cyclopean boulders, rock armour and dry-stone walls, and of loggers for logs.
CE certified to 2006/42/EC with capacity plate and certificate; other sizes and capacities on request.
| Models | PM1 (1,000 kg) and PM1,5 (1,500 kg) |
| Rated capacity | 1,000 or 1,500 kg |
| Opening A | 1,150 or 2,200 mm |
| Weight | 63 or 100 kg |
| Operation | semi-automatic, closing under weight |
| Use | stones, irregular boulders, logs |
| Certification | 2006/42/EC, marking and certificate |
Custom-built: every piece of equipment is custom-built and certified to CE 2006/42. Request a quotation for your exact configuration and capacity.
Semi-automatic clamp for stones, irregular boulders and logs, 1,000 and 1,500 kg — models and capacities
| Model | Capacity (kg) | A (mm) | B (mm) | C (mm) | D (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| PM1 | 1000 | 1150 | 850 | 565 | 1000 | 63 |
| PM1.5 | 1500 | 2200 | 850 | 565 | 1500 | 100 |
Technical data from the Attollo catalogues. Prices and custom configurations on request.
Data sheets
Semi-automatic clamp for stones, irregular boulders and logs, 1,000 and 1,500 kg: the most common questions
List price from 600 € + VAT for the PM1 model; the PM1,5 is confirmed in the quotation.
Yes: the jaws adapt to the shape and the weight of the boulder tightens the grip; for squared blocks there is the concrete clamp.
Yes, within the capacity and opening of the model.
