D and bow shackles from 500 to 25,000 kg

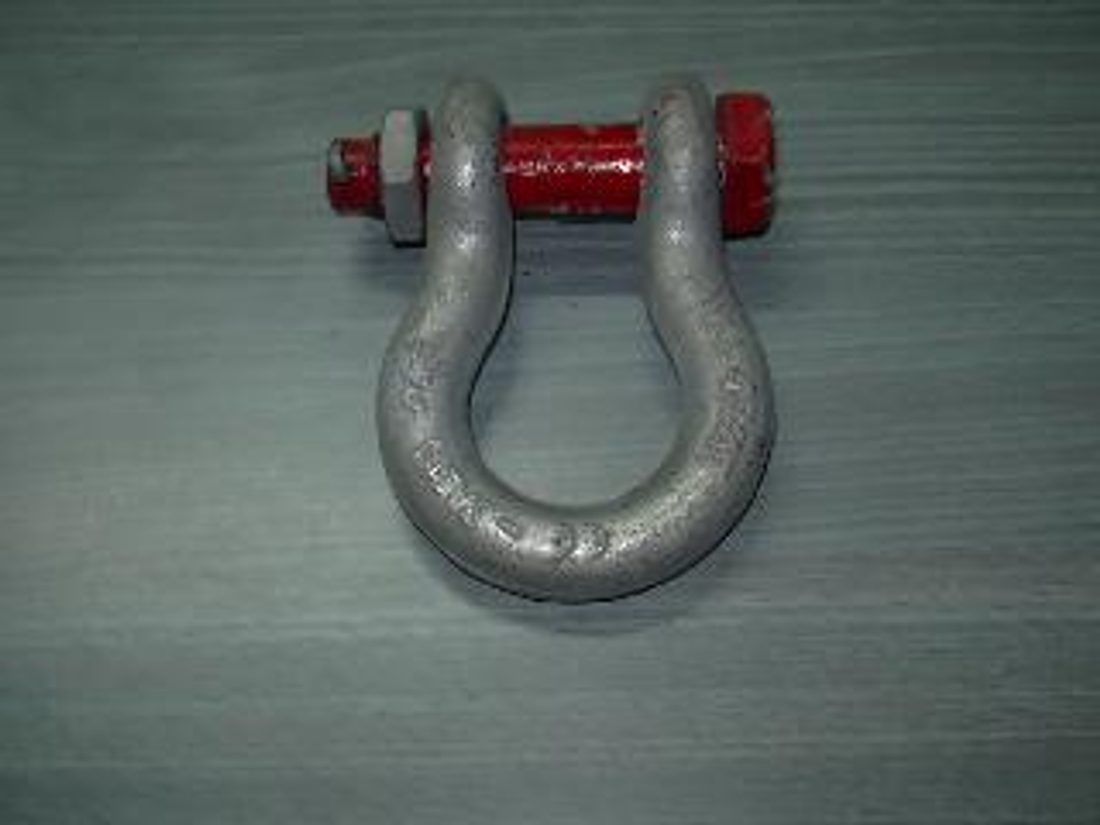

The shackle connects wire ropes, chains, flat slings and eyebolts to the crane hook: D shackle (straight) for in-line pulls, bow shackle (lyre) when the legs work at an angle or several slings are connected. Sixteen sizes from 500 to 25,000 kg with pin from 6 to 44 mm, marked with the capacity and CE certified. List price from 4 € + VAT.
The data sheet table lists the sizes: from the 500 kg shackle with 6 mm pin d, 12 mm opening W and 0.05 kg weight to the 25,000 kg shackle with 44 mm pin, 73 mm opening and 12.6 kg; in between, the sizes 1,000, 2,000, 3,250, 4,750, 6,500, 8,500, 12,000 and 17,000 kg.
The threaded pin is screwed in by hand and locked; for permanent use, the pin with nut and split pin. The rated capacity applies to in-line pulls; with side loading it must be reduced.
They are used on lifting beam rings, on machine eyebolts and at the ends of flat slings and wire rope slings.
Grade 6 galvanized alloy steel, marked with capacity and batch, supplied with certificate.
| Types | D shackle (straight) and bow shackle (lyre) |
| Rated capacity | from 500 to 25,000 kg, 16 sizes |
| Pin d | from 6 to 44 mm |
| Opening W | from 12 to 73 mm |
| Weight | from 0.05 to 12.6 kg |
| Certification | 2006/42/EC, marking and certificate |
Custom-built: every piece of equipment is custom-built and certified to CE 2006/42. Request a quotation for your exact configuration and capacity.
D and bow shackles from 500 to 25,000 kg — models and capacities
| Capacity (kg) | d (mm) | D (mm) | W (mm) | R (mm) | S (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| 500 | 6 | 8 | 12 | 20 | 29 | 0,05 |
| 750 | 8 | 10 | 13 | 21 | 31 | 0,08 |
| 1.000 | 10 | 11 | 16 | 26 | 36 | 0,1 |
| 1.500 | 11 | 13 | 18 | 29 | 43 | 0,2 |
| 2.000 | 13 | 16 | 20 | 33 | 47 | 0,3 |
| 3.250 | 16 | 19 | 27 | 43 | 60 | 0,7 |
| 4.750 | 19 | 22 | 32 | 51 | 71 | 1 |
| 6.500 | 22 | 25 | 37 | 58 | 84 | 1,5 |
| 8.500 | 25 | 28 | 43 | 68 | 95 | 2,4 |
| 9.500 | 29 | 32 | 46 | 74 | 108 | 3,2 |
| 12.000 | 32 | 35 | 52 | 83 | 119 | 4,4 |
| 13.500 | 35 | 38 | 57 | 92 | 132 | 5,7 |
| 17.000 | 38 | 41 | 60 | 98 | 146 | 7,8 |
| 25.000 | 44 | 51 | 73 | 127 | 178 | 12,6 |
| 35.000 | 51 | 57 | 83 | 146 | 197 | 18,6 |
| 55.000 | 64 | 70 | 105 | 184 | 267 | 41 |
Technical data from the Attollo catalogues. Prices and custom configurations on request.
