Beam clamp for structural beams, from 4.54 to 35 tonnes

The beam clamp grips the flange of structural beams and lifts them without slings: seven models in the F and NS series from 4.54 to 35 tonnes, with grip width from 102 to 914 mm and flange thickness from 13 to 102 mm. For steel erectors, precasters and sites laying large-section beams under cranes and mobile cranes. CE certified, list price from 4,800 € + VAT.
The data sheet table lists the models: F-5 of 4.54 t (grip 102-254 mm, thickness 13-25 mm, 31.8 kg); F-15 and NS-15 of 13.6 t (178-432 mm, 13-51 mm, 69.4 kg); F-25 and NS-25 of 25 t (406-610 mm, 25-76 mm, 132 kg); F-35 and NS-35 of 35 t (406-914 mm, 41-102 mm, 235 kg).
The clamp is adjusted to the flange width and locked; the vertical pull closes the grip and the beam stays horizontal under the hook, in pairs under the lifting beam for long beams.
The F and NS series differ in the type of attachment and locking; the choice depends on the way of working, on site or in the workshop.
CE certified to 2006/42/EC with capacity plate and certificate; maintenance of the gripping surfaces and periodic inspection.
| Series | F and NS, 7 models |
| Rated capacity | from 4.54 to 35 t |
| Grip width | from 102 to 914 mm |
| Flange thickness | from 13 to 102 mm |
| Weight | from 31.8 to 235 kg |
| Use | large-section structural beams |
| Certification | 2006/42/EC, marking and certificate |
Custom-built: every piece of equipment is custom-built and certified to CE 2006/42. Request a quotation for your exact configuration and capacity.
Beam clamp for structural beams, from 4.54 to 35 tonnes — models and capacities
| Model | Capacity (t) | Grip width (mm) | Grip thickness (mm) | Weight (kg) |
|---|---|---|---|---|
| F-5 | 4.54 t | 102 - 254 | 13 - 25 | 31,8 |
| F-15 | 13.6 t | 178 - 432 | 13 - 51 | 69,4 |
| NS-15 | 13.6 t | 178 - 432 | 13 - 51 | 69,4 |
| F-25 | 25 t | 406 - 610 | 25 - 76 | 132 |
| NS-25 | 25 t | 406 - 610 | 25 - 76 | 132 |
| F-35 | 35 t | 406 - 914 | 41 - 102 | 235 |
| NS-35 | 35 t | 406 - 914 | 41 - 102 | 235 |
Technical data from the Attollo catalogues. Prices and custom configurations on request.
Data sheets
Beam clamp for structural beams, from 4.54 to 35 tonnes: the most common questions

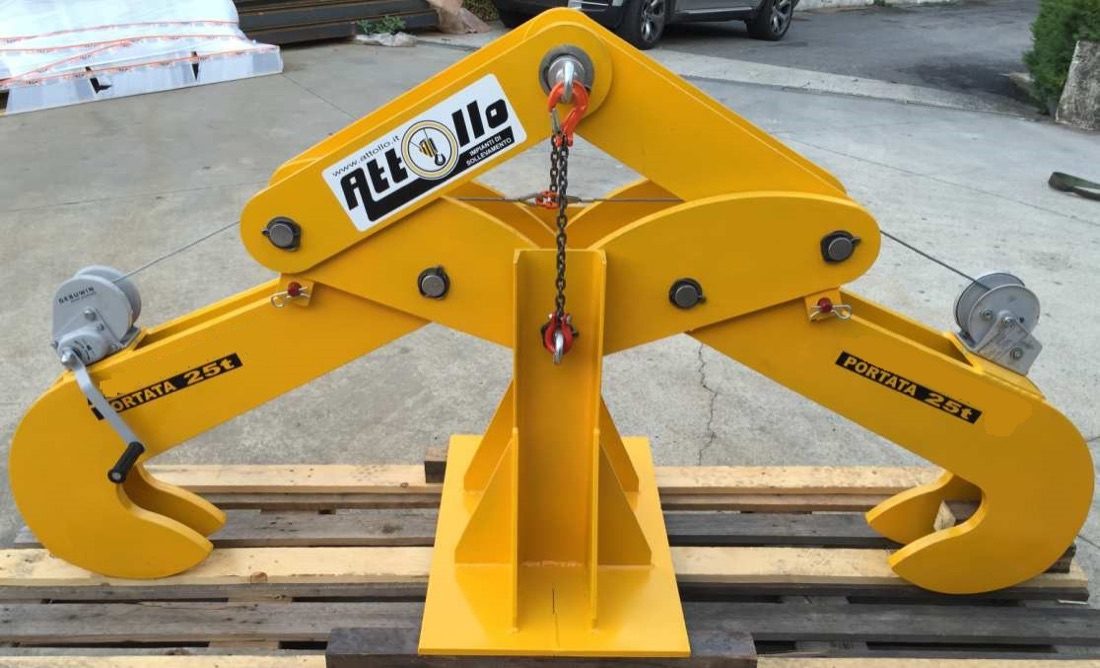

List price from 4,800 € + VAT for the 25 t model; the other models are confirmed in the quotation.
On the flange width and thickness and on the beam weight: the table shows the gripping ranges for each model.
For short beams yes, aligned with the centre of gravity; for long beams in pairs under a lifting beam.
