Certified support trestles: A CA series from 500 to 15,000 kg and custom-built
Support trestles hold the part stably at working height: in painted steel, with a capacity plate and serial number on each unit, they are used in pairs in steel fabrication, workshops, paint shops and on site. The A CA series, made by Attollo, comes in eight sizes from 500 to 15,000 kg with top beams from 1,200 to 2,000 mm and 900 mm height; custom-built to the drawing of the part, also with a wood or rubber surface, rollers or forks. List prices from 450 € + VAT.
Standard support trestles, A CA
The eight catalogue sizes from 500 to 15,000 kg: at list price the 500 kg (A CA 0,5) and the 1,000 kg (A CA 1); in the range the 2,000, the 5,000 and the 10 tonne model with load-spreading pads and fork pockets.

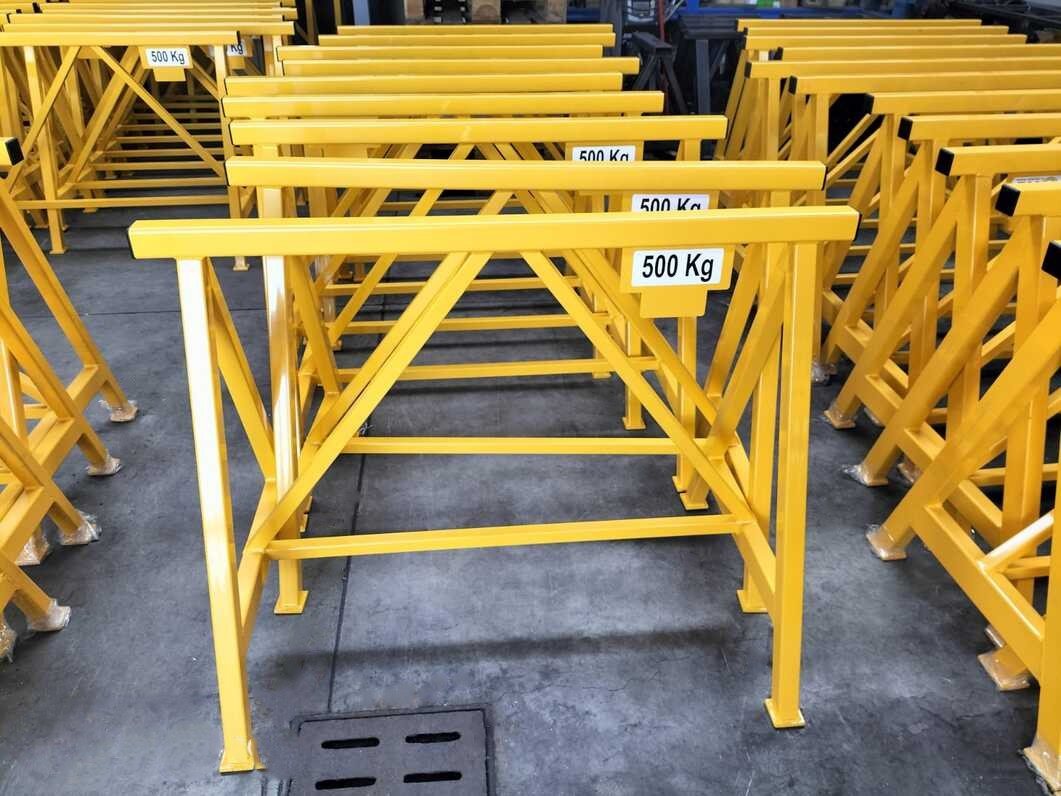

Certified 500 kg support trestle, A CA 0,5

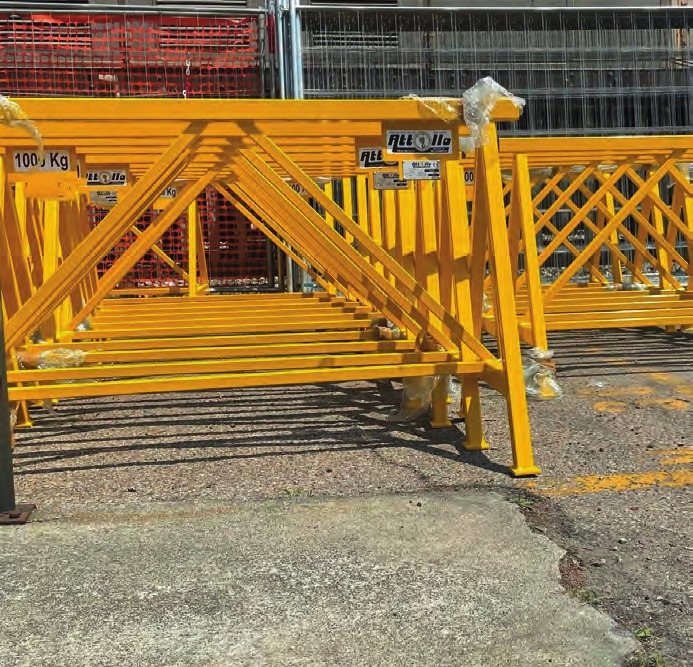

Certified 1,000 kg support trestle, A CA 1

Certified support trestles — 2,000 kg capacity

Certified support trestles — 5,000 kg capacity

Certified support trestles — 10 t capacity
Custom-built and workshop trestles
The version built to the drawing of the part, the UPN 120 trestle with bench rubber and the roller or fork supports; for changing height, the height-adjustable trestles in the range.
Certified support trestles: models, capacities and dimensions
| Model | Rated capacity | Beam L | Height / base | Weight / use |
|---|---|---|---|---|
| Certified 500 kg support trestle, A CA 0,5 | 500 kg per trestle | 1.200 mm | 900 mm, base B 700 mm | 26 kg |
| Certified 1,000 kg support trestle, A CA 1 | 1,000 kg per trestle | 1.500 mm | 900 mm, base B 700 mm | 29 kg |
| Certified support trestles — 2,000 kg capacity | 2,000 kg per stand | painted steel, cross-braced uprights | tubular beam with end caps | medium steelwork, machining and storage |
| Certified support trestles — 5,000 kg capacity | 5,000 kg per stand | steel, larger sections than the 2,000 kg model | — | down to the base, widened plate feet |
| Certified support trestles — 10 t capacity | 10 t (10,000 kg) per stand | — | load-spreading sole plates under the feet | fork pockets for forklift handling |
| Certified custom-built support trestle, from 500 to 15,000 kg | from 500 to 15,000 kg, custom-built | to measure (standard from 1,200 to 2,000 mm) | to measure (standard 900 mm) | — |
| UPN 120 workshop trestle with rubber top | — | UPN 120 section, steel | bench rubber 5 mm thick | — |
| Custom trestles with roller or V-block supports | standard 1,000 kg, made to measure 500–10,000 kg | rollers, V-block, flat top | — | — |
A CA series: capacities, dimensions and weights
| Type | Rated capacity | L | H | B | Support base | Weight |
|---|---|---|---|---|---|---|
| A CA 0,5 | 500 kg | 1.200 mm | 900 mm | 700 mm | 50 mm | 26 kg |
| A CA 1 | 1,000 kg | 1.500 mm | 900 mm | 700 mm | 50 mm | 29 kg |
| A CA 2 | 2,000 kg | 1.500 mm | 900 mm | 700 mm | 50 mm | 32 kg |
| A CA 3 | 3,000 kg | 1.500 mm | 900 mm | 700 mm | 50 mm | 47 kg |
| A CA 5 | 5,000 kg | 1.500 mm | 900 mm | 700 mm | 50 mm | 50 kg |
| A CA 7 | 7,000 kg | 2.000 mm | 900 mm | 1.000 mm | 100 mm | 90 kg |
| A CA 10 | 10,000 kg | 2.000 mm | 900 mm | 1.000 mm | 100 mm | 122 kg |
| A CA 15 | 15.000 kg | 2.000 mm | 900 mm | 1.000 mm | 100 mm | 140 kg |
Attollo catalogue data: L is the top beam length, H the height, B the base width. Capacity is per single trestle; they are used in pairs.
How to choose certified support trestles
Capacity is per trestle
Two trestles support twice as much: for a 4,000 kg part, two A CA 2 are enough. Capacity must be referred to the heaviest part, with a margin if the load is set down off-centre by the overhead crane.
The top beam
Length L is chosen on the width of the part: 1,200 mm for the bench, 1,500 mm for medium steel fabrication, 2,000 mm from 7 tonnes upwards, with a wider base for stability.
The support surface
Bare steel for steel fabrication; bench rubber, marine plywood or lining on request for finished parts that must not be marked; rollers or forks for shafts and tubes to be turned or held.
Floor and moving
The plate feet rest on the floor without anchoring; from 10 tonnes the load-spreading pads distribute the load and the fork pockets allow the trestle to be moved with a forklift. For frequent height changes, the collection of adjustable trestles.
Certified support trestles: the most common questions
List price from 450 € + VAT for the 500 kg and from 500 € for the 1,000 kg; the UPN 120 trestle from 700 €, the custom-built version from 700 €. Higher capacities are confirmed in the quotation.
Singly, with a capacity plate on each unit; they are used in pairs and a pair supports twice the rated capacity.
The sizing: larger sections and bracing, wider plate feet from the 5,000 kg, load-spreading pads and fork pockets on the 10 tonne model.
Yes: built to the Machinery Directive 2006/42/EC, supplied with capacity plate, serial number, manual and CE certificate.
