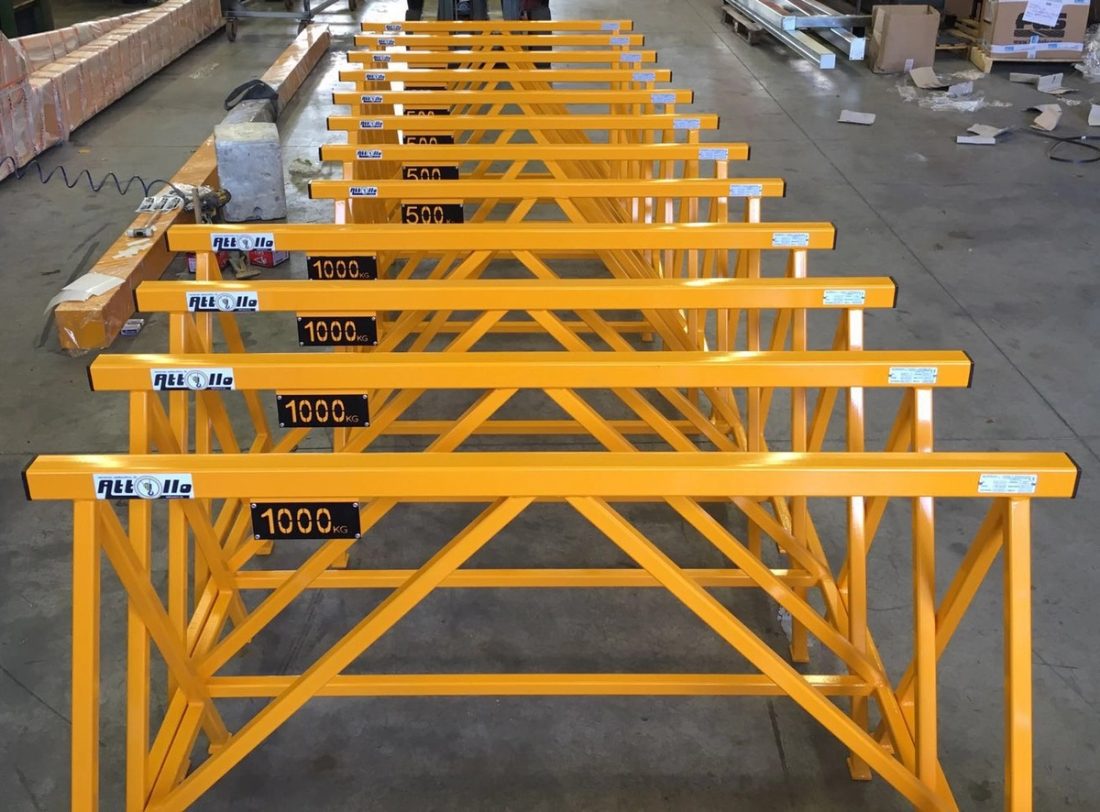

Certified 500 kg support trestle, A CA 0,5

The 500 kg support trestle is the bench and light steel fabrication size of the A CA series: 1,200 mm top beam, 900 mm height, 700 mm base and 26 kg weight, in painted steel. Sheet metal, sections and small frames rest stably at the right height for welding, drilling and grinding; it is used in pairs and each unit carries a capacity plate and serial number. List price 450 € + VAT.
The table on this page lists the whole series: from the A CA 0,5 to the 15,000 kg A CA 15, with top beams from 1,200 to 2,000 mm, a constant height of 900 mm and bases from 700 to 1,000 mm. The 500 kg model is the only one with a 1,200 mm top beam: compact, and moved by hand by one person.
Tubular top beam closed with end caps, braced uprights, plate feet that rest on the floor without anchoring; rust-proof primer and two coats of enamel. The support surface can be lined on request so as not to mark finished parts.
A pair supports 1,000 kg: it is the support used in workshops, blacksmiths' shops, paint shops and on sites for light parts being machined or awaiting the next step. For wider parts, the A CA 1 with a 1,500 mm top beam.
Supplied with capacity plate, serial number, manual and 2006/42/EC certificate.
| Model | A CA 0,5 |
| Rated capacity | 500 kg per trestle |
| Beam L | 1.200 mm |
| Height | 900 mm, base B 700 mm |
| Support base | 50 mm |
| Weight | 26 kg |
| Structure | painted steel |
| Certification | 2006/42/EC, capacity plate, serial number, manual and certificate |
Custom-built: every piece of equipment is custom-built and certified to CE 2006/42. Request a quotation for your exact configuration and capacity.
Certified 500 kg support trestle, A CA 0,5 — models and capacities
| Type | L (mm) | H (mm) | B (mm) | Capacity (Kg) | Base (mm) | Weight (Kg) |
|---|---|---|---|---|---|---|
| A CA 0,5 | 1.200 | 900 | 700 | 500 | 50 | 26 |
| A CA 1 | 1.500 | 900 | 700 | 1.000 | 50 | 29 |
| A CA 2 | 1.500 | 900 | 700 | 2.000 | 50 | 32 |
| A CA 3 | 1.500 | 900 | 700 | 3.000 | 50 | 47 |
| A CA 5 | 1.500 | 900 | 700 | 5.000 | 50 | 50 |
| A CA 7 | 2.000 | 900 | 1.000 | 7.000 | 100 | 90 |
| A CA 10 | 2.000 | 900 | 1.000 | 10.000 | 100 | 122 |
| A CA 15 | 2.000 | 900 | 1.000 | 15.000 | 100 | 140 |
Technical data from the Attollo catalogues. Prices and custom configurations on request.
Data sheets
Certified 500 kg support trestle, A CA 0,5: the most common questions
List price 450 € + VAT per unit; it is used in pairs.
1,000 kg, with the load shared between the two supports.
Yes, on request in rubber or wood for parts that must not be marked.
