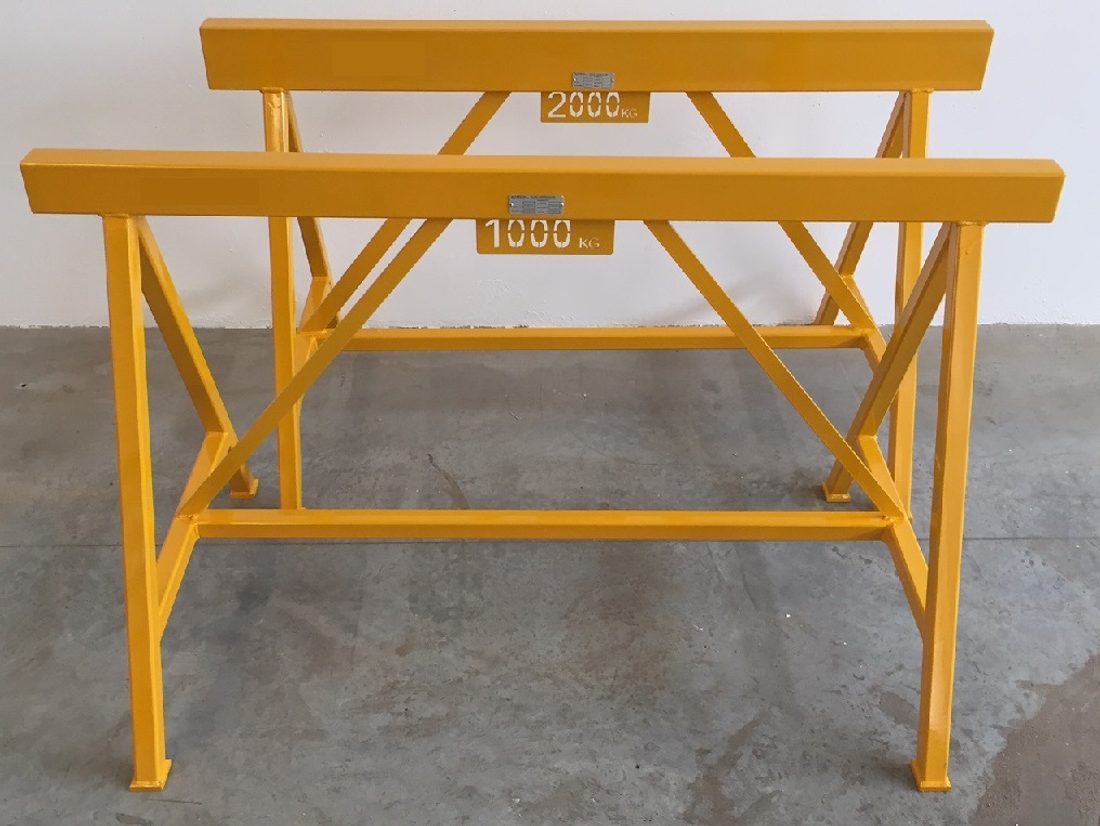

Certified custom-built support trestle, from 500 to 15,000 kg


The custom-built support trestle is made to the drawing of the part: top beam length, height, base width and capacity are defined with the customer starting from the eight standard sizes, from 500 to 15,000 kg, up to special versions with a wood or rubber support surface, roller or fork supports and adjustable feet. Built in the Milan workshop, certified to 2006/42/EC. The list price, 700 € + VAT, is the starting point.
The table on this page lists the standard sizes used as a starting point: top beam from 1,200 to 2,000 mm, 900 mm height, base from 700 to 1,000 mm, weight from 26 to 140 kg. The custom version changes working height, top beam length and base width, and goes up in capacity.
The support surface is adapted to the part: bare steel, marine plywood or bench rubber so as not to mark, rollers for turning shafts and tubes, V-forks for holding cylinders, anti-roll stops. On request, adjustable feet, load-spreading pads and fork pockets.
The drawing or the dimensions of the part are needed: weight, width, support points and working height; the final quotation follows the drawing. For frequent height changes, the height-adjustable trestles in the range.
Every trestle leaves the workshop with capacity plate, serial number, manual and 2006/42/EC certificate.
| Rated capacity | from 500 to 15,000 kg, custom-built |
| Beam L | to measure (standard from 1,200 to 2,000 mm) |
| Height | to measure (standard 900 mm) |
| Support top | steel, wood, rubber, rollers or forks |
| Options | adjustable feet, load-spreading pads, fork pockets, stops |
| Structure | painted steel |
| Certification | 2006/42/EC, capacity plate, serial number, manual and certificate |
Custom-built: every piece of equipment is custom-built and certified to CE 2006/42. Request a quotation for your exact configuration and capacity.
Certified custom-built support trestle, from 500 to 15,000 kg — models and capacities
| Type | L (mm) | H (mm) | B (mm) | Capacity (Kg) | Base (mm) | Weight (Kg) |
|---|---|---|---|---|---|---|
| A CA 0,5 | 1.200 | 900 | 700 | 500 | 50 | 26 |
| A CA 1 | 1.500 | 900 | 700 | 1.000 | 50 | 29 |
| A CA 2 | 1.500 | 900 | 700 | 2.000 | 50 | 32 |
| A CA 3 | 1.500 | 900 | 700 | 3.000 | 50 | 47 |
| A CA 5 | 1.500 | 900 | 700 | 5.000 | 50 | 50 |
| A CA 7 | 2.000 | 900 | 1.000 | 7.000 | 100 | 90 |
| A CA 10 | 2.000 | 900 | 1.000 | 10.000 | 100 | 122 |
| A CA 15 | 2.000 | 900 | 1.000 | 15.000 | 100 | 140 |
Technical data from the Attollo catalogues. Prices and custom configurations on request.
Data sheets
Certified custom-built support trestle, from 500 to 15,000 kg: the most common questions
List price from 700 € + VAT; the final quotation follows the drawing of the part, with the chosen capacity, dimensions and support surface.
Weight and width of the part, support points, required working height and type of support surface; the drawing, if available.
As standard up to 15,000 kg (A CA 15); beyond that, the 20,000 kg assembly trestle with perforated plate in the adjustable range.
