Fork-mounted attachments for forklift trucks: crane jibs, hooks, vacuum lifters, forks and accessories
Fork-mounted attachments turn the forklift truck into a crane, a vacuum lifter or a gripping tool: they slide onto the forks or are carriage-mounted (ISO/FEM) and are certified on the residual capacity of the forklift. The catalogue includes the fork-mounted jib crane and the battery-powered fork-mounted vacuum lifter for sheet metal; the fork-mounted line comprises 39 attachments in seven collections: forks and extensions, hooks and crane jibs, coil booms, clamps and buckets, frames and backrests, battery change, loading platforms and specials. List prices from 500 € + VAT.
Fork-mounted cranes and vacuum lifters

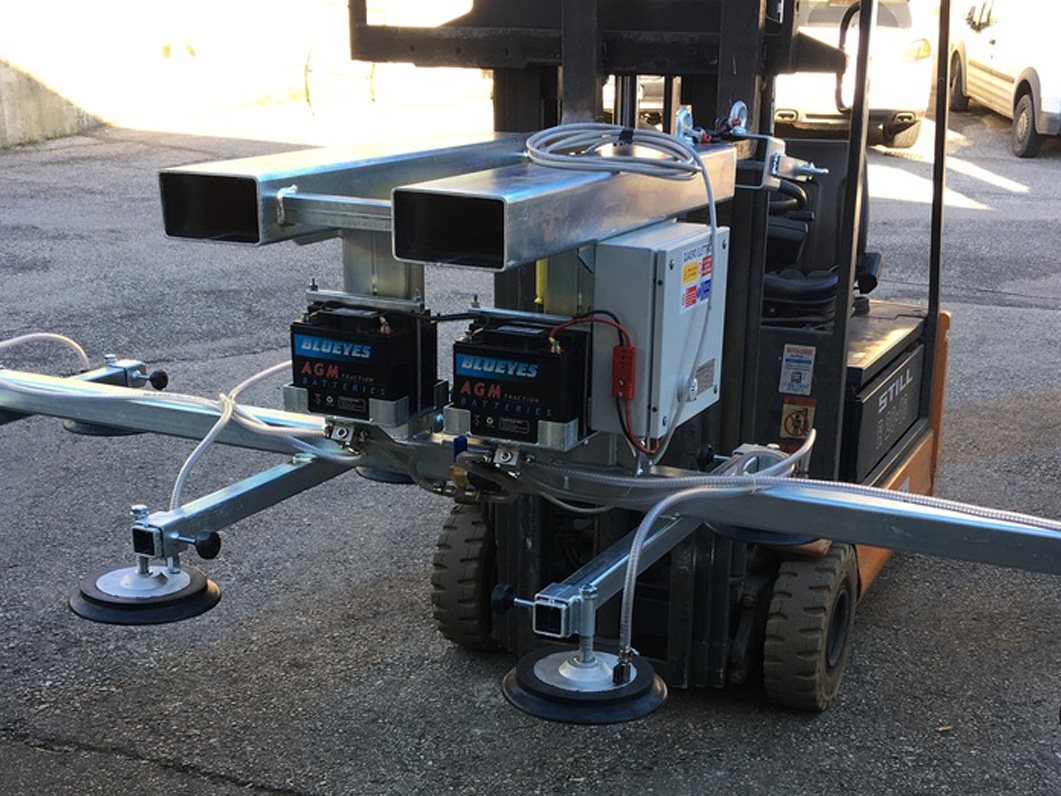

The jib crane that slides onto the forks, with slewing jib and hoist, and the battery vacuum lifter for sheet metal with radio remote control, for picking sheets from the stack with the forklift.
Crane jibs and hooks
The fork-mounted hook from 500 €, the triple hook for 12,000 kg, fork-mounted crane jibs with fixed or telescopic beam and the carriage-mounted versions with hydraulic swivel hook.

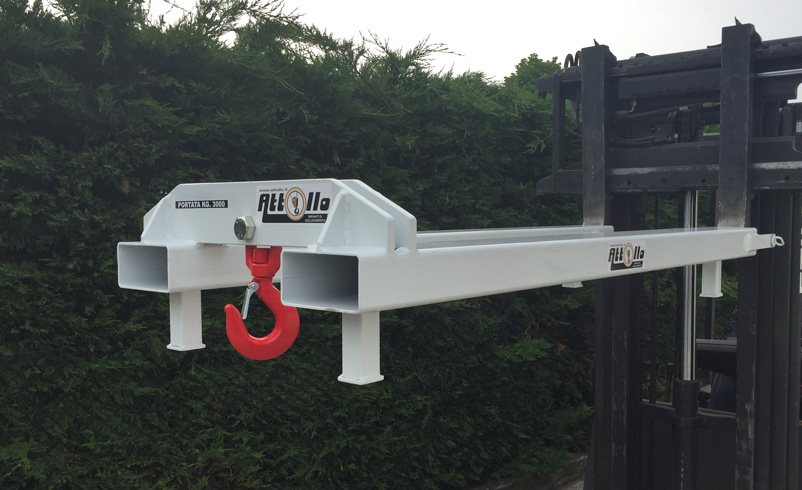

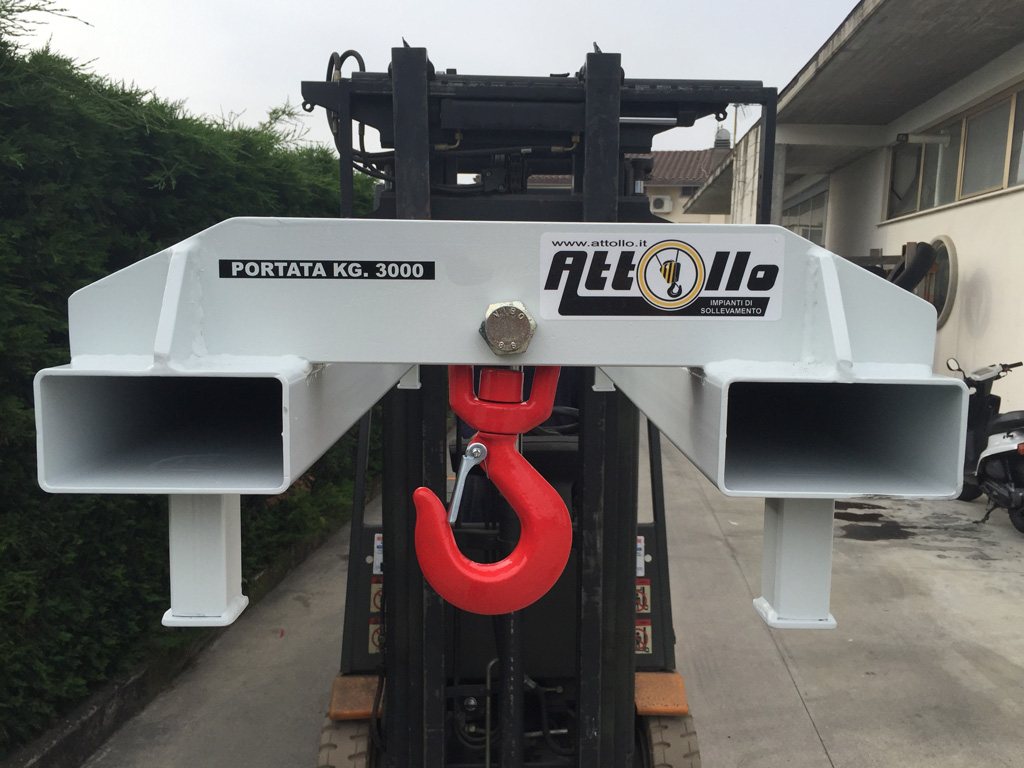

Fork-mounted hook for forks

12,000 kg triple fork-mounted hook

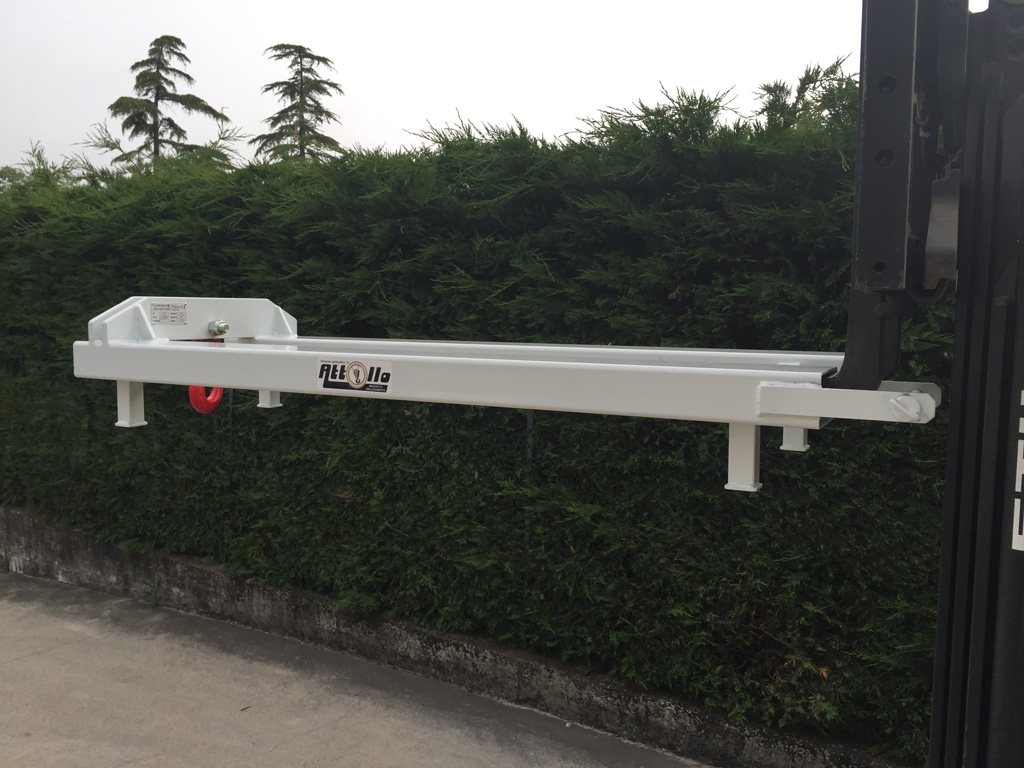

Fork-mounted fixed-beam crane jib

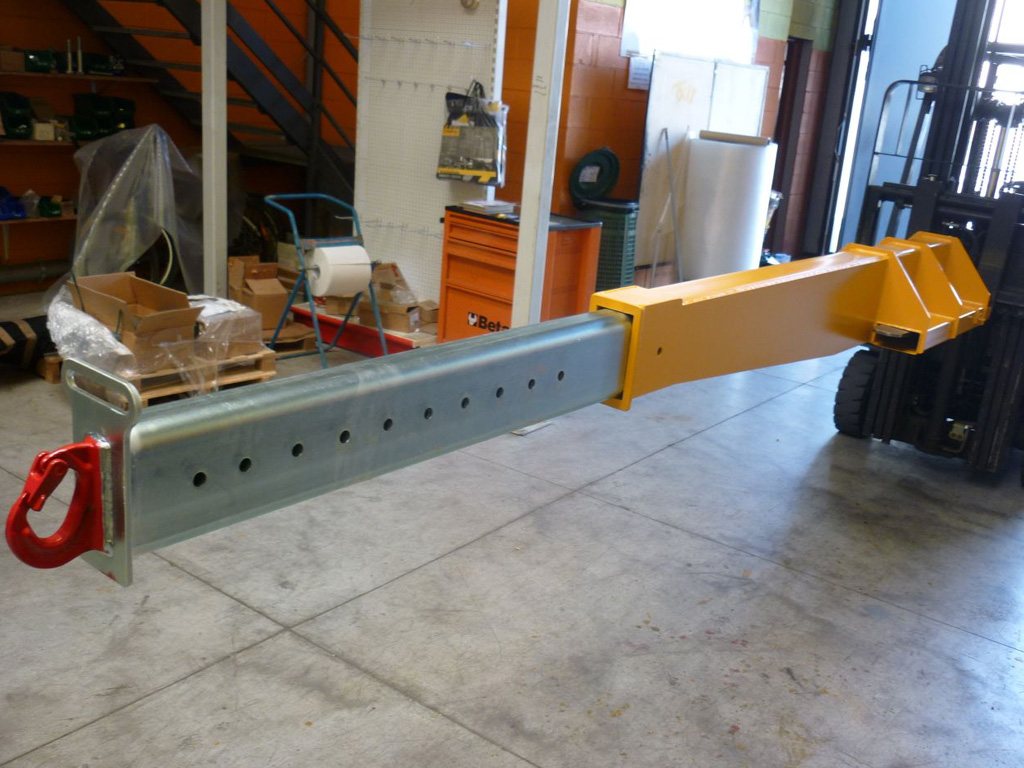

Fork-mounted extending crane jib

Carriage-mounted fixed-beam crane jib

Carriage-mounted crane jib with hydraulic rotating hook
Forks, coil booms and gripping tools
Replacement forks and ISO 13284 fork extensions, coil booms with a strength of three times the rated capacity, buckets, drum clamps, big-bag frames, load backrests, loading platforms for pallet trucks and snow plough blade.

Standard forks for forklift trucks

Fork extensions certified to ISO 13284

Standard carriage-mounted ram

Fork- or carriage-mounted bucket

Raised fork-mounted frame for big bags

Load guard

Fork-mounted loading platform for pallet trucks

Snow plough for forklift trucks
Fork-mounted attachments: models, capacities and dimensions
| Model | Assembly | Rated capacity | Use | Certification |
|---|---|---|---|---|
| Fork-mounted jib crane for forklift trucks | fork-mounted, secured behind the fork heels | on the residual capacity of the truck, shown on the capacity plate | hook or manual chain hoist, as preferred | 2006/42/EC, capacity plate and declaration of conformity |
| Fork-mounted battery vacuum lifter for sheet metal, for forklift trucks | — | — | — | CE 2006/42/EC and EN 13155, capacity plate |
| Fork-mounted hook for forks | short (screws) or long (pins) | — | — | CE 2006/42 |
| 12,000 kg triple fork-mounted hook | — | up to 12,000 kg | — | CE 2006/42 |
| Fork-mounted fixed-beam crane jib | fork-mounted | — | fixed, movable hook collar | CE 2006/42 |
| Fork-mounted extending crane jib | — | per extension position (plate) | extending by hand | CE 2006/42 |
| Carriage-mounted fixed-beam crane jib | ISO/FEM, round-bar, pre-ISO carriage | — | fixed (extending on request) | CE 2006/42 |
| Carriage-mounted crane jib with hydraulic rotating hook | ISO/FEM carriage | — | rotating, hydraulic control | CE 2006/42 |
| Standard forks for forklift trucks | ISO/FEM, round-bar or roller | — | common sections from stock | CE with certificate |
| Fork extensions certified to ISO 13284 | standard or nylon-coated | — | — | 2006/42/EC + ISO 13284 |
| Standard carriage-mounted ram | hooked onto the carriage | ≥ 3 times the capacity | hot-shrunk joint + weld | — |
| Fork- or carriage-mounted bucket | fork- or carriage-mounted | — | — | — |
| Raised fork-mounted frame for big bags | — | — | big bags and sacks | CE 2006/42 |
| Load guard | — | — | load retention on the mast | CE with certificate |
| Fork-mounted loading platform for pallet trucks | — | — | unloading pallet trucks from vehicles | CE 2006/42 |
| Snow plough for forklift trucks | — | — | wear-resistant steel | — |
The seven collections of the fork-mounted line
| Collection | Attachments | List price from |
|---|---|---|
| Forks and extensions | standard forks, Weldox, AISI 316L stainless steel, ISO 13284 extensions, fork shoes | on request |
| Hooks and crane jibs | fork-mounted hook, triple hook 12,000 kg, towing hook, fixed, telescopic, swinging and carriage-mounted crane jibs | €500 |
| Rams and reel handlers | carriage-mounted and double coil booms, for round-bar carriages, high-temperature, hydraulic pin and cradle, coil booms for boats | 1,600 € |
| Clamps, buckets and upenders | buckets, bin tipping bucket, tilters for coils and rolls, drum clamp | on request |
| Frames, stabilisers and guards | stabiliser frame, big-bag frame, double pole, load backrest | €2,500 |
| Battery changing | extraction frame, single, double and hydraulic roller beds | €1,400 |
| Loading platforms and specials | pallet truck platform, ball transfer platform, motorised roller bed, three-way truck plate, snow plough blade, fork-mounted vacuum lifters | on request |
Fork-mounted attachments are built to order around the capacity and forks of the truck: the catalogue shows the types, the quotation defines dimensions and capacity.
How to choose fork-mounted attachments
Residual capacity
Every attachment moves the load forward and the truck's capacity drops: the forklift's capacity plate and the load weight are needed; the check is free of charge.
Fork-mounted or carriage-mounted
Fork-mounted for occasional use, with the truck back on its forks in a minute; carriage-mounted (ISO/FEM) for continuous service, with the centre of gravity closer.
Load type
Coils: coil booms; sheet metal: fork-mounted vacuum lifter; slung loads: hooks and crane jibs; big bags: frames and poles; bulk materials: buckets; pallet trucks from vehicles: loading platform.
The truck
ISO/FEM carriage plate, round-bar or pre-ISO, forks, three-way trucks or pedestrian stackers: the attachment is built around the vehicle that will carry it.
Fork-mounted attachments: the most common questions
At list price the fork-mounted hook starts at 500 € + VAT, crane jibs from 2,300 €, the fork-mounted jib crane from 3,500 €, coil booms from 1,600 €, frames from 2,500 €, battery change from 1,400 €; special versions are quoted on the specification.
No: fork-mounted attachments are made to order because they change with the forklift's capacity; the catalogue shows the types built.
The capacity on the plate depends on the hook position, but the limit is the residual capacity of the truck, checked free of charge with the manufacturer's tables.
Yes: every attachment is built in accordance with the Machinery Directive 2006/42/EC with CE marking, capacity plate and declaration of conformity.
