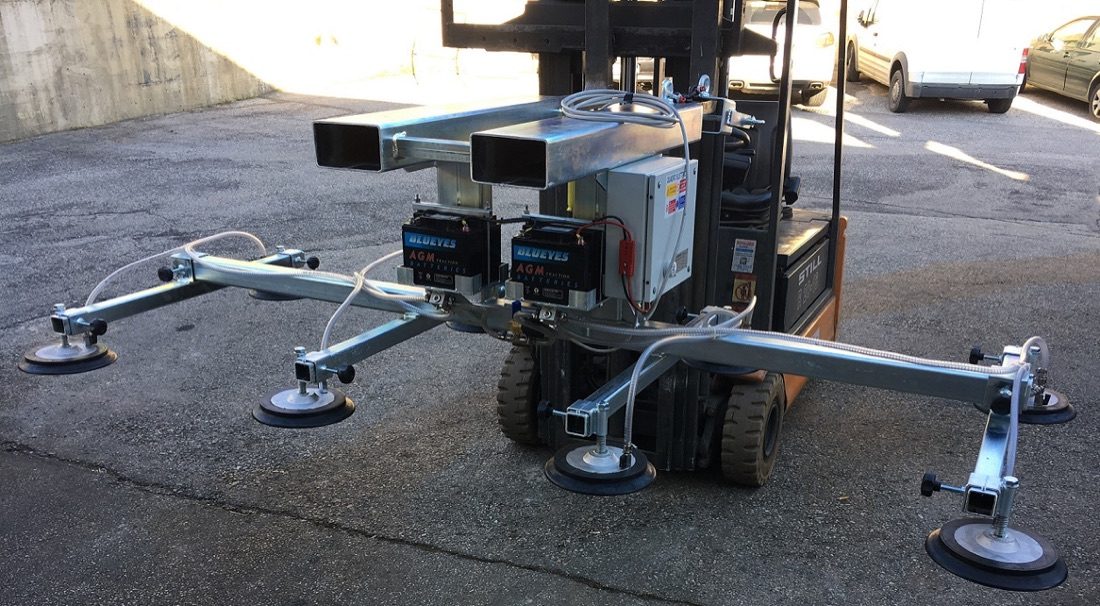

Fork-mounted battery vacuum lifter for sheet metal, for forklift trucks

The fork-mounted battery vacuum lifter slides onto the forks of the forklift and turns it into a sheet-metal lifter: the battery vacuum unit is on board, the grip is on the pads under the frame and the sheet is picked from the stack, transported and set down with no crane, no power and no slings. List price €5,500 + VAT, CE certified to 2006/42/EC.
It is the answer for those without an overhead crane above the sheet store: the forklift is already there, the lifter gives it the grip. The pads under the frame rest on the sheet, the battery pump creates the vacuum, the gauge shows the vacuum and the truck lifts; on setting down, release is from the control on the truck.
The on-board battery powers the vacuum unit for the shift; the reservoir with non-return valve maintains the grip if the pump stops and the alarm warns if the vacuum drops. No cables, no air hoses: the lifter follows the forklift all over the yard.
It is used on steel, stainless and aluminium sheets and on smooth surfaces such as polyethylene plates and panels: format, minimum thickness and capacity are defined on the customer's material. The fork pockets are sized on the truck's forks and locked with the safety chain.
It is one of the fork-mounted attachments, like forks, jib arms and buckets, and is CE certified with capacity plate: the capacity of the system remains that of the forklift with the attachment fitted, to be checked on the truck's plate.
| Type | fork-mounted vacuum lifter for forklift trucks |
| Power supply | on-board battery, self-contained vacuum unit |
| Materials | steel, stainless and aluminium sheets; plates and smooth surfaces |
| Safety | vacuum reservoir, non-return valve, vacuum gauge, alarm |
| Attachment | fork pockets with safety chain |
| Certification | CE 2006/42/EC and EN 13155, capacity plate |
Custom-built: every piece of equipment is custom-built and certified to CE 2006/42. Request a quotation for your exact configuration and capacity.
Data sheets
Fork-mounted battery vacuum lifter for sheet metal, for forklift trucks: the most common questions
The rated capacity depends on the number and diameter of the pads, sized on the sheet format and thickness; in any case the residual capacity of the truck with the attachment fitted applies. Tell us the forklift and the sheets and we give you both values.
No: the lifter has battery and pump on board. The grip and release control is on the attachment, within reach of the driver's seat.
List price €5,500 + VAT in the standard configuration; pads and format are adapted to the customer's material.
