Scissor clamps for slabs and smooth surfaces, from 300 to 1,400 kg

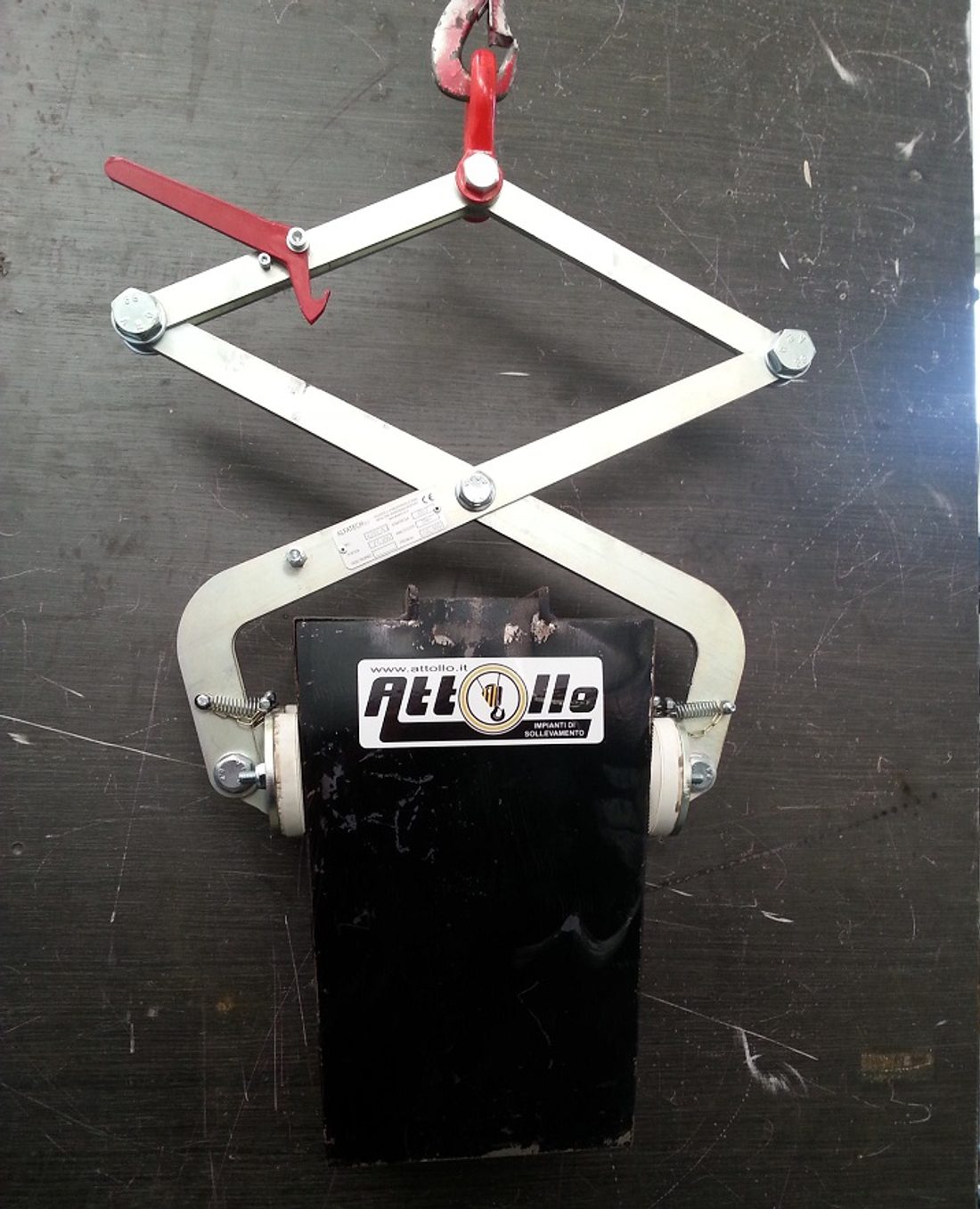

Scissor clamps pick up slabs and smooth-surfaced parts with lined jaws and a balanced grip: the scissor mechanism closes under the weight of the load and opens on setting down. Eight models in the PM and PMF series from 300 to 1,400 kg with 70 to 400 mm opening, made to measure for material and format. CE certified, list price from 500 € + VAT.
The table on the data sheet lists the models: PM-01 and PM-03 at 300 kg with 70 mm opening, PM-04 at 400 kg and PM-02 at 1,000 kg with 100 mm, PM-05 at 700 kg with 400 mm, PM-06 at 700 kg with 140 mm, PMF-08 at 600 kg with 100 mm and PMF-09 at 1,400 kg with 150 mm.
Jaws lined with rubber or with a material suited to the surface do not mark marble, glass, painted sheet metal or panels; the lining is replaced when worn.
Used singly for short parts or in pairs under a lifting beam for long slabs; the load is gripped from the edge, with the clamp aligned with the centre of gravity.
Certified to 2006/42/EC with capacity plate and certificate; for vertical sheet metal see the Terrier clamps.
| Series | PM and PMF, 8 models |
| Rated capacity | from 300 to 1,400 kg |
| Opening | from 70 to 400 mm |
| Operation | scissor, closes under load weight |
| Use | slabs and smooth surfaces |
| Build | made to measure for material and format |
| Certification | 2006/42/EC, marking and certificate |
Custom-built: every piece of equipment is custom-built and certified to CE 2006/42. Request a quotation for your exact configuration and capacity.
Scissor clamps for slabs and smooth surfaces, from 300 to 1,400 kg — models and capacities
| Type | Capacity (kg) | Max. opening (mm) |
|---|---|---|
| PM-01 | 300 | 70 |
| PM-02 | 1000 | 100 |
| PM-03 | 300 | 70 |
| PM-04 | 400 | 100 |
| PM-05 | 700 | 400 |
| PM-06 | 700 | 140 |
| PMF-08 | 600 | 100 |
| PMF-09 | 1400 | 150 |
Technical data from the Attollo catalogues. Prices and custom configurations on request.
Data sheets
Scissor clamps for slabs and smooth surfaces, from 300 to 1,400 kg: the most common questions
List price from 500 € + VAT for the small models; capacity and opening define the price.
No: the jaws are lined according to the material; the lining is replaceable.
One for short parts aligned with the centre of gravity; two under a lifting beam for long slabs.
