Grade 80 and 100 chain slings with one, two or four legs

Chain slings lift heavy loads using eyebolts and lifting points: grade 80 or 100 chain from 7 to 22 mm, with one (SOS), two (DOS) or four legs, master link and hooks with safety latch. Capacity from 1,500 kg in a straight lift (SOS 7) to 21,200 kg (DOS 22 at 90°), reduced at 120° between the legs. Certified with marked components, list price from 40 € + VAT.
The table on the data sheet gives the capacities: single-leg SOS from 1,500 kg (7 mm) to 15,000 kg (22 mm); two-leg DOS from 2,120 kg to 21,200 kg with angles up to 90° and from 1,500 to 15,000 kg at 120°; four-leg slings follow the same logic with the values on the plate.
Grade 100 carries more than grade 80 for the same diameter: lighter chains for the same capacity. Leg length, hooks (eye, swivel, with shortening hook) and master link are chosen according to the load.
The shortening hook allows the length of a leg to be adjusted to level asymmetric loads; hooks with safety latch prevent accidental unhooking.
Certified to EN 818 with capacity plate and certificate; periodic inspection and replacement when chain wear exceeds the limits.
| Grade | 80 or 100 |
| Arms | 1 (SOS), 2 (DOS) or 4 |
| Chain | from 7 to 22 mm |
| Rated capacity | from 1,500 to 21,200 kg depending on legs and angle |
| Accessories | master link, latch hooks, shortening hooks |
| Standard | EN 818, certificate and plate |
Custom-built: every piece of equipment is custom-built and certified to CE 2006/42. Request a quotation for your exact configuration and capacity.

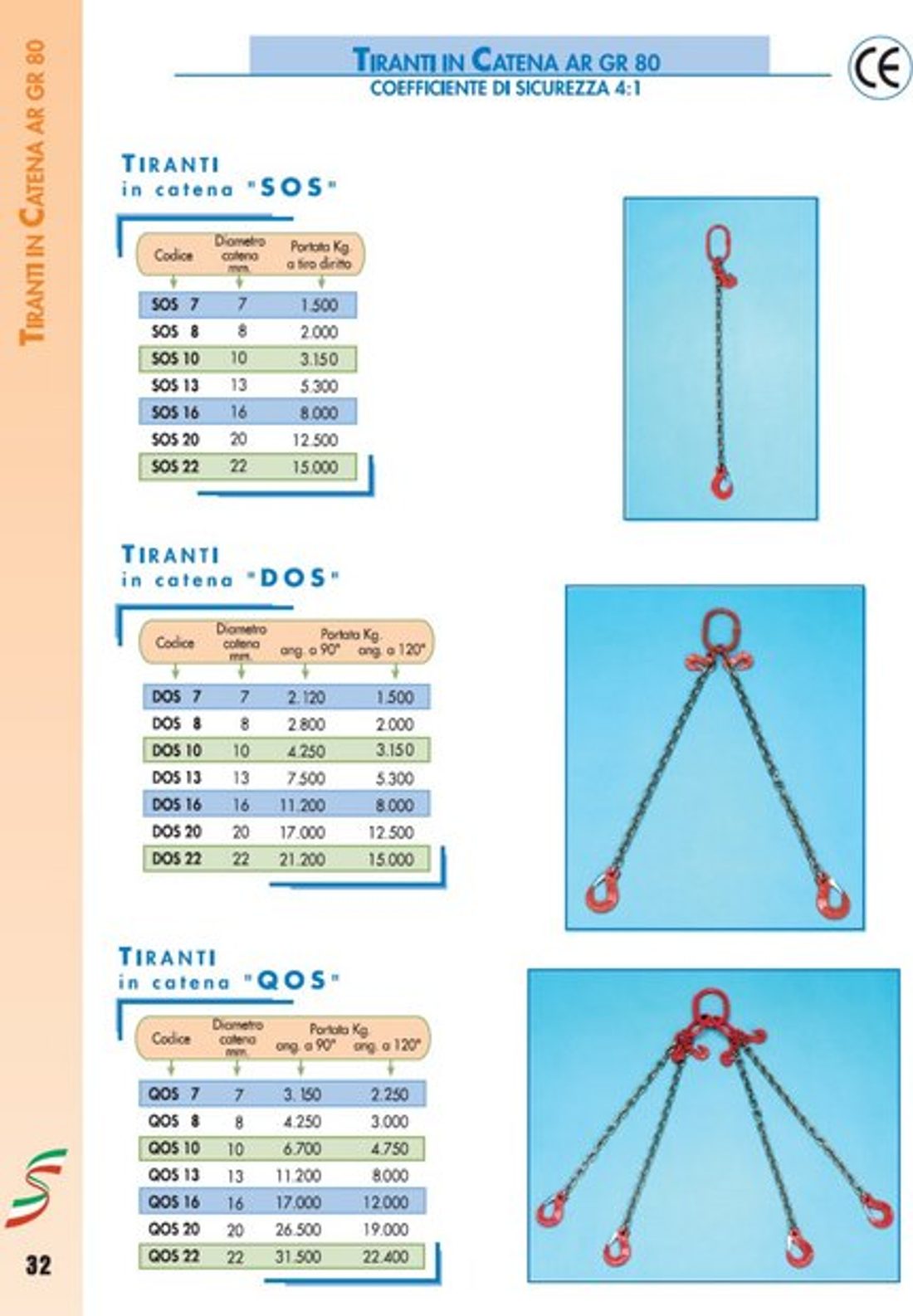

Grade 80 and 100 chain slings with one, two or four legs — models and capacities
| Code | Chain diameter (mm) | Capacity straight pull / 90° angle (kg) | Capacity 120° angle (kg) |
|---|---|---|---|
| SOS 7 | 7 | 1.500 | |
| SOS 8 | 8 | 2.000 | |
| SOS 10 | 10 | 3.150 | |
| SOS 13 | 13 | 5.300 | |
| SOS 16 | 16 | 8.000 | |
| SOS 20 | 20 | 12.500 | |
| SOS 22 | 22 | 15.000 | |
| DOS 7 | 7 | 2.120 | 1.500 |
| DOS 8 | 8 | 2.800 | 2.000 |
| DOS 10 | 10 | 4.250 | 3.150 |
| DOS 13 | 13 | 7.500 | 5.300 |
| DOS 16 | 16 | 11.200 | 8.000 |
| DOS 20 | 20 | 17.000 | 12.500 |
| DOS 22 | 22 | 21.200 | 15.000 |
| QOS 7 | 7 | 3.150 | 2.250 |
| QOS 8 | 8 | 4.250 | 3.000 |
| QOS 10 | 10 | 6.700 | 4.750 |
| QOS 13 | 13 | 11.200 | 8.000 |
| QOS 16 | 16 | 17.000 | 12.000 |
| QOS 20 | 20 | 26.500 | 19.000 |
| QOS 22 | 22 | 31.500 | 22.400 |
Technical data from the Attollo catalogues. Prices and custom configurations on request.
Data sheets
Grade 80 and 100 chain slings with one, two or four legs: the most common questions
List price from 40 € + VAT for the small models; diameter, legs, length and hooks define the price.
Because the angle between the legs increases the tension on each leg: at 120° each leg carries as much as the whole load.
Grade 100 is lighter for the same capacity; grade 80 is the more economical standard.
