Fixed lifting beams: single-beam BF series from 1,000 to 15,000 kg, for flanges and for pipes
The fixed lifting beam has an upper hook for the crane and two lower attachment points at a fixed centre distance: the simplest and sturdiest solution when the load is always the same. BF series made by Attollo in 40 models from 1,000 to 15,000 kg with centre distance from 2 to 6 metres, supplied with bow shackles; special versions for flanges and the T-beam with pipe clamps. List prices from 2,500 € + VAT.

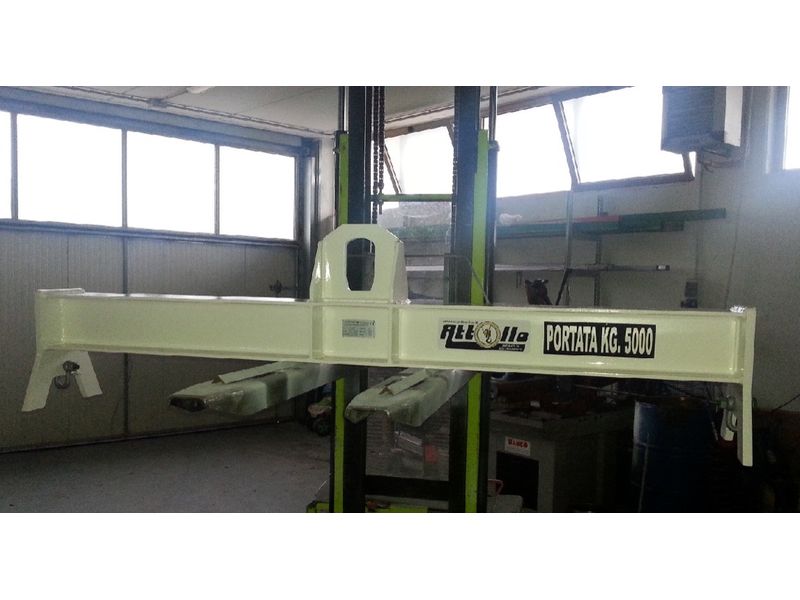

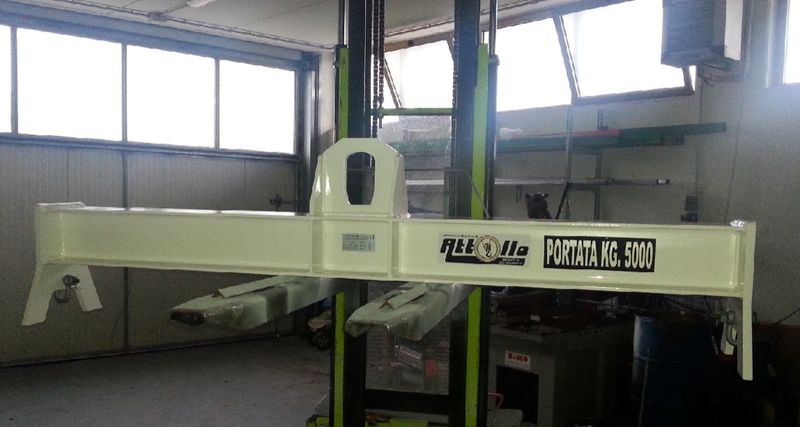

Fixed single-beam lifting beams, BF series
Steel beam with two attachment points at fixed centre distance A from 2,000 to 6,000 mm, from 1,000 to 15,000 kg: 40 models at list price, higher capacities and other dimensions on request.
Special fixed lifting beams

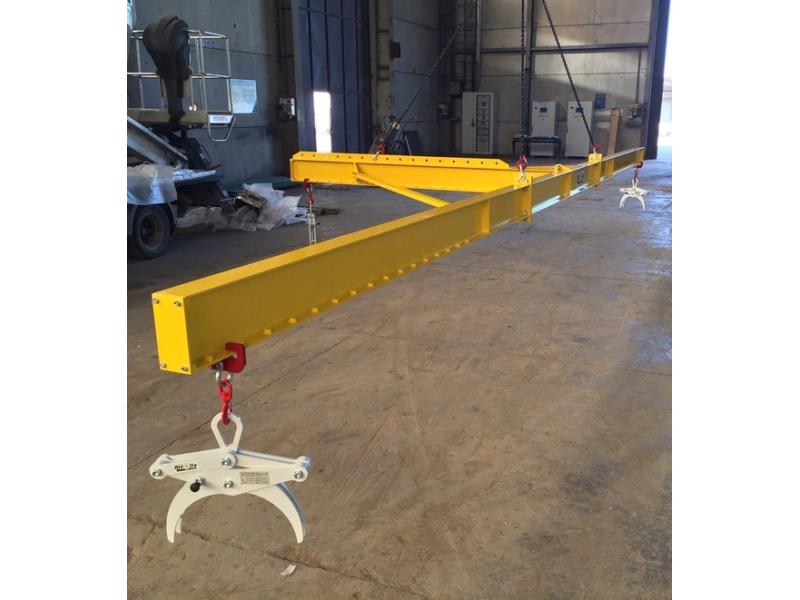

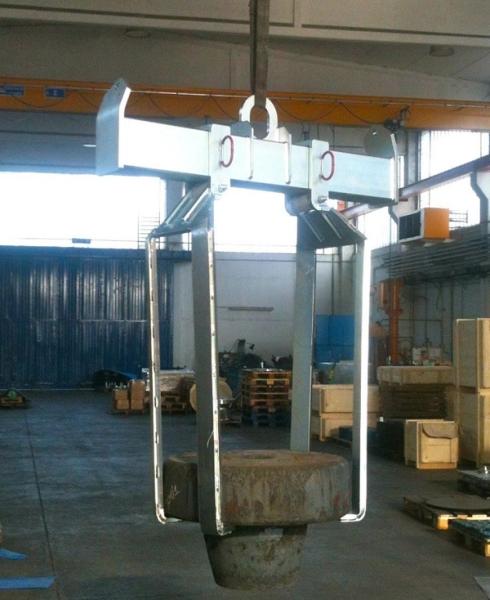

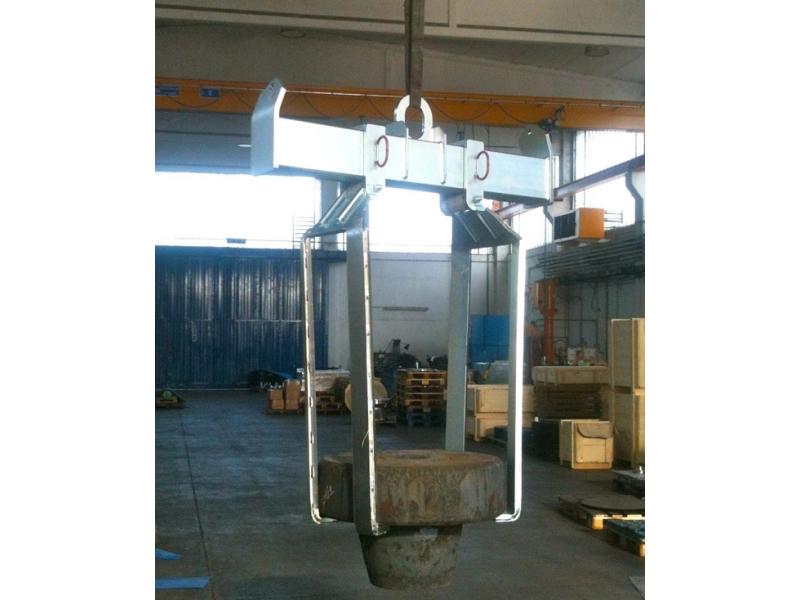

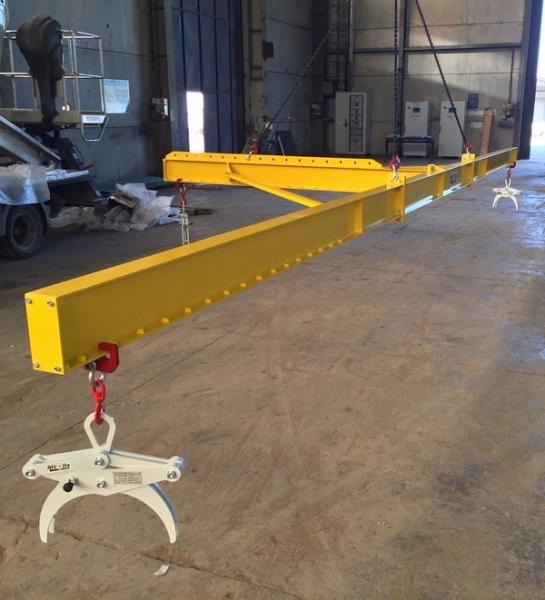

The lifting beam for flanges and rings, which takes the part through the holes of the flange, and the T-beam with pipe clamps, which grips the pipe without slings: custom-built on the customer's part.
Fixed lifting beams: models, capacities and dimensions
| Model | Rated capacity | Centre distance | Supply | Certification |
|---|---|---|---|---|
| Fixed single-beam lifting beam 5,000 kg, BF series from 1,000 to 15,000 kg | 5,000 kg (BF-52…56) | 2,000, 3,000, 4,000, 5,000 or 6,000 mm | bow shackles, primer and two coats of enamel | 2006/42/EC, capacity plate and declaration of conformity |
| Lifting beam for flanges and rings, custom-built | on the maximum flange weight, on the plate | from the flange holes, two dedicated attachments | custom-built, painted steel | 2006/42/EC, capacity plate and declaration of conformity |
| T-shaped lifting beam with pipe clamps, custom-built | on the maximum pipe weight, on the plate | pipe clamps, on T-beam | custom-built, painted steel | 2006/42/EC, capacity plate and declaration of conformity |
BF series: list capacities and centre distances
| Rated capacity | Centre distance A 2,000 mm | 3.000 mm | 4.000 mm | 5.000 mm | 6.000 mm |
|---|---|---|---|---|---|
| 1,000 kg | BF-12 | BF-13 | BF-14 | BF-15 | BF-16 |
| 2,000 kg | BF-22 | BF-23 | BF-24 | BF-25 | BF-26 |
| 3,000 kg | BF-32 | BF-33 | BF-34 | BF-35 | BF-36 |
| 4.000 kg | BF-42 | BF-43 | BF-44 | BF-45 | BF-46 |
| 5,000 kg | BF-52 | BF-53 | BF-54 | BF-55 | BF-56 |
| 6.000 kg | — | BF-63 | BF-64 | BF-65 | BF-66 |
| 8,000 kg | — | BF-83 | BF-84 | BF-85 | BF-86 |
| 10,000 kg | — | BF-103 | BF-104 | BF-105 | BF-106 |
| 15.000 kg | — | — | BF-154 | BF-155 | BF-156 |
Data from the Attollo catalogue, page 30: steel structure, primer and two coats of enamel, bow shackles as standard.
How to choose fixed lifting beams
Fixed or adjustable
If the load is always the same, the fixed lifting beam costs less and has no moving parts; if the parts change, the adjustable single-beam lifting beam is needed, with attachment points that move along the beam.
The centre distance
The attachment points go on the lifting points of the load, either side of the centre of gravity: with vertical slings the part is not crushed and the crane hook stays plumb. Centre distance A is chosen on the length of the load.
Capacity and crane
The capacity of the lifting beam is that of the heaviest load; the weight of the lifting beam adds to the load and must be checked against the capacity of the crane or overhead crane.
Special parts
Flanges, rings and pipes are better handled with a dedicated lifting beam: flanges through the holes, pipes with the clamps of the T-beam, without slipping slings.
Fixed lifting beams: the most common questions
List price for the fixed single-beam BF series starts from 2,500 € + VAT, the flange lifting beam from 2,800 € and the T-beam with pipe clamps from 6,200 €; the model is confirmed in the quotation.
From 1,000 to 15,000 kg with centre distance from 2 to 6 metres in the 40 list models; higher capacities and other dimensions are custom-built.
Yes: the lifting beams are supplied as standard with bow shackles for suspending the load; slings and chains are quoted separately.
Yes: built to the Machinery Directive 2006/42/EC, delivered with CE marking, capacity plate, declaration of conformity and manual.
