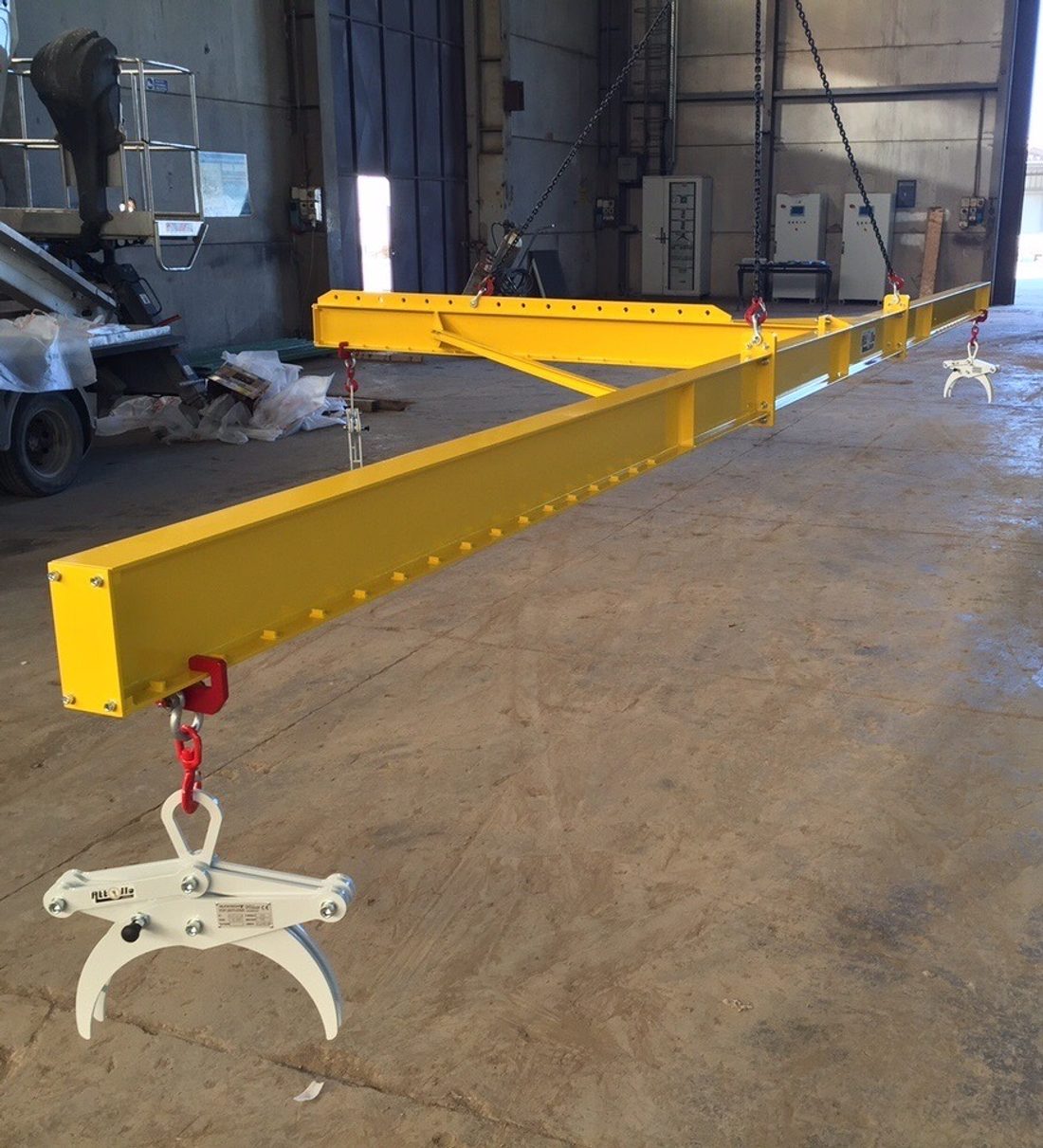

T-shaped lifting beam with pipe clamps, custom-built

The T-shaped lifting beam with pipe clamps lifts pipes without slings: the T-beam carries the clamps that close on the pipe, the load rises level and is set down on the rack or the machine without slinging and unslinging at every cycle. Special version manufactured by Attollo, sized on the diameters, lengths and weights of the customer's pipes, with swivel hook and shackles. List price from 6,200 € + VAT.
The clamps grip the pipe at two points either side of the centre of gravity: the T-beam distributes the load and keeps the pipe horizontal; the diameter range and the length are defined on the pipes to be handled.
Compared with polyester slings, which have to be threaded and removed on every pipe and slip on polished pipes, the clamp closes and opens in one movement: faster cycles and no operator under the load.
It is the lifting beam for pipe warehouses and cutting and welding departments, with overhead crane or jib crane. Steel structure with primer and two coats of enamel, swivel hook and shackles as standard.
2006/42/EC certified with capacity plate and declaration of conformity; the minimum and maximum diameter, length and maximum weight of the pipes are required.
| Grip | pipe clamps, on T-beam |
| Rated capacity | on the maximum pipe weight, on the plate |
| Diameters | range defined on the customer's pipes |
| Build | custom-built, painted steel |
| Supply | swivel hook and shackles |
| Certification | 2006/42/EC, capacity plate and declaration of conformity |
Custom-built: every piece of equipment is custom-built and certified to CE 2006/42. Request a quotation for your exact configuration and capacity.
Data sheets
T-shaped lifting beam with pipe clamps, custom-built: the most common questions
List price from 6,200 € + VAT; the price is confirmed on the diameter range, length and weight of the pipes.
No: the clamps are mechanical and close on the pipe during handling; the supply requires no connections to the crane.
Yes, within the range defined at the time of order; for very wide ranges, interchangeable clamps are provided.
