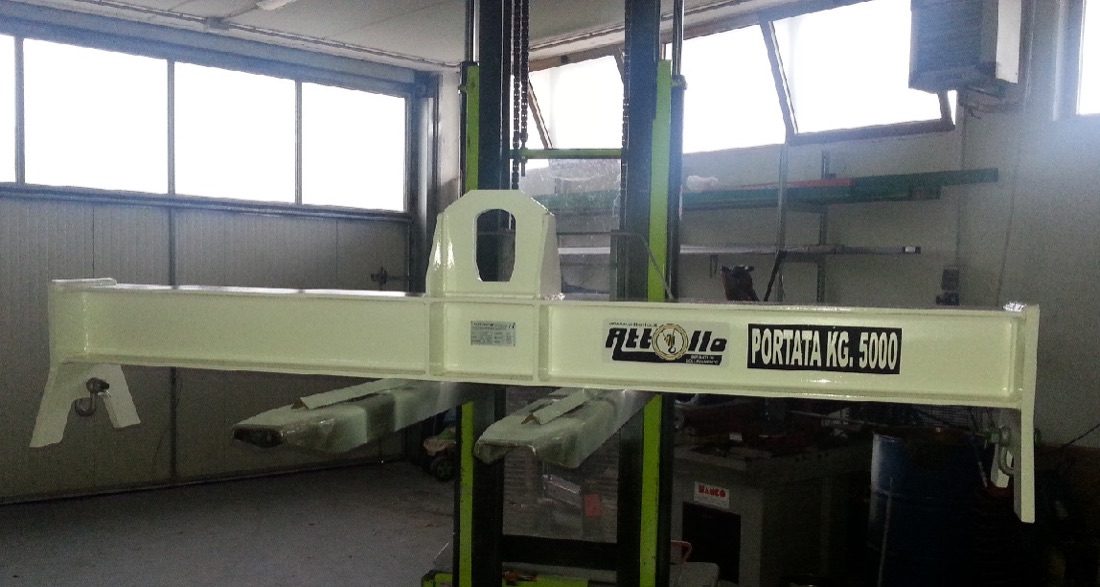

Fixed single-beam lifting beam 5,000 kg, BF series from 1,000 to 15,000 kg

The fixed single-beam lifting beam 5,000 kg has an upper hook for the crane and two lower attachment points at a fixed centre distance: the simplest and sturdiest solution when the load is always the same. BF series manufactured by Attollo, 40 models from 1,000 to 15,000 kg with centre distance from 2,000 to 6,000 mm, supplied with bow shackles. List price 2,500 € + VAT.
The table on the data sheet lists the models: for 5,000 kg BF-52, 53, 54, 55 and 56 with centre distance A of 2,000, 3,000, 4,000, 5,000 and 6,000 mm; the series covers from 1,000 kg (BF-12…16) to 15,000 kg (BF-154…156). Higher capacities and different sizes on request.
Steel structure with primer and two coats of enamel, upper hook for the crane or overhead crane, bow shackles as standard for polyester slings, chains or wire ropes.
The lifting beam keeps the sling legs vertical and the load is not squeezed: beams, bundles of sections, crates, machines with two eyebolts rise level with the crane hook plumb over the centre of gravity.
2006/42/EC certified with capacity plate and declaration of conformity; if the loads vary in length, the BR series with adjustable attachment points.
| Series | BF, 40 models from 1,000 to 15,000 kg |
| Rated capacity | 5,000 kg (BF-52…56) |
| Centre distance A | 2,000, 3,000, 4,000, 5,000 or 6,000 mm |
| Supply | bow shackles, primer and two coats of enamel |
| Structure | steel |
| Certification | 2006/42/EC, capacity plate and declaration of conformity |
Custom-built: every piece of equipment is custom-built and certified to CE 2006/42. Request a quotation for your exact configuration and capacity.
Fixed single-beam lifting beam 5,000 kg, BF series from 1,000 to 15,000 kg — models and capacities
| Model | Capacity (KG) | A (mm) |
|---|---|---|
| BF-12 | 1000 | 2000 |
| BF-52 | 5000 | 2000 |
| BF-13 | 1000 | 3000 |
| BF-53 | 5000 | 3000 |
| BF-14 | 1000 | 4000 |
| BF-54 | 5000 | 4000 |
| BF-15 | 1000 | 5000 |
| BF-55 | 5000 | 5000 |
| BF-16 | 1000 | 6000 |
| BF-56 | 5000 | 6000 |
| BF-22 | 2000 | 2000 |
| BF-63 | 6000 | 3000 |
| BF-23 | 2000 | 3000 |
| BF-64 | 6000 | 4000 |
| BF-24 | 2000 | 4000 |
| BF-65 | 6000 | 5000 |
| BF-25 | 2000 | 5000 |
| BF-66 | 6000 | 6000 |
| BF-26 | 2000 | 6000 |
| BF-32 | 3000 | 2000 |
| BF-83 | 8000 | 3000 |
| BF-33 | 3000 | 3000 |
| BF-84 | 8000 | 4000 |
| BF-34 | 3000 | 4000 |
| BF-85 | 8000 | 5000 |
| BF-35 | 3000 | 5000 |
| BF-86 | 8000 | 6000 |
| BF-36 | 3000 | 6000 |
| BF-42 | 4000 | 2000 |
| BF-103 | 10000 | 3000 |
| BF-43 | 4000 | 3000 |
| BF-104 | 10000 | 4000 |
| BF-44 | 4000 | 4000 |
| BF-105 | 10000 | 5000 |
| BF-45 | 4000 | 5000 |
| BF-106 | 10000 | 6000 |
| BF-46 | 4000 | 6000 |
| BF-154 | 15000 | 4000 |
| BF-155 | 15000 | 5000 |
| BF-156 | 15000 | 6000 |
Technical data from the Attollo catalogues. Prices and custom configurations on request.
Data sheets
Fixed single-beam lifting beam 5,000 kg, BF series from 1,000 to 15,000 kg: the most common questions
List price 2,500 € + VAT; the other BF series models are confirmed in the quotation.
On the attachment points of the load, either side of the centre of gravity: with 5 centre distances per capacity the series covers almost all pieces.
Yes: the bow shackles accept polyester slings, chains and wire ropes.
