Adjustable single-beam lifting beams: BR series from 1,000 to 15,000 kg, in steel or aluminium
The adjustable single-beam lifting beam has an upper hook for the crane and two lower attachment points that move along the beam: the same lifting beam takes loads of different length. BR series made by Attollo in 40 models from 1,000 to 15,000 kg with beam from 2.1 to 6.1 metres, supplied with bow shackles and swivel hooks; alternatively the aluminium lifting beams from 500 to 6,000 kg, light enough to be rigged by hand. List prices from 600 € + VAT.
Adjustable steel single-beam lifting beams, BR series
Steel beam with adjustable attachment points: 40 models from 1,000 to 15,000 kg, beam L from 2,100 to 6,100 mm, centre distance A from 1,000 to 6,100 mm. Supplied with bow shackles and swivel hooks.
Adjustable aluminium lifting beams
The light lifting beam from 500 to 2,000 kg, the heavy one from 1,250 to 4,000 kg and the TRC up to 6,000 kg: adjustable hooks in 50 mm steps, lengths from 0.5 to 5 m in 5 cm steps, weight starting from 6 kg.
Adjustable single-beam lifting beams: models, capacities and dimensions
| Model | Rated capacity | Length | Adjustment | Supply |
|---|---|---|---|---|

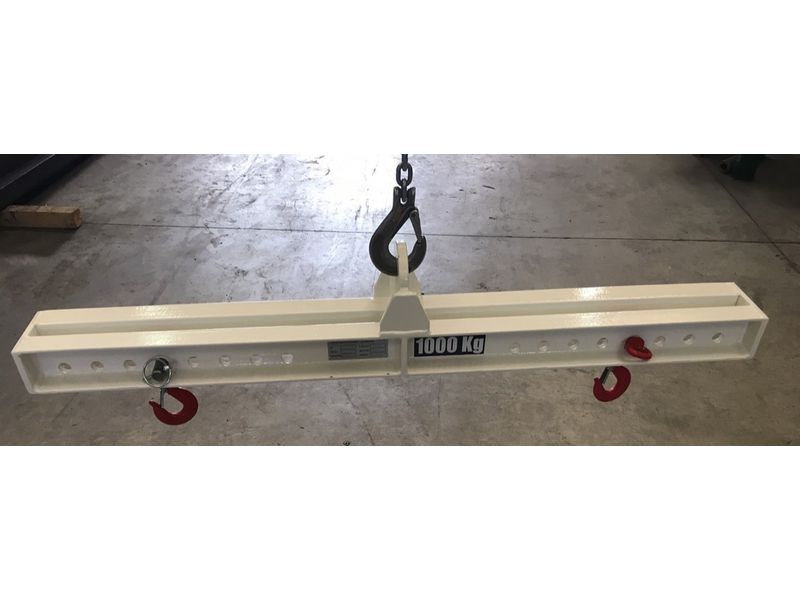

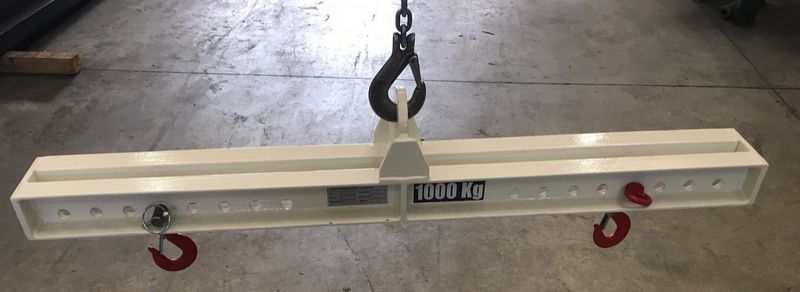

| Adjustable single-beam lifting beam 1,000 kg, BR series from 1,000 to 15,000 kg | 1,000 kg (BR-12…16) | 2,100, 3,100, 4,100, 5,100 or 6,100 mm | adjustable from half the beam to the beam length minus 100 mm | bow shackles, swivel hooks, primer and two coats of enamel |
| Light aluminium cross-beam for H-frame lifting beam | 2,000 kg up to 1 m · 750 kg at 4 m · 500 kg at 5 m | from 0.5 to 5 m, in 0.05 m increments | adjustable, spacing from 100 mm in 50 mm increments | from 6 kg |
| Heavy adjustable aluminium lifting beam | 4,000 kg up to 1 m · 2,500 kg at 3 m · 1,250 kg at 5 m | from 0.5 to 5 m, in 0.05 m increments | adjustable, spacing from 100 mm in 50 mm increments | beam and lower attachment in aluminium, central attachment in powder-coated galvanized steel |
| Heavy-duty aluminium cross-beam (TRC) | 6,000 kg up to 1 m · 4,000 kg at 3 m · 2,000 kg at 5 m | from 0.5 to 5 m, in 0.05 m increments | adjustable, spacing from 100 mm in 50 mm increments | 22.1 kg (1 m) · 54.1 kg (3 m) · 86.1 kg (5 m) |
BR series: list capacities and dimensions
| Rated capacity | Beam L | Centre distance A min-max | Models |
|---|---|---|---|
| 1,000 kg | 2.100 – 6.100 mm | 1.000 – 6.000 mm | BR-12 · 13 · 14 · 15 · 16 |
| 2,000 kg | 2.100 – 6.100 mm | 1.000 – 6.000 mm | BR-22 · 23 · 24 · 25 · 26 |
| 3,000 kg | 2.100 – 6.100 mm | 1.000 – 6.000 mm | BR-32 · 33 · 34 · 35 · 36 |
| 4.000 kg | 2.100 – 6.100 mm | 1.000 – 6.000 mm | BR-42 · 43 · 44 · 45 · 46 |
| 5,000 kg | 2.100 – 6.100 mm | 1.000 – 6.000 mm | BR-52 · 53 · 54 · 55 · 56 |
| 6.000 kg | 3.100 – 6.100 mm | 1.500 – 6.100 mm | BR-63 · 64 · 65 · 66 |
| 8,000 kg | 3.100 – 6.100 mm | 1.500 – 6.000 mm | BR-83 · 84 · 85 · 86 |
| 10,000 kg | 3.100 – 6.100 mm | 1.500 – 6.000 mm | BR-103 · 104 · 105 · 106 |
| 15.000 kg | 4.100 – 6.100 mm | 2.000 – 6.000 mm | BR-154 · 155 · 156 |
Data from the Attollo catalogue, page 31: for each model, centre distance A adjusts from half the beam to the full beam. Painted steel structure, bow shackles and swivel hooks as standard.
How to choose adjustable single-beam lifting beams
When adjustment is needed
If the loads change length from one lift to the next, the adjustable attachment points centre the grip on the centre of gravity without changing lifting beam; with a load that is always the same, the fixed lifting beam is enough.
Beam length
Beam L is chosen on the longest load: the maximum centre distance is the beam less 100 mm, the minimum is half. With 5 lengths per capacity, the BR series covers almost all parts.
Steel or aluminium
For the same capacity, aluminium weighs a fraction: the light lifting beam starts from 6 kg and is rigged by hand, and the weight saved remains useful capacity at the hook. Steel costs less and withstands heavy duty cycles.
Dead weight and crane
The weight of the lifting beam adds to the load: with jib cranes and hoists at the limit of their capacity, aluminium or a shorter beam is the better choice.
Adjustable single-beam lifting beams: the most common questions
List price for the BR series starts from 600 € + VAT for 1,000 kg; the aluminium lifting beams start from 200 € (light) and 1,000 € (heavy). The exact model is confirmed in the quotation.
From 1,000 to 15,000 kg in the 40 list models, with beam from 2.1 to 6.1 metres; higher capacities and other dimensions are custom-built in Milan.
Bow shackles and swivel hooks for load suspension, anti-rust primer and two coats of enamel, CE marking, identification plate and declaration of conformity.
No: the attachment points are moved with the lifting beam unloaded and locked before lifting; adjustment with the load suspended is prohibited.
Yes: built to Machinery Directive 2006/42/EC, with CE marking, capacity plate, declaration of conformity and manual.
