Cross spreaders: for big bags, boats and four-point loads
The cross spreader keeps the four sling legs at the right distance: the attachment points are at the ends of the arms and the load, whether big bag, bulk bag or boat, stays balanced without being squeezed. BX series for 1,000 and 2,000 kg big bags, collapsible telescopic crosses for hauling 8 and 10 tonne boats, custom-built square spreader, all manufactured by Attollo. List prices from 600 € + VAT.

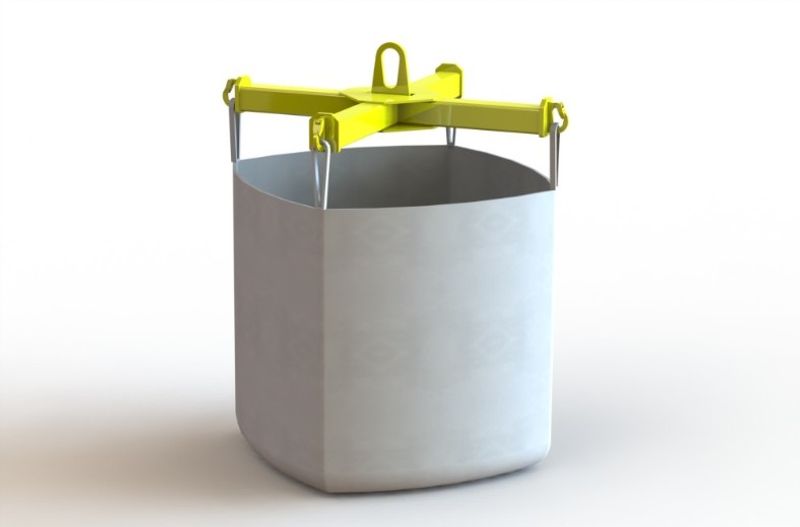

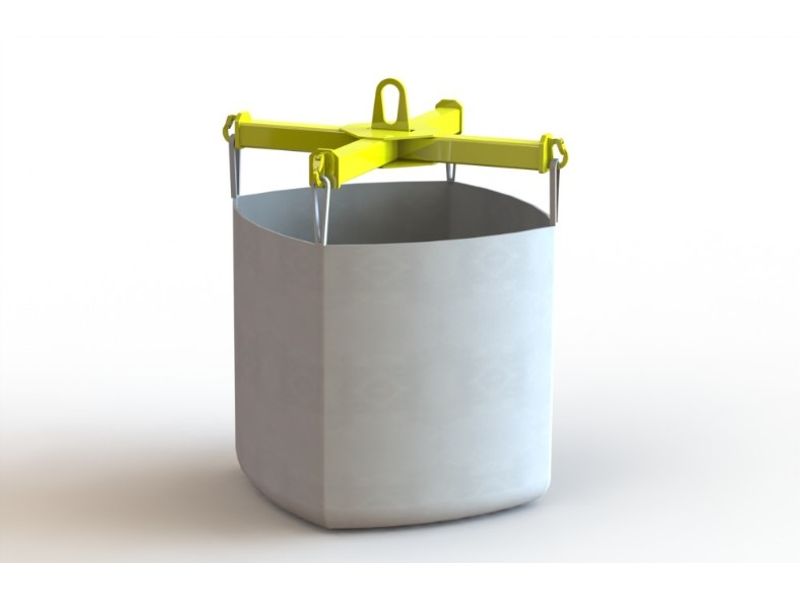

Cross lifting beams for big bags, BX series
Eight models of 1,000 and 2,000 kg with arms A from 950 to 1,750 mm and B from 650 to 1,200 mm, height 210-250 mm and weight from 28 to 72 kg: the four loops of the bag stay taut and the big bag does not swing.

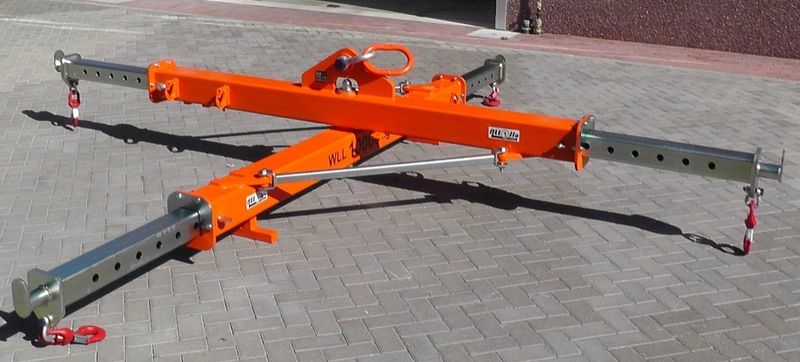

Telescopic crosses for boats
The arms extend to the width of the hull and the cross folds up for storage: 8 and 10 tonne versions, for hauling and launching with cranes and gantries.

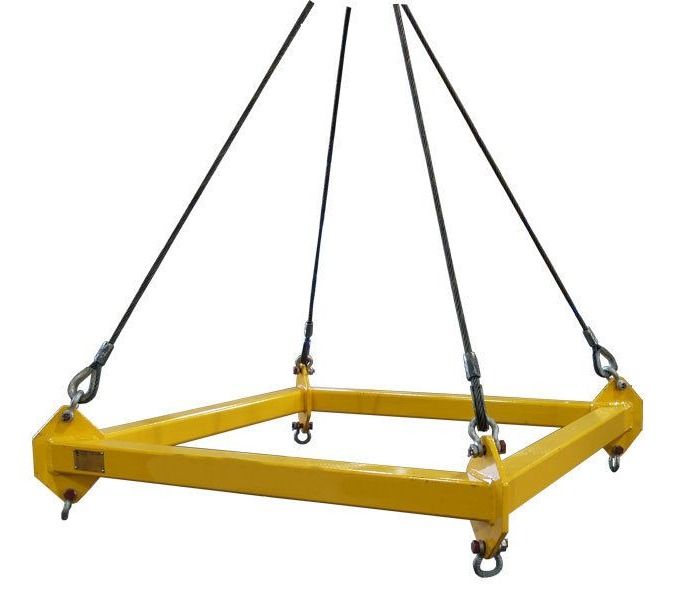

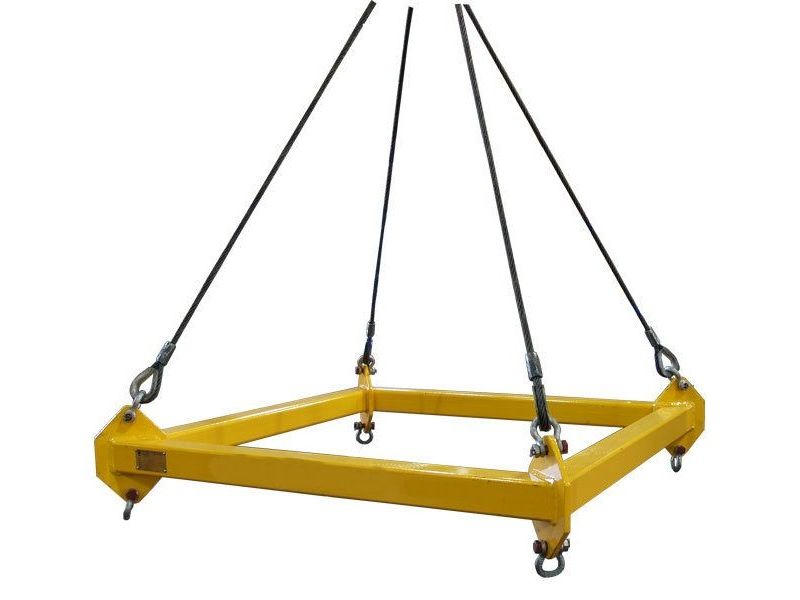

Square and rectangular spreaders
The closed frame for loads that need four vertical sling legs: skids, cabins, crates. Custom-built to the load.
Cross spreader: models, capacities and dimensions
| Model | Rated capacity | Arms | Build | Use |
|---|---|---|---|---|
| Cross lifting beam for big bags, BX series 1,000 and 2,000 kg | 1,000 kg (BX1) or 2,000 kg (BX2) | from 950 × 650 to 1,750 × 1,200 mm | from 210 to 250 mm | big bags, bulk bags |

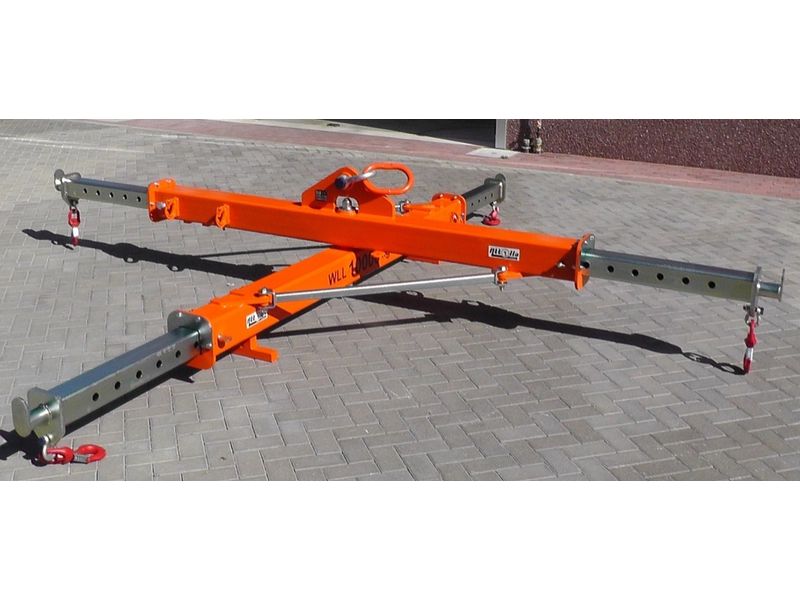

| Foldable telescopic cross lifting beam for boats up to 10 tonnes | up to 10,000 kg | telescopic, pin-adjustable, foldable | steel painted for marine climate | hauling and launching boats |

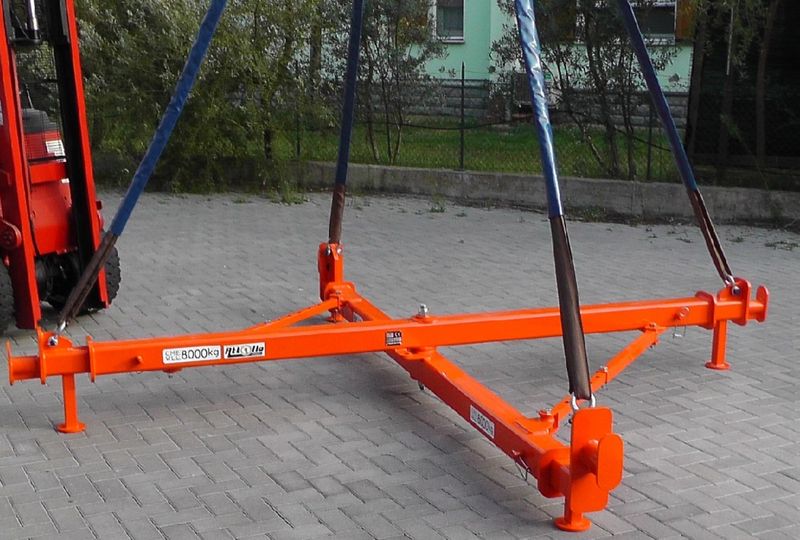

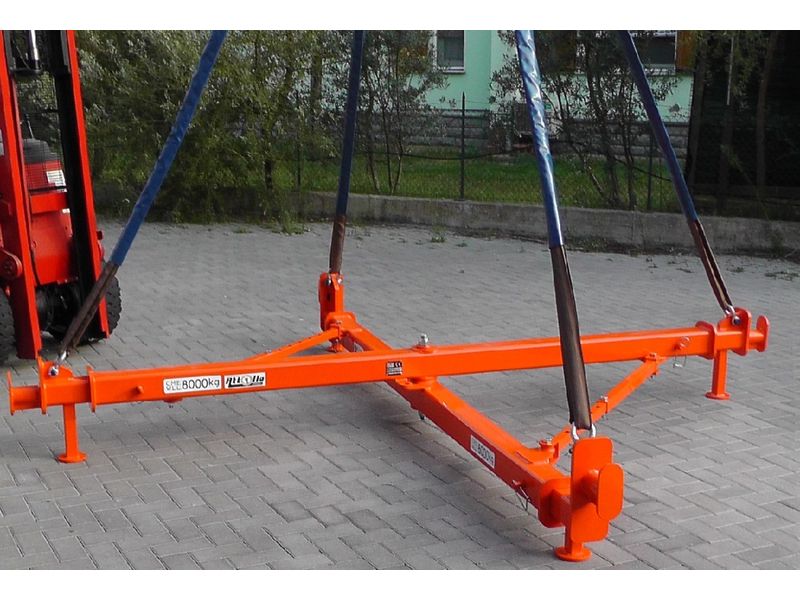

| Foldable cross spreader for boats up to 8 tonnes | up to 8,000 kg | telescopic, pin-adjustable, foldable | steel painted for marine climate | hauling and launching boats |

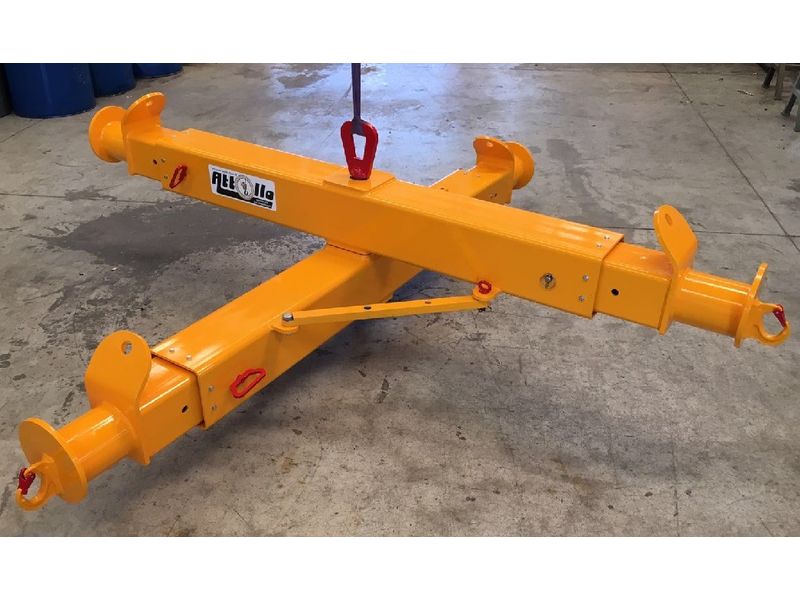

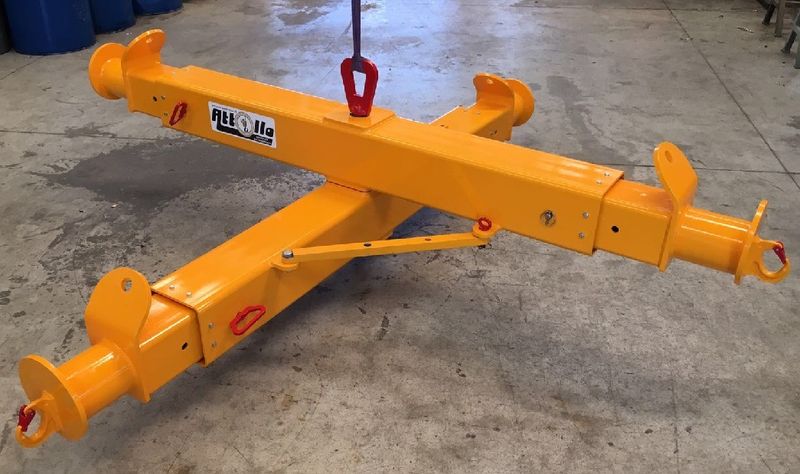

| Adjustable telescopic cross lifting beam up to 10 tonnes | up to 10,000 kg | telescopic, pin-adjustable, foldable | painted steel | skids, cabins, crates, boats |
| Square spreader beam, custom-built | on the load, on the plate | square or rectangular frame, four corner attachment points | custom-built, painted steel | skids, cabins, crates, big bags |
BX series for big bags: models, dimensions and weights
| Model | Rated capacity | A | B | Height H | Weight |
|---|---|---|---|---|---|
| BX1-950 | 1,000 kg | 950 mm | 650 mm | 210 mm | 28 kg |
| BX1-1150 | 1,000 kg | 1.150 mm | 800 mm | 210 mm | 34 kg |
| BX1-1450 | 1,000 kg | 1.450 mm | 1.000 mm | 210 mm | 40 kg |
| BX1-1750 | 1,000 kg | 1.750 mm | 1.200 mm | 230 mm | 52 kg |
| BX2-950 | 2,000 kg | 950 mm | 650 mm | 230 mm | 38 kg |
| BX2-1150 | 2,000 kg | 1.150 mm | 800 mm | 230 mm | 44 kg |
| BX2-1450 | 2,000 kg | 1.450 mm | 1.000 mm | 230 mm | 60 kg |
| BX2-1750 | 2,000 kg | 1.750 mm | 1.200 mm | 250 mm | 72 kg |
Data from the Attollo catalogue, page 37. Boat crosses and square spreaders are sized to the hull or the load.
How to choose cross spreader
Cross or lifting beam
In the spreader the upper attachment points are at the ends of the arms and the sling legs rise vertically: the load is not squeezed. In the lifting beam the hook is at the centre and the sling legs go down: for rigid loads with eyebolts.
Big bags: the size
A and B of the cross are chosen on the loops of the bag: with the loops taut the big bag lifts level and does not swing. BX1 series for bags up to 1,000 kg, BX2 up to 2,000 kg.
Boats: telescopic and collapsible
Hull width varies from boat to boat: the telescopic arms adjust, and when folded the spreader takes up little storage space. Lifting slings for boats are quoted together with the cross.
Square-shaped loads
Skids, cabins and crates with four points at the corners need the square or rectangular spreader, built to the dimensions of the load.
Cross spreader: the most common questions
At list price the cross lifting beam for big bags starts from 600 € + VAT; telescopic crosses for boats from 4,000 € (8 t) and 4,500 € (10 t), the square spreader from 2,800 €. The model is confirmed in the quotation.
From 28 kg (BX1-950) to 72 kg (BX2-1750), depending on capacity and size: the series table lists every model.
Yes, with suitable sling legs, but for bags the dedicated BX series is preferable: lighter and sized to the loops.
Yes: built to the Machinery Directive 2006/42/EC, delivered with CE marking, capacity plate, declaration of conformity and manual.
