C-hooks for coils: GC series from 5,000 to 30,000 kg, also with motorised rotation

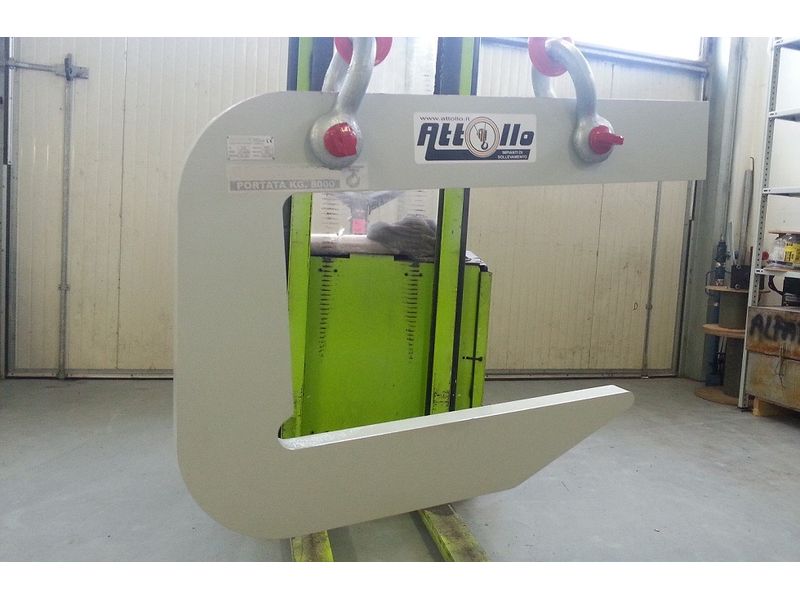

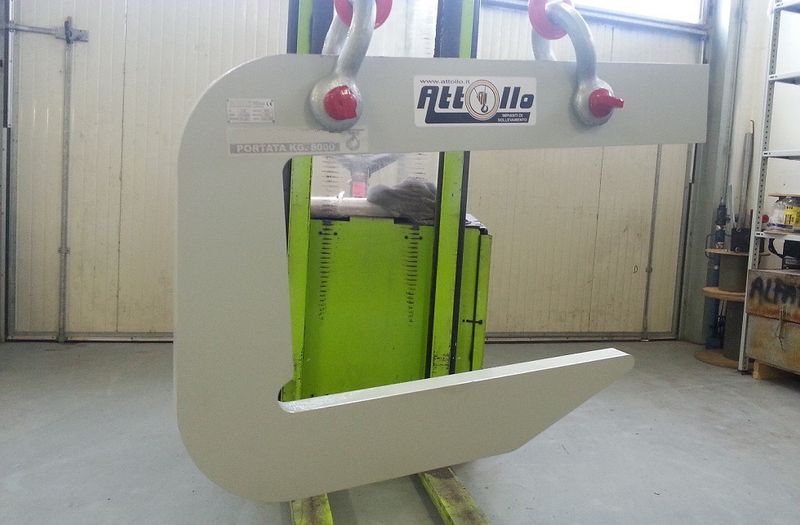

The C-hook slides into the bore of the coil and lifts it without slings: the lower arm enters the bore, the counterweight balances the empty hook and the handle guides it during handling. GC series manufactured by Attollo in six models from 5,000 to 30,000 kg, built for continuous duty, also with 360° motorised rotation for coils with horizontal-axis bore. List prices from 3,200 € + VAT.
C-hooks for coils, GC series
Six models from 5,000 to 30,000 kg with arm S from 200 to 400 mm, height H from 550 to 900 mm and length L from 800 to 1,500 mm; weight from 255 to 1,815 kg. Balanced with counterweight and fitted with a handling handle; 360° motorised rotation on request.
C-hook for coils: models, capacities and dimensions
| Model | Rated capacity | Arm | Weight | Supplied with |
|---|---|---|---|---|
| C-hook for coils, GC series from 5,000 to 30,000 kg | from 5,000 to 30,000 kg | from 200 to 400 mm | from 255 to 1,815 kg | balancing counterweight, handling handle |
GC series: models, dimensions and weights
| Model | Rated capacity | S | H | L | Weight |
|---|---|---|---|---|---|
| GC-5 | 5,000 kg | 200 mm | 550 mm | 800 mm | 255 kg |
| GC-10 | 10,000 kg | 300 mm | 700 mm | 1.250 mm | 690 kg |
| GC-15 | 15.000 kg | 310 mm | 700 mm | 1.250 mm | 950 kg |
| GC-20 | 20,000 kg | 350 mm | 900 mm | 1.500 mm | 1.260 kg |
| GC-25 | 25.000 kg | 370 mm | 900 mm | 1.500 mm | 1.670 kg |
| GC-30 | 30,000 kg | 400 mm | 900 mm | 1.500 mm | 1.815 kg |
Data from the Attollo catalogue, page 38: S is the width of the arm that enters the bore, H the clear height above the arm, L the working length of the arm.
How to choose c-hook for coils
The coil bore
Arm S must enter the bore with clearance and length L must cover the width of the coil: the model is chosen on the inner diameter and the maximum width of the coils.
Capacity and dead weight
The capacity is that of the heaviest coil; the weight of the hook, from 255 to 1,815 kg, adds to the load and must be checked against the capacity of the overhead crane.
Bore axis
For coils with horizontal-axis bore the hook enters from the side; if the coil must be turned or presented to the machine in a different direction, 360° motorised rotation avoids manual handling.
Continuous duty
In steelworks and service centres the hook works on every cycle: the construction is sized for continuous duty, with a counterweight that keeps the empty hook level and a handle to guide it.
C-hook for coils: the most common questions
List price from 3,200 € + VAT for the small models; the model is chosen on the bore and the weight of the coils and confirmed in the quotation, with motorised rotation on request.
Six models from 5,000 to 30,000 kg; other capacities and dimensions are custom-built in Milan.
Yes: the counterweight keeps the hook level when empty, so the arm enters the bore straight and the hook does not tip up on release.
Yes: built to Machinery Directive 2006/42/EC, with CE marking, capacity plate, declaration of conformity and manual.
