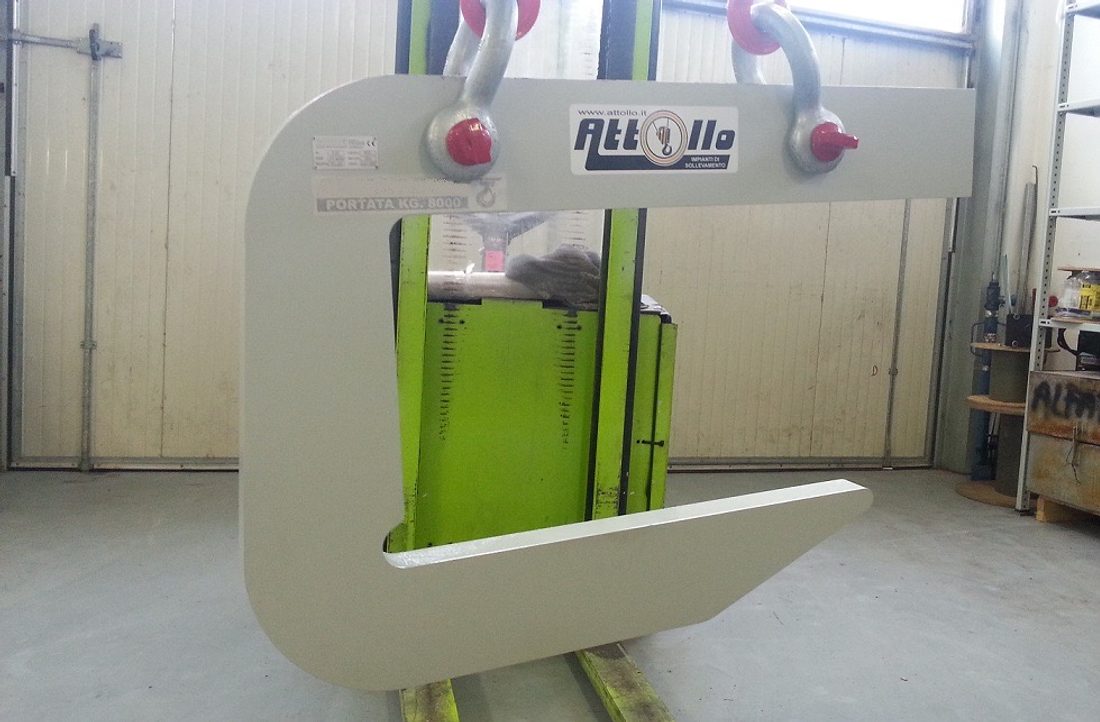

C-hook for coils, GC series from 5,000 to 30,000 kg

The C-hook for coils picks the coil up through its bore without slings: the lower arm enters the bore, the counterweight keeps the hook level when empty and the handle guides it during handling, also from a distance. GC series made by Attollo in six models from 5,000 to 30,000 kg, built for continuous service, with 360° motorised rotation on request. List price from 3,200 € + VAT.
The table on the data sheet lists the models: GC-5 of 5,000 kg with arm S 200 mm, H 550 mm, L 800 mm and 255 kg weight; GC-10 and GC-15 with L 1,250 mm; GC-20, 25 and 30 with S from 350 to 400 mm, H 900 mm, L 1,500 mm and weight up to 1,815 kg. The model is chosen on the bore and the width of the coils.
The counterweight balances the empty hook, so the arm enters the bore straight and the hook does not tip up on release; the handle allows it to be positioned without putting hands under the load. Steel structure with primer and two coats of enamel.
For coils with a horizontal bore the hook enters from the side by overhead crane; with 360° motorised rotation the coil is turned and presented to the machine in the required direction, without manual handling.
Certified 2006/42/EC with capacity plate and declaration of conformity; other capacities and dimensions on request, coated arm for coils with delicate surfaces.
| Series | GC, 6 models |
| Rated capacity | from 5,000 to 30,000 kg |
| Arm S | from 200 to 400 mm |
| Sizes | H from 550 to 900 mm · L from 800 to 1,500 mm |
| Weight | from 255 to 1,815 kg |
| Supplied with | balancing counterweight, handling handle |
| Rotation | 360° motorised, on request |
| Certification | 2006/42/EC, capacity plate and declaration of conformity |
Custom-built: every piece of equipment is custom-built and certified to CE 2006/42. Request a quotation for your exact configuration and capacity.
C-hook for coils, GC series from 5,000 to 30,000 kg — models and capacities
| Model | Capacity (kg) | S (mm) | H (mm) | L (mm) | Weight (KG) |
|---|---|---|---|---|---|
| GC-5 | 5000 | 200 | 550 | 800 | 255 |
| GC-10 | 10000 | 300 | 700 | 1250 | 690 |
| GC-15 | 15000 | 310 | 700 | 1250 | 950 |
| GC-20 | 20000 | 350 | 900 | 1500 | 1260 |
| GC-25 | 25000 | 370 | 900 | 1500 | 1670 |
| GC-30 | 30000 | 400 | 900 | 1500 | 1815 |
Technical data from the Attollo catalogues. Prices and custom configurations on request.
Data sheets
C-hook for coils, GC series from 5,000 to 30,000 kg: the most common questions
List price from 3,200 € + VAT for the small models; the model is chosen on the bore and the weight of the coils and confirmed in the quotation.
Arm S must enter the bore with clearance and L must cover the width of the coil; the capacity is that of the heaviest coil.
Only if the coil has to be turned during handling: otherwise the standard hook with counterweight and handle is enough.
