Single-beam spreaders: fixed, telescopic and for boat hauling, up to 40 tonnes
The single-beam spreader keeps the sling legs of the load apart: the upper attachment points are at the ends of the beam and the slings, in wire rope, chain or polyester, rise vertically without squeezing skids, containers and bulky masses. Attollo versions of 40 tonnes, the boat hauling lifting beam telescopic on all axes of 20+20 tonnes and the aluminium spreaders of 3,000-3,500 kg, modular or telescopic. List prices from 900 € + VAT.
Steel single-beam spreaders

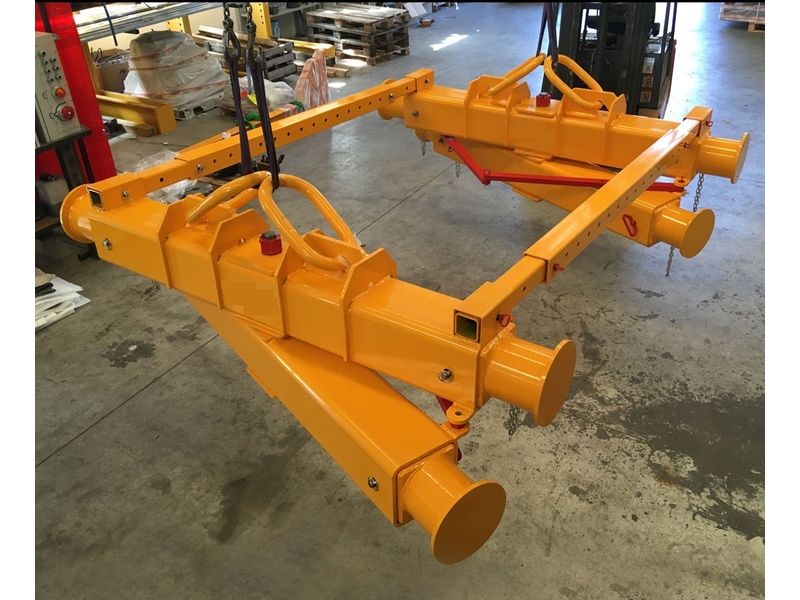

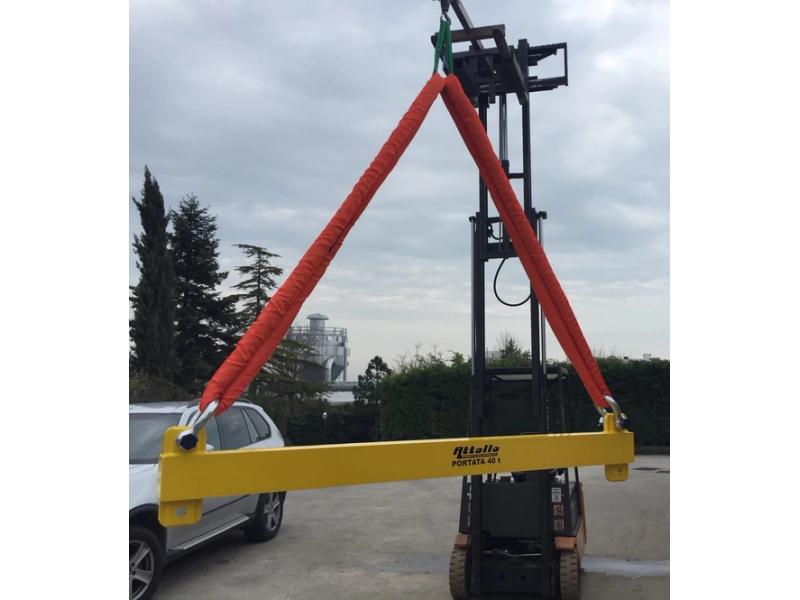

The 40 tonne spreader for skids, containers and bulky masses with wire rope, chain or polyester sling legs, and the collapsible boat hauling lifting beam, telescopic on all axes, of 20+20 tonnes.
Aluminium spreaders
The 3,000 kg modular telescopic spreader with length from 0.5 to 7 m in modules, the 3,000 kg fixed adjustable spreader with sliding hooks on a 3.5 or 5 m beam, and the 3,500 kg one-piece expandable spreader with telescopic beam from 1.5 to 7 m.
Single-beam spreaders: models, capacities and dimensions
| Model | Rated capacity | Length | Build | Use |
|---|---|---|---|---|

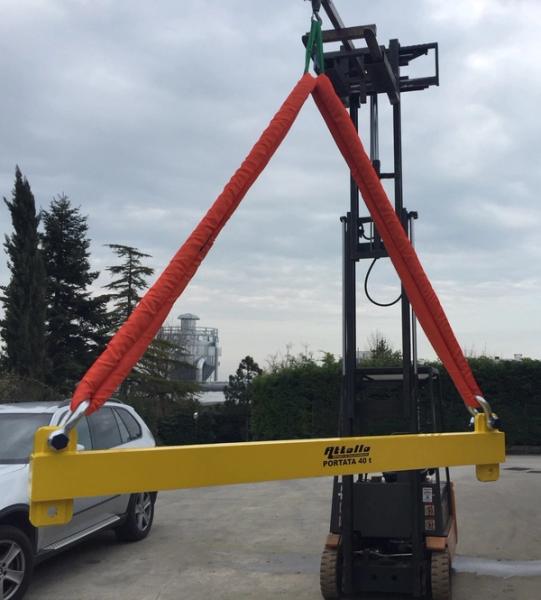

| Single-beam spreader beam up to 40 tonnes | up to 40,000 kg | — | custom-built, painted steel | skids, containers, bulky loads |
| Boat hauling lifting beam telescopic on all axes, 20+20 tonnes | 20 + 20 tonnes (two suspension points) | telescopic on all axes, pin-locked | foldable, steel painted for marine environment | hauling and launching of large boats |
| Modular telescopic aluminium spreader | 3,000 kg | from 0.5 to 7 m, built up from modules | aluminium beam, end elements in powder-coated galvanized steel | — |
| Fixed adjustable aluminium spreader | 3,000 kg | 3.5 m or 5.0 m | sliding along the beam, 7 adjustment holes per side | — |
| One-piece expanding aluminium spreader | 3,500 kg | from 1.5 to 7 m, in 0.5 m increments | aluminium beam, end elements in powder-coated aluminium, galvanized steel shackles | max 30° from vertical |
The versions: steel and aluminium compared
| Build | Rated capacity | Length | Adjustment | Use |
|---|---|---|---|---|
| Steel spreader | up to 40 t | made to measure | fixed | skids, containers, bulky loads |
| Boat hauling lifting beam 20+20 t | 20 + 20 t | telescopic on all axes | collapsible | hauling and launching boats |
| Modular telescopic, aluminium | 3,000 kg | 0.5 – 7 m in modules | 0.5 / 1 / 2 m modules | pieces of varying length |
| Fixed adjustable, aluminium | 3,000 kg | 3.5 or 5 m | sliding hooks, 7 holes per side, 80 mm pitch | asymmetric loads |
| One-piece expandable, aluminium | 3,500 kg | 1.5 – 7 m in 0.5 m steps | telescopic, 3 holes per side | constantly changing formats |
The steel versions are built in Milan to the customer's load; the aluminium spreaders belong to the aluminium line and are rigged by hand.
How to choose single-beam spreaders
Spreader or lifting beam
The spreader is used when the sling legs must rise vertically from the corners of the load, as with skids, containers and hulls; the lifting beam when the crane hook must stay at the centre above a rigid load.
Capacity and sling legs
The capacity is that of the heaviest load plus the sling legs; with polyester slings, chains or wire ropes the beam must be sized to the sling angles. Above 40 tonnes the spreader is custom-designed.
Boats

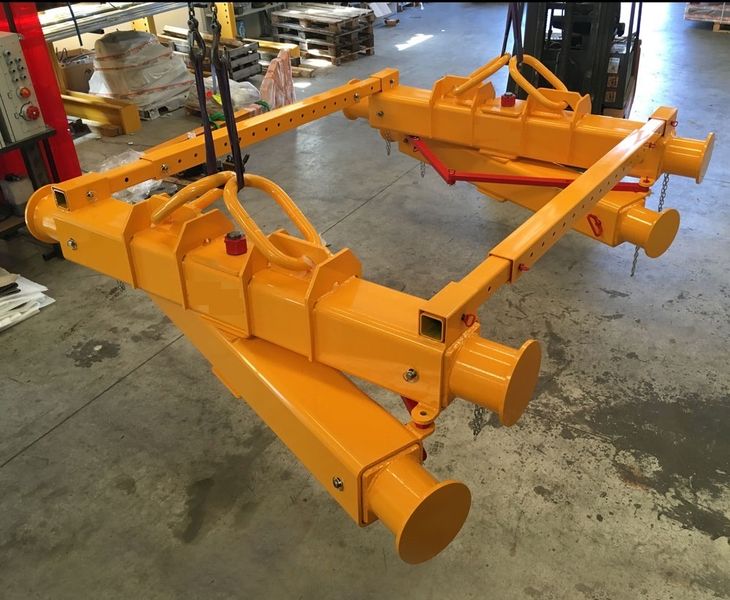

For hauling, hull width and length vary: the lifting beam, telescopic on all axes, adjusts and folds up for storage; the slings are quoted together with the lifting beam.
Aluminium for site work
Up to 3,500 kg the aluminium spreader is carried by hand and adapts: in modules, with sliding hooks or telescopic, depending on how much the formats change.
Single-beam spreaders: the most common questions
At list price the 40 tonne spreader starts from 3,200 € + VAT, the 20+20 t boat hauling lifting beam from 6,500 €; the aluminium spreaders from 900 to 1,200 €. The model is confirmed in the quotation.
That the boat hauling lifting beam carries 20 tonnes at each of the two suspension points, for hulls lifted with two cranes or a gantry with two hoists.
Wire rope, chain or polyester depending on the load: polyester slings for boats, chains or wire ropes for skids and containers; they are quoted together with the spreader.
Yes: built to Machinery Directive 2006/42/EC, with CE marking, capacity plate, declaration of conformity and manual.
