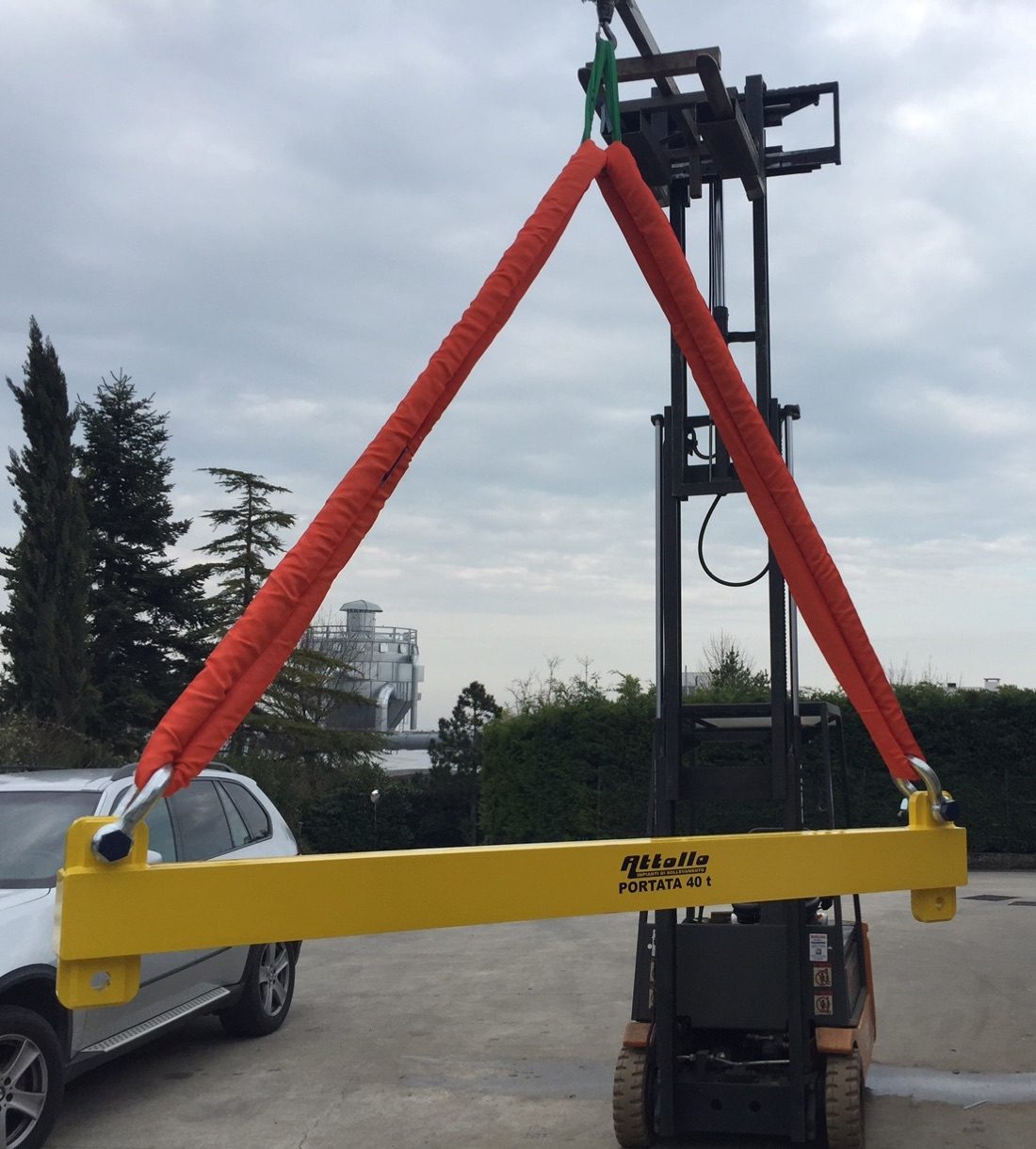

Single-beam spreader beam up to 40 tonnes

Single-beam spreader beam up to 40 tonnes
Single-beam spreaders

The spreader beam up to 40 tonnes keeps the sling legs of the load apart: the upper attachment points are at the ends of the beam, the wire rope, chain or polyester slings rise vertically from the eyebolts, and skids, containers, transformers and bulky loads are lifted without being squeezed. Attollo steel construction, sized to the load. List price from 3,200 € + VAT.

The beam works in compression between the two upper sling legs and carries the lower attachment points at a fixed or adjustable centre distance: the length is defined by the centre distance of the attachment points, the section by the capacity and the sling angles.

Without a spreader beam, V-shaped slings squeeze the load and stress it horizontally; with the spreader beam the sling legs are vertical and the load rises level, a requirement for industrial installations and abnormal transports.

Used with overhead cranes, mobile cranes and gantry cranes, alone or in pairs for four-point loads; steel structure with primer and two coats of enamel, upper and lower attachment points for shackles.

Certified 2006/42/EC with capacity plate and declaration of conformity; the load weight, the centre distance of the attachment points and the type of slings are required.

Rated capacityup to 40,000 kg
Geometrysingle beam, upper attachment points at the ends
Centre distancefixed or adjustable, to suit the load
Buildcustom-built, painted steel
Useskids, containers, bulky loads
Certification2006/42/EC, capacity plate and declaration of conformity
€ 3.200 + VAT

Custom-built: every piece of equipment is custom-built and certified to CE 2006/42. Request a quotation for your exact configuration and capacity.

Data sheets

Frequently asked questions

Single-beam spreader beam up to 40 tonnes: the most common questions

List price from 3,200 € + VAT for the smallest versions; the price is confirmed on capacity and centre distance.
