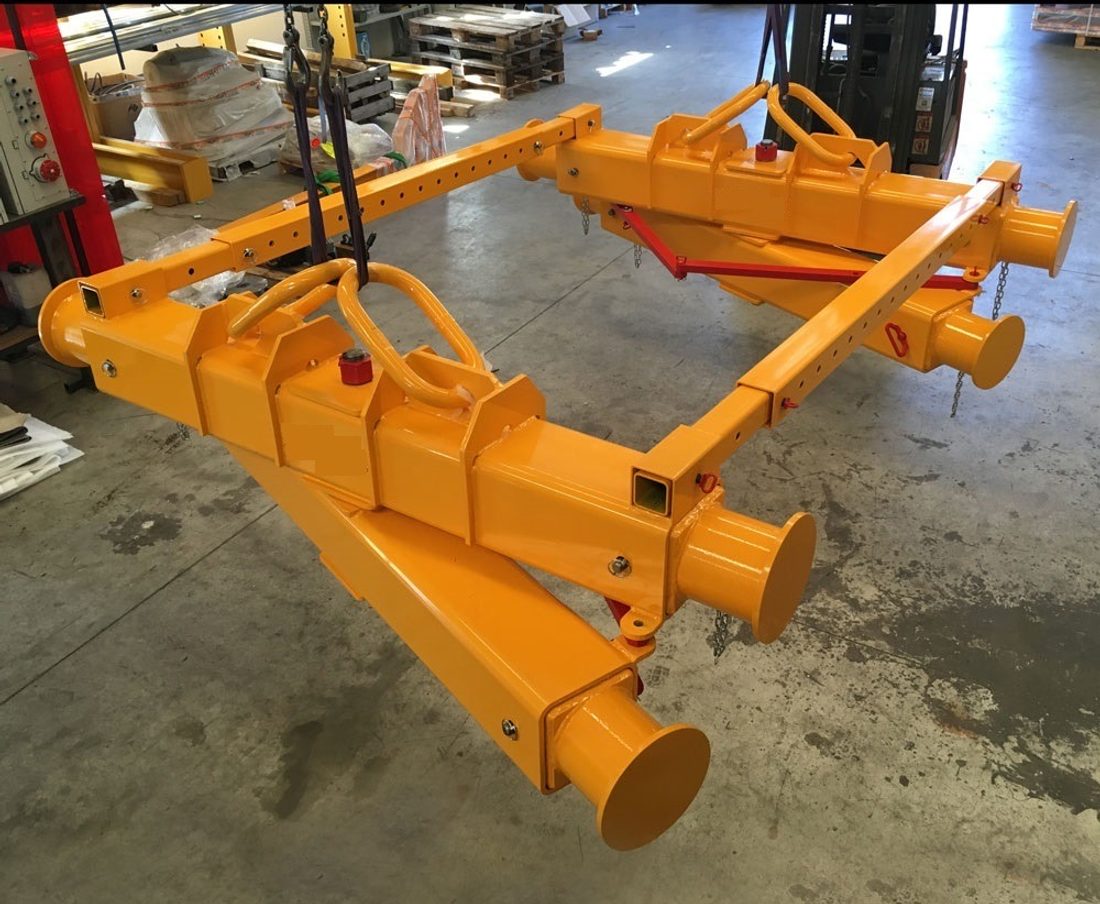

Boat hauling lifting beam telescopic on all axes, 20+20 tonnes

The boat hauling lifting beam, telescopic on all axes, carries 20 tonnes on each of its two suspension points: it adjusts in width and length to the hull, keeps the slings vertical and folds away for storage. For shipyards and ports that haul large boats with gantries, travel lifts and mobile cranes. Attollo construction, list price 6,500 € + VAT.
The main beam and the cross beams extend in steps and lock with pins: the same equipment serves hulls of different width and length, with the slings on the strong points indicated by the yard and the sling legs vertical.
The two 20-tonne suspension points allow lifting with two cranes or with a gantry with two hoists, keeping the hull level; when folded, the lifting beam takes up only the footprint of the retracted beam.
Used with gantry cranes, mobile cranes and travel lifts: upper attachment points for the hooks, four lower attachment points for polyester slings; primer and two coats of enamel with marine environment treatment.
2006/42/EC certified with capacity plate and declaration of conformity; the slings are quoted with the lifting beam, on the length and weight of the hulls.
| Rated capacity | 20 + 20 tonnes (two suspension points) |
| Adjustment | telescopic on all axes, pin-locked |
| Build | foldable, steel painted for marine environment |
| Use | hauling and launching of large boats |
| Supply | attachment points for two cranes or a gantry, four attachment points for slings |
| Certification | 2006/42/EC, capacity plate and declaration of conformity |
Custom-built: every piece of equipment is custom-built and certified to CE 2006/42. Request a quotation for your exact configuration and capacity.
Data sheets
Boat hauling lifting beam telescopic on all axes, 20+20 tonnes: the most common questions
List price 6,500 € + VAT; the lifting slings for boats are quoted on the customer's boats.
That each of the two suspension points carries 20 tonnes: with two cranes or a gantry with two hoists the load is shared between the two points, within the beam's rated capacity.
It can also work with a single crane within the capacity of the suspension point; with two cranes or two hoists the full capacity is used.
