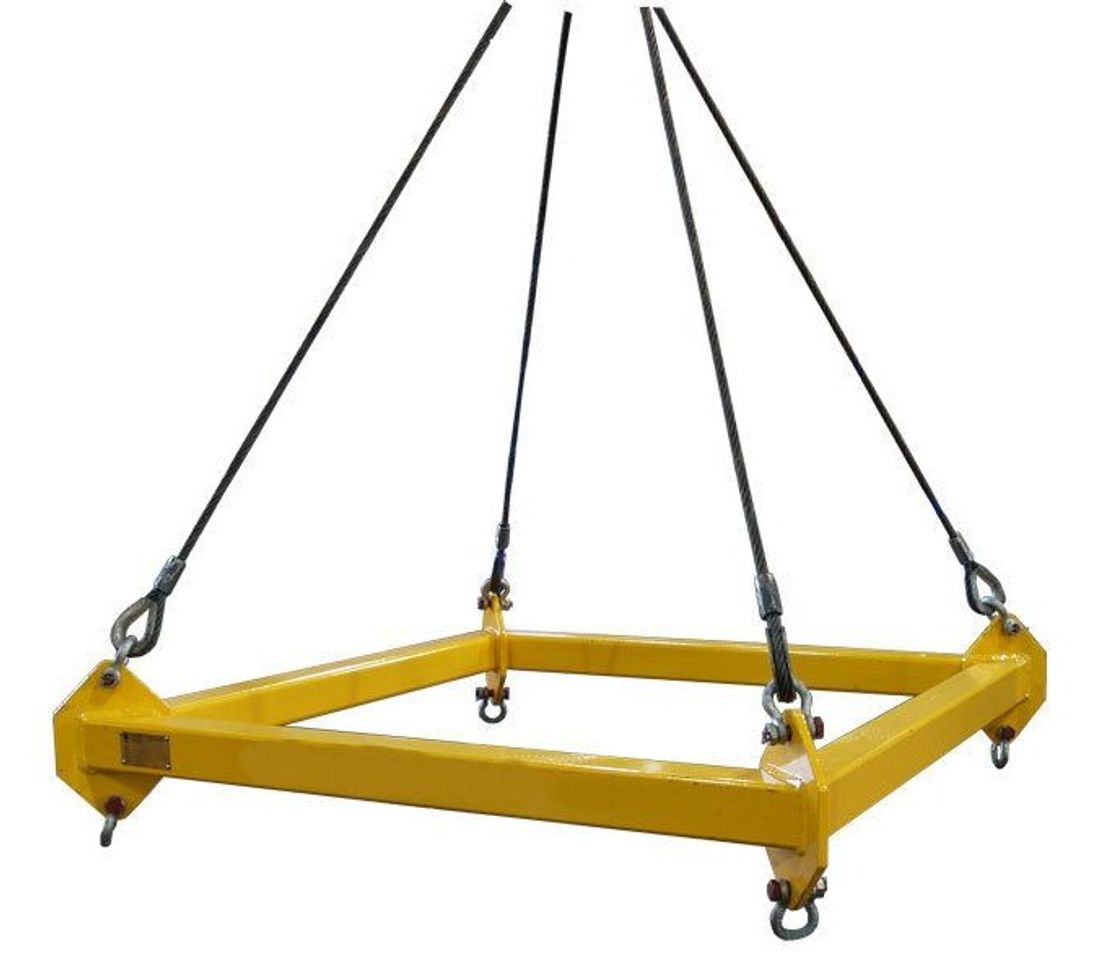

Square spreader beam, custom-built

The square spreader beam is the closed frame with the four attachment points at the corners: the sling legs rise vertical from the eyebolts of the load, skids, cabins, crates and big bags are not squeezed and the crane hook stays in the centre. Built in Milan to the dimensions of the load, in square or rectangular version. List price from 2,800 € + VAT.
The frame is sized on the centre distances of the attachment points of the load: with vertical sling legs the piece is not subject to horizontal components, and a fragile or thin-walled load such as cabins, electrical cabinets and crates rises without deforming.
Compared with the cross, the closed frame is stiffer and suits higher capacities and loads that must stay perfectly level; being fixed, it has no moving parts to lock.
Used with overhead cranes, mobile cranes and gantry cranes: hook or upper shackles for the crane, four lower attachment points for polyester slings, chains or wire ropes; steel structure with primer and two coats of enamel.
2006/42/EC certified with capacity plate and declaration of conformity; the weight and centre distances of the attachment points of the load are required.
| Geometry | square or rectangular frame, four corner attachment points |
| Rated capacity | on the load, on the plate |
| Build | custom-built, painted steel |
| Use | skids, cabins, crates, big bags |
| Supply | upper attachment points for the crane, four lower attachment points |
| Certification | 2006/42/EC, capacity plate and declaration of conformity |
Custom-built: every piece of equipment is custom-built and certified to CE 2006/42. Request a quotation for your exact configuration and capacity.
Data sheets
Square spreader beam, custom-built: the most common questions
List price from 2,800 € + VAT; the price is confirmed on the dimensions and the capacity required by the load.
On the dimensions of the load: the frame is built on the centre distances of the attachment points, square or rectangular.
When the load is always the same, or must stay perfectly level, or the capacity is high: the closed frame is stiffer.
