CE compliant · Machinery Directive 2006/42/EC · EN 1090 certificationDesigned and manufactured in Italy for over 20 years
Home / Catalogue / Cross spreader / Adjustable telescopic cross lifting beam up to 10 tonnes

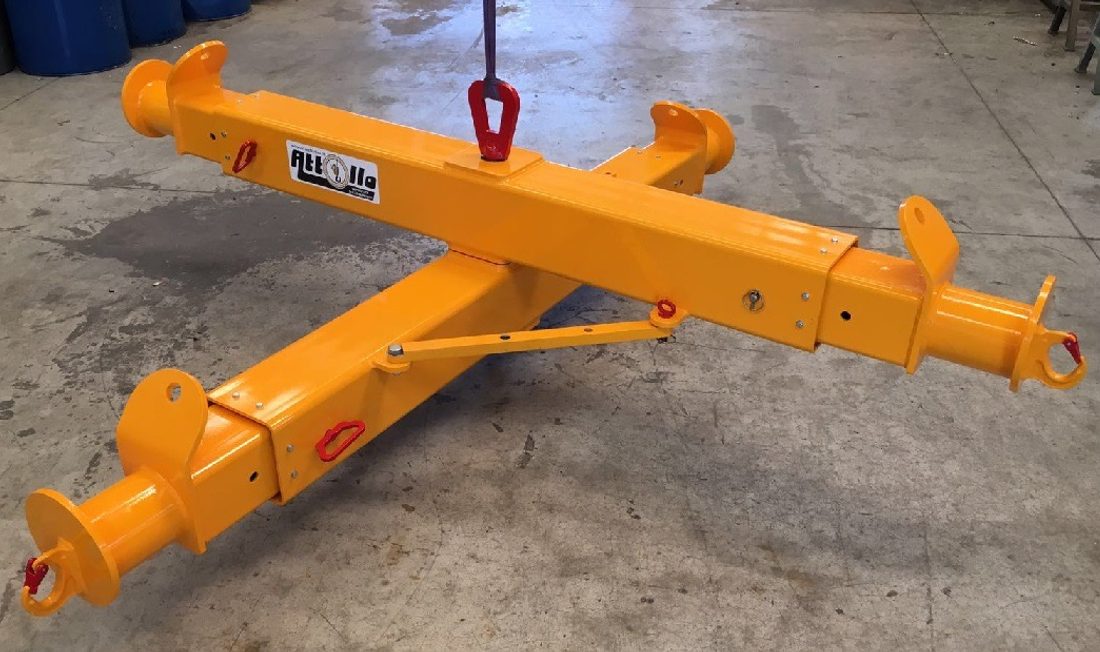

Adjustable telescopic cross lifting beam up to 10 tonnes

Adjustable telescopic cross lifting beam up to 10 tonnes
Cross spreader

The adjustable telescopic cross lifting beam up to 10 tonnes adapts the four attachment points to the dimensions of the load: the arms extend and lock, the sling legs rise vertical and skids, cabins, crates and hulls are lifted level without being squeezed. Foldable for transport and storage. Attollo version, list price 4,000 € + VAT.

Each arm extends in steps and locks with a pin: the cross covers loads of different widths and lengths with the same tool, and folded it travels by van or stays in a corner of the warehouse.

Compared with the fixed square spreader beam, the telescopic cross serves those who change loads often: installers, rental companies, construction sites. Compared with the cross for boats, it is designed for industrial loads with four eyebolts or four slinging points.

Used with overhead cranes, mobile cranes and gantry cranes: central hook and four attachment points for polyester slings, chains or wire ropes; steel structure with primer and two coats of enamel.

2006/42/EC certified with capacity plate and declaration of conformity; the slings are quoted with the lifting beam.

Rated capacityup to 10,000 kg
Armstelescopic, pin-adjustable, foldable
Buildpainted steel
Useskids, cabins, crates, boats
Supplycentral hook, four attachment points
Certification2006/42/EC, capacity plate and declaration of conformity
€ 4.000 + VAT

Custom-built: every piece of equipment is custom-built and certified to CE 2006/42. Request a quotation for your exact configuration and capacity.

Data sheets

Frequently asked questions

Adjustable telescopic cross lifting beam up to 10 tonnes: the most common questions

List price 4,000 € + VAT; slings and accessories are quoted with the lifting beam.
