Cross lifting beam for big bags, BX series 1,000 and 2,000 kg

Cross lifting beam for big bags, BX series 1,000 and 2,000 kg
Cross spreader

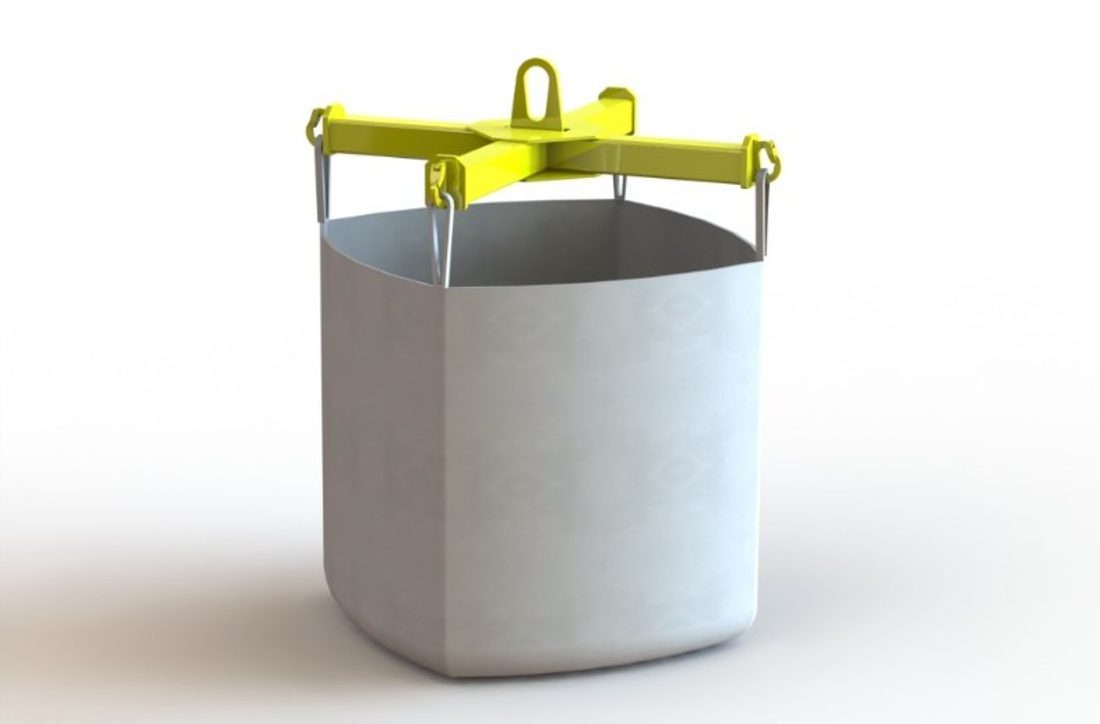

The cross lifting beam for big bags keeps the four loops of the bag at the correct distance: the attachment points are at the ends of the arms, the sling legs rise vertical and the big bag lifts level without being squeezed or swinging. BX series manufactured by Attollo in 8 models of 1,000 and 2,000 kg with arms from 950 to 1,750 mm, weight from 28 to 72 kg. List price from 600 € + VAT.

The table on the data sheet lists the 8 models: BX1 of 1,000 kg and BX2 of 2,000 kg, with A of 950, 1,150, 1,450 or 1,750 mm and B of 650, 800, 1,000 or 1,200 mm, height H from 210 to 250 mm and weight from 28 to 72 kg. The model is chosen on the distance between the loops of the bag.

Steel structure with primer and two coats of enamel, central hook for the crane and four hooks at the ends for the loops; different sizes and higher capacities on request.

With the overhead crane, the jib crane or the forklift with crane arm, the big bag is picked up by its four loops and emptied or stacked without the bag deforming: for granules, powders, aggregates and waste.

2006/42/EC certified with capacity plate and declaration of conformity; the same cross geometry is available in a foldable telescopic version for boats.

SeriesBX, 8 models
Rated capacity1,000 kg (BX1) or 2,000 kg (BX2)
Arms A × Bfrom 950 × 650 to 1,750 × 1,200 mm
Height Hfrom 210 to 250 mm
Weightfrom 28 to 72 kg
Usebig bags, bulk bags
Certification2006/42/EC, capacity plate and declaration of conformity
€ 600 + VAT

Custom-built: every piece of equipment is custom-built and certified to CE 2006/42. Request a quotation for your exact configuration and capacity.

2 capacities · from 1000 to 2000

Data sheets

Frequently asked questions

Cross lifting beam for big bags, BX series 1,000 and 2,000 kg: the most common questions

List price from 600 € + VAT for the small models; the model is chosen on the loops and confirmed in the quotation.
