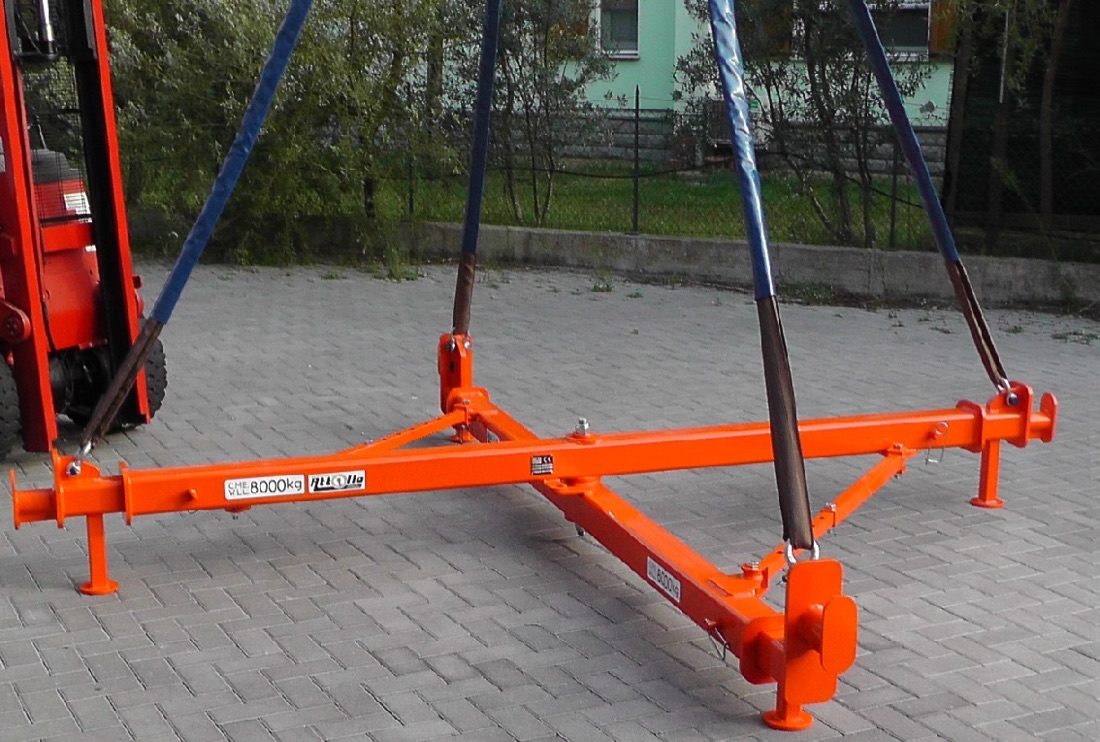

Foldable cross spreader for boats up to 8 tonnes

The foldable cross spreader for boats up to 8 tonnes keeps the four lifting slings for boats at the correct distance: the telescopic arms are adjusted to the hull width, the sling legs stay vertical and the boat rises level without being squeezed. Folded, it takes up little space in storage. Attollo version for ports, boatyards and storage yards, list price 4,000 € + VAT.
The arms extend in steps and lock with pins to the width and length of the hull: from the inflatable to the 8-tonne motorboat, with the slings on the strong points indicated by the boatyard.
At the end of the season the arms retract and the cross folds: the foldable version is designed for those who lift boats in spring and autumn and want the lifting beam out of the way for the rest of the year.
Used with fixed or mobile gantry cranes, mobile cranes and jib cranes for hauling: central hook and four attachment points for polyester slings; primer and two coats of enamel with marine-grade treatment.
2006/42/EC certified with capacity plate and declaration of conformity; the slings are quoted with the spreader, on the length and weight of the hulls.
| Rated capacity | up to 8,000 kg |
| Arms | telescopic, pin-adjustable, foldable |
| Build | steel painted for marine climate |
| Use | hauling and launching boats |
| Supply | central hook, four attachment points for slings |
| Certification | 2006/42/EC, capacity plate and declaration of conformity |
Custom-built: every piece of equipment is custom-built and certified to CE 2006/42. Request a quotation for your exact configuration and capacity.
Data sheets
Foldable cross spreader for boats up to 8 tonnes: the most common questions
List price 4,000 € + VAT; the lifting slings for boats are quoted on the boats.
Up to 10 tonnes, the telescopic cross lifting beam for boats; beyond that, the 20+20 tonne lifting beam telescopic on all axes.
The paint has a marine-grade treatment; after use, a rinse and a check of the pins are enough.
