Foldable telescopic cross lifting beam for boats up to 10 tonnes

Foldable telescopic cross lifting beam for boats up to 10 tonnes
Cross spreader

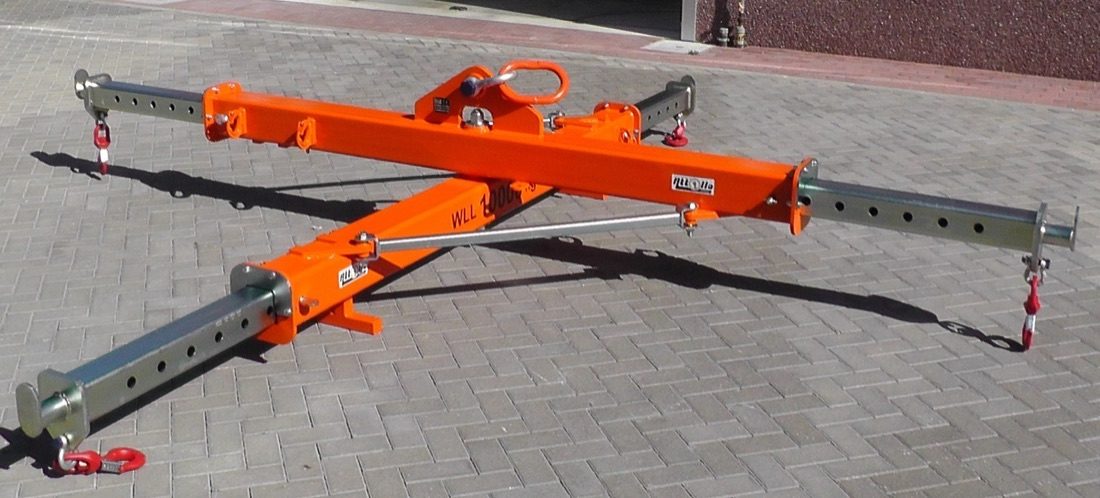

The telescopic cross lifting beam for boats up to 10 tonnes picks up the hull with four slings: the arms extend to the width and length of the boat, the sling legs stay vertical and the hull is not squeezed. Folded, it takes up little space in storage. Attollo version for boatyards, ports and storage yards, list price 4,500 € + VAT.

The four telescopic arms adjust in steps and lock with pins: the same cross serves boats of different widths, from the inflatable to the motorboat, with the lifting slings for boats at the distances of the strong points of the hull.

At the end of the season the arms retract and the cross is stored in a corner of the shed: the foldable version is designed for storage yards that lift boats only in the hauling and launching months.

Used with gantry cranes, mobile cranes and jib cranes for hauling: central hook, four attachment points for polyester slings; primer and two coats of enamel with marine-grade treatment.

2006/42/EC certified with capacity plate and declaration of conformity; the slings are quoted with the lifting beam, on the length and weight of the hulls.

Rated capacityup to 10,000 kg
Armstelescopic, pin-adjustable, foldable
Buildsteel painted for marine climate
Usehauling and launching boats
Supplycentral hook, four attachment points for slings
Certification2006/42/EC, capacity plate and declaration of conformity
€ 4.500 + VAT

Custom-built: every piece of equipment is custom-built and certified to CE 2006/42. Request a quotation for your exact configuration and capacity.

Data sheets

Frequently asked questions

Foldable telescopic cross lifting beam for boats up to 10 tonnes: the most common questions

List price 4,500 € + VAT; the lifting slings for boats are quoted on the customer's boats.
