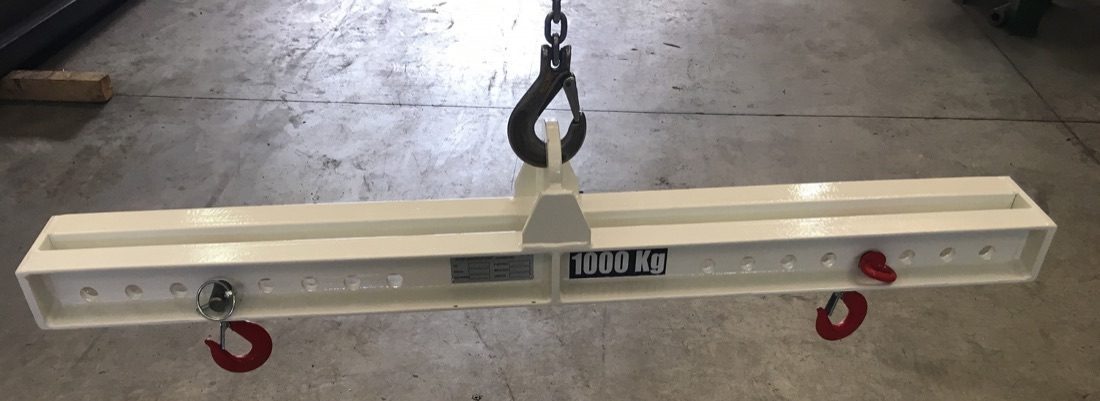

Adjustable single-beam lifting beam 1,000 kg, BR series from 1,000 to 15,000 kg

The adjustable single-beam lifting beam 1,000 kg adapts the lower attachment points to the dimensions of the load: the attachment points slide along the beam and lock at the required centre distance, so the same lifting beam handles pieces of different lengths. BR series manufactured by Attollo, 40 models from 1,000 to 15,000 kg with beam from 2.1 to 6.1 metres, supplied with bow shackles and swivel hooks. List price from 600 € + VAT.
The table on the data sheet lists the models: for 1,000 kg BR-12, 13, 14, 15 and 16 with beam L from 2,100 to 6,100 mm and centre distance A adjustable from 1,000-2,000 mm up to 3,000-6,000 mm; the series goes up to 15,000 kg (BR-154…156). Higher capacities and different sizes on request.
Steel structure with primer and two coats of enamel, upper hook for the crane, bow shackles and swivel hooks as standard for polyester slings, chains or wire ropes. Adjustment is made with the beam unloaded.
It is the general-purpose lifting beam for the workshop and the warehouse: beams, sections, crates and machines with two eyebolts of different lengths, with the jib crane or the overhead crane. The sling legs stay vertical and the hook plumb over the centre of gravity.
2006/42/EC certified with capacity plate and declaration of conformity; for frequent manual lifts, the 6 kg aluminium lifting beam with the same function.
| Series | BR, 40 models from 1,000 to 15,000 kg |
| Rated capacity | 1,000 kg (BR-12…16) |
| Beam L | 2,100, 3,100, 4,100, 5,100 or 6,100 mm |
| Centre distance A | adjustable from half the beam to the beam length minus 100 mm |
| Supply | bow shackles, swivel hooks, primer and two coats of enamel |
| Structure | steel |
| Certification | 2006/42/EC, capacity plate and declaration of conformity |
Custom-built: every piece of equipment is custom-built and certified to CE 2006/42. Request a quotation for your exact configuration and capacity.
Adjustable single-beam lifting beam 1,000 kg, BR series from 1,000 to 15,000 kg — models and capacities
| Model | Capacity (KG) | L (mm) | A max (mm) | A min (mm) |
|---|---|---|---|---|
| BR-12 | 1000 | 2100 | 2000 | 1000 |
| BR-52 | 5000 | 2100 | 2000 | 1000 |
| BR-13 | 1000 | 3100 | 3000 | 1500 |
| BR-53 | 5000 | 3100 | 3000 | 1500 |
| BR-14 | 1000 | 4100 | 4000 | 2000 |
| BR-54 | 5000 | 4100 | 4000 | 2000 |
| BR-15 | 1000 | 5100 | 5000 | 2500 |
| BR-55 | 5000 | 5100 | 5000 | 2500 |
| BR-16 | 1000 | 6100 | 6000 | 3000 |
| BR-56 | 5000 | 6100 | 6000 | 3000 |
| BR-22 | 2000 | 2100 | 2000 | 1000 |
| BR-63 | 6000 | 3100 | 3100 | 1500 |
| BR-23 | 2000 | 3100 | 3000 | 1500 |
| BR-64 | 6000 | 4100 | 4100 | 2000 |
| BR-24 | 2000 | 4100 | 4000 | 2000 |
| BR-65 | 6000 | 5100 | 5100 | 2500 |
| BR-25 | 2000 | 5100 | 5000 | 2500 |
| BR-66 | 6000 | 6100 | 6100 | 3000 |
| BR-26 | 2000 | 6100 | 6000 | 3000 |
| BR-32 | 3000 | 2100 | 2000 | 1000 |
| BR-83 | 8000 | 3100 | 3000 | 1500 |
| BR-33 | 3000 | 3100 | 3000 | 1500 |
| BR-84 | 8000 | 4100 | 4000 | 2000 |
| BR-34 | 3000 | 4100 | 4000 | 2000 |
| BR-85 | 8000 | 5100 | 5000 | 2500 |
| BR-35 | 3000 | 5100 | 5000 | 2500 |
| BR-86 | 8000 | 6100 | 6000 | 3000 |
| BR-36 | 3000 | 6100 | 6000 | 3000 |
| BR-42 | 4000 | 2100 | 2000 | 1000 |
| BR-103 | 10000 | 3100 | 3000 | 1500 |
| BR-43 | 4000 | 3100 | 3000 | 1500 |
| BR-104 | 10000 | 4100 | 4000 | 2000 |
| BR-44 | 4000 | 4100 | 4000 | 2000 |
| BR-105 | 10000 | 5100 | 5000 | 2500 |
| BR-45 | 4000 | 5100 | 5000 | 2500 |
| BR-106 | 10000 | 6100 | 6000 | 3000 |
| BR-46 | 4000 | 6100 | 6000 | 3000 |
| BR-154 | 15000 | 4100 | 4000 | 2000 |
| BR-155 | 15000 | 5100 | 5000 | 2500 |
| BR-156 | 15000 | 6100 | 6000 | 3000 |
Technical data from the Attollo catalogues. Prices and custom configurations on request.
Data sheets
Adjustable single-beam lifting beam 1,000 kg, BR series from 1,000 to 15,000 kg: the most common questions
List price from 600 € + VAT; the other BR series models are confirmed in the quotation.
Centre distance A ranges from half the beam to the full beam length minus 100 mm: for example BR-14 (4,100 mm beam) from 2,000 to 4,000 mm.
No: the attachment points are moved with the beam unloaded and locked before lifting.
