Overhead cranes and suspended track systems: single-girder up to 10 t, double-girder up to 60 t, enclosed tracks from 125 to 2,000 kg
Overhead cranes and suspended track systems serve the entire working area from above: the overhead crane with load-bearing steel plate girders, top-running or suspended, single-girder up to 10 tonnes and double-girder up to 60; the suspended track system with modular enclosed track profiles, from 125 to 2,000 kg, anchored to the roof structures or the ceiling. Designed and built by Attollo to customer specifications. List prices from 6,000 € + VAT.

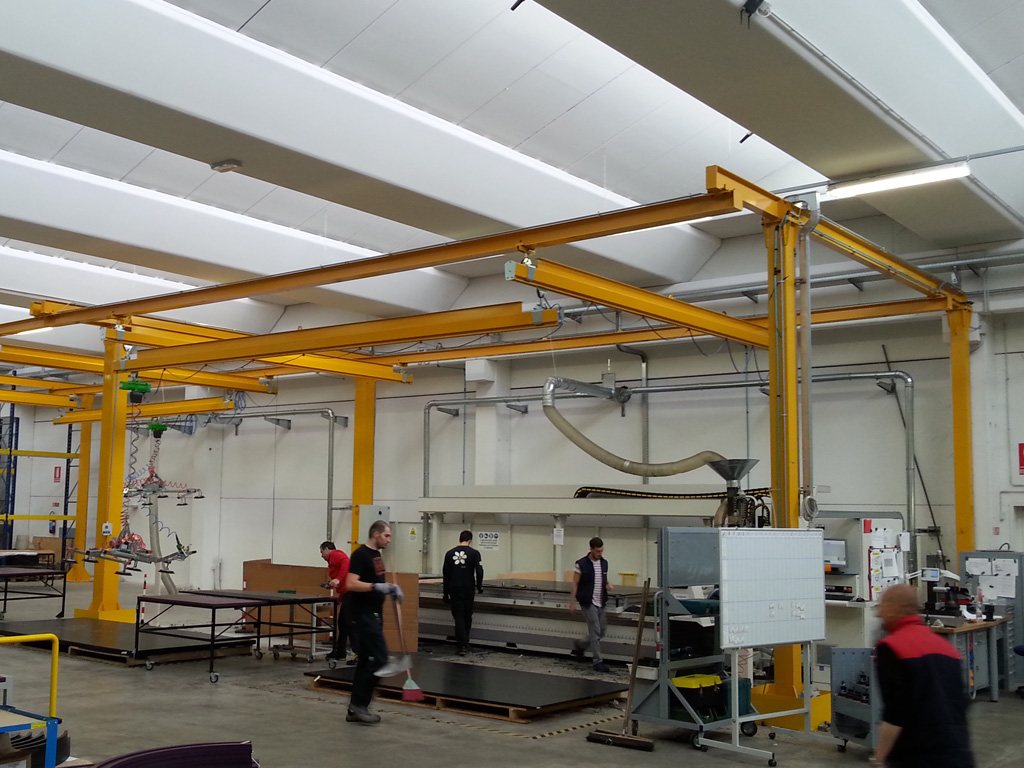

Light overhead crane on columns
The top-running single-girder overhead crane on its own columns, for factory buildings without runways: up to 10 tonnes and 25 metres of span, motorized travel, wire rope hoist; double-girder up to 60 tonnes and 32 metres, also in a low-headroom version.
Suspended track systems (enclosed track)
Small, medium and large enclosed track profiles, from 125 to 2,000 kg with suspension spacing up to 7 metres: monorails and small push-type overhead cranes anchored to beams, slabs and roofs.
Overhead cranes and suspended systems: models, capacities and dimensions
| Model | Rated capacity | Span / spacing | Structure | Handling |
|---|---|---|---|---|
| Light overhead travelling crane on columns, single-girder up to 10 tonnes | up to 10 t (double-girder up to 60 t) | up to 25 m (double-girder up to 32 m) | — | motorised |
| 1,000 kg suspended crane system with enclosed track | 1,000 kg (series from 125 to 2,000 kg) | up to 7 m | modular enclosed track, small, medium and large sizes | push or electric trolleys |
Overhead cranes and suspended track systems: the types
| Type | Rated capacity | Span / spacing | Travel | Lifting |
|---|---|---|---|---|
| Top-running single-girder overhead crane | up to 10 t | up to 25 m | motorised | wire rope hoist |
| Double-girder overhead crane | up to 60 t | up to 32 m | motorised | wire rope hoist |
| Suspended overhead crane | made to measure | made to measure | manual or electric | chain or wire rope hoist |
| Small / medium / large enclosed track suspended system | 125 – 2.000 kg | suspensions up to 7 m | push or electric | chain hoist |
Data from the Attollo documentation: the girders are also supplied with a bolted joint for transport in 40-foot open-top containers; every system is designed for the specific factory building.
How to choose overhead cranes and suspended systems
Overhead crane or suspended track system
Above 2 tonnes or more than 7 metres between suspensions, an overhead crane is needed; below that, the enclosed track system covers the area with less structure and anchors to the existing roof.
Top-running or suspended
The top-running overhead crane travels on its own runway and can be motorized; the suspended crane hangs from the roof beams, with manual or electric travel, where there are no columns.
Single-girder or double-girder
Single-girder up to 10 tonnes and 25 metres; double-girder for 60 tonnes and 32 metres, or when more under-hook height is needed. The low-headroom version makes the most of low factory buildings.
Suspensions
Five suspension types for the enclosed track: on reinforced concrete with front drilling, bolted to steel supports, under slabs, on beams and tubular sections, under steel L-beams.
What the quotation requires
Capacity, area to cover, clear height, structure of the factory building and duty cycles: with this data the system is designed and quoted.
Overhead cranes and suspended systems: the most common questions
List price for the light overhead travelling crane on columns starts at 8,000 € + VAT and for the 1,000 kg suspended crane system with enclosed track at 6,000 €; the final price follows the design for the factory building.
Single-girder up to 10 tonnes and 25 metres, double-girder up to 60 tonnes and 32 metres; enclosed track systems from 125 to 2,000 kg with suspensions up to 7 metres; beyond that, custom-designed.
Yes: the system is delivered installed and tested, with CE marking, declaration of conformity, manual and the file for periodic inspections.
Yes: the suspended system is anchored to the existing structures after checking the roof; the overhead travelling crane on its own columns places no load on the building structure.
Other cranes and lifting systems categories
Data sheets for this category

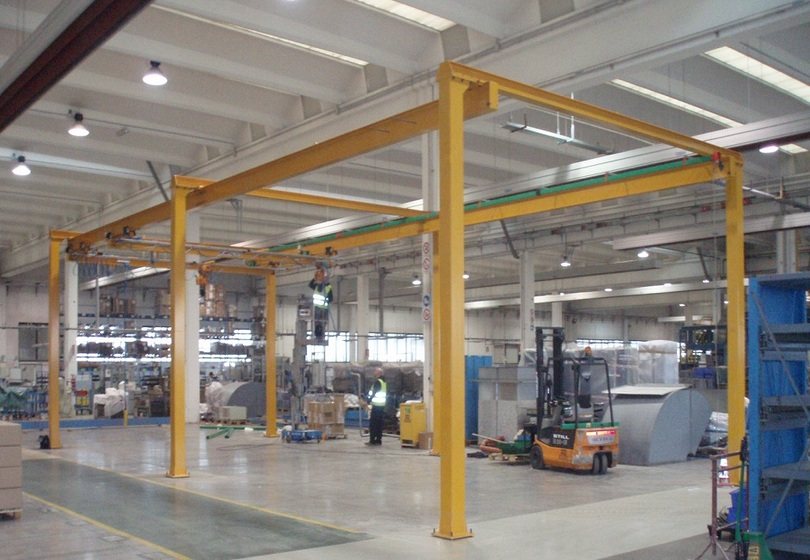

Overhead cranes and suspended systems — altre foto
