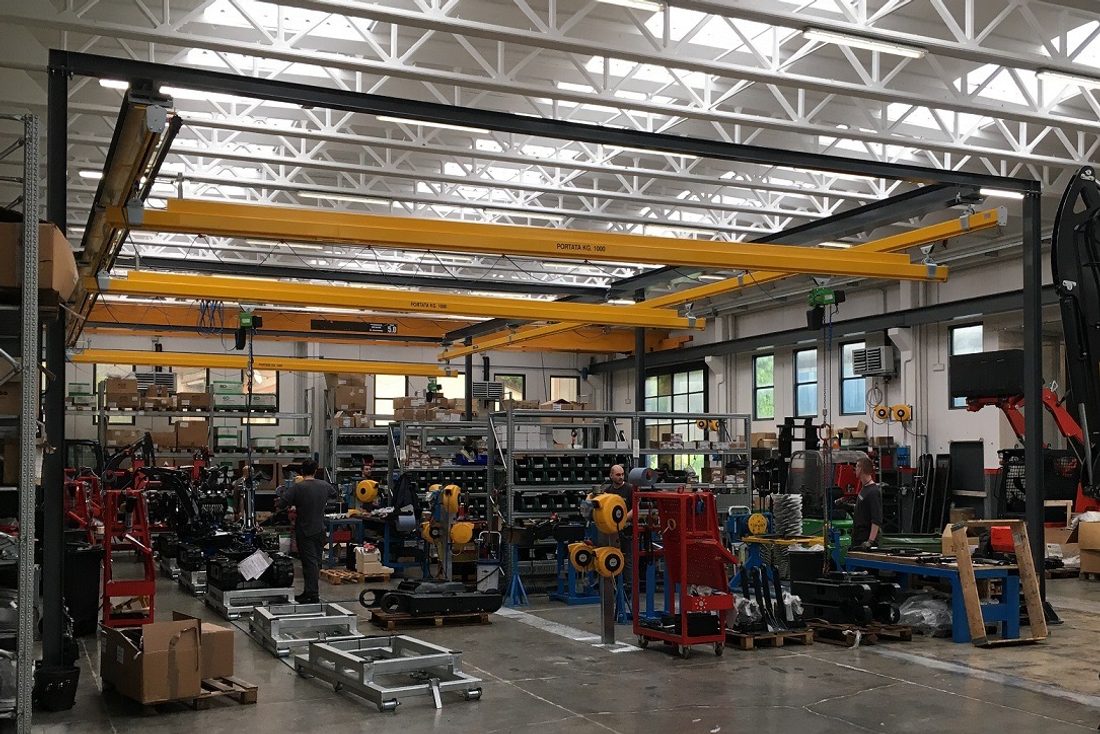

1,000 kg suspended crane system with enclosed track

The 1,000 kg suspended crane system with enclosed track covers the working area from above without columns: the modular enclosed-track profiles are anchored to the beams, slabs or existing roof, the trolleys run by hand or motorised and the chain hoist lifts the load. Small, medium and large profiles from 125 to 2,000 kg with suspension spacing up to 7 metres, designed around the factory building. List price 6,000 € + VAT.
The three track sizes cover 125 to 2,000 kg; the suspensions are chosen to suit the structure: front drilling into reinforced concrete, bolts on steel supports, fixing under slabs, on beams and tubular sections, under L-section steel beams.
Monorail, small push-type overhead crane or multi-track system: the modules are combined to suit the area to be served and can be extended later; manual handling moves the load with minimal effort.
It is the system for assembly departments, production lines and warehouses where medium loads must be moved quickly over a large area, with the existing roof acting as the structure.
Design based on the factory building, assembly and testing; certified to 2006/42/EC with declaration of conformity, manual and file for periodic inspections.
| Rated capacity | 1,000 kg (series from 125 to 2,000 kg) |
| Profile | modular enclosed track, small, medium and large sizes |
| Suspension spacing | up to 7 m |
| Handling | push or electric trolleys |
| Lifting | manual or electric chain hoist |
| Structure | anchored to beams, slabs or existing roof |
| Certification | 2006/42/EC, capacity plate and declaration of conformity |
Custom-built: every piece of equipment is custom-built and certified to CE 2006/42. Request a quotation for your exact configuration and capacity.
Data sheets
1,000 kg suspended crane system with enclosed track: the most common questions
List price 6,000 € + VAT for the 1,000 kg configuration; the final price follows the design based on the area and the structure.
It is checked before the design: the suspension is chosen to suit the existing structure and, where that is not enough, reinforcements are added.
Yes: the profiles are modular and the system can be extended with new tracks and new sections.
