Dismountable aluminium gantry cranes: compact, light, standard and heavy
The aluminium gantry crane breaks down into elements, travels in a van and is assembled by hand with no auxiliary plant: the capacity of a fixed installation, where it is needed. Six series from 500 to 5,000 kg with beams from 2 to 7 metres and adjustable height, plus the 2,500 kg adjustable light version and the multi-purpose lifter, all certified to 2006/42/EC. List prices from 1,800 € + VAT.
Compact and folding gantry cranes, up to 500 kg
For low rooms and quick jobs: the 500 kg KSB compact series with beams from 2 to 6 m and height from 1.9 to 3.1 m, the FSB folding series with legs that fold onto the beam and beams of 2, 3 or 4 m, and the 250 kg multi-purpose lifter with wire rope winch for tight spaces.
Light and standard gantry cranes, 500 to 3,000 kg
The LSB light series from 500 to 1,500 kg and the ASB standard series up to 3,000 kg with beams from 2 to 7 m, height adjustable in 20 cm steps and accessories (winches, trolleys, wheels, outriggers); the adjustable light version from 1,000 to 2,500 kg with three heights and weights from 103 to 223 kg; the 2,000 kg mobile gantry with two wire rope winches and electric hoist already fitted; the BAS multi-beam system linking two ASB units.

Light series aluminium gantry crane 1,500 kg (LSB)

Standard series aluminium gantry crane 3,000 kg (ASB)

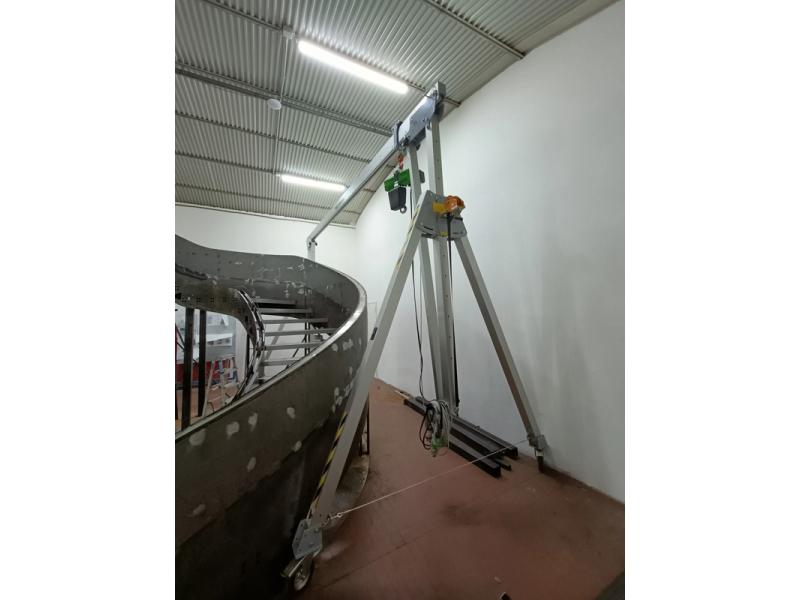

Light adjustable dismountable aluminium gantry crane, 2,500 kg

Mobile aluminium gantry crane, adjustable and dismountable, 2,000 kg

Multi-beam system for gantry cranes (BAS)
Heavy gantry cranes, up to 5,000 kg
The HSB heavy series with larger sections, Ø 250 mm cast-iron wheels with polyurethane tread and height in 30 cm steps, and the 5,000 kg gantry with outdoor wheels for sites and quays: five tonnes with a structure assembled by hand.
Transport accessories
The beam carrier trolley for moving the beam single-handed and the transport trolley that gathers uprights and beam into a single wheeled package.
Aluminium gantry crane: models, capacities and dimensions
| Model | Rated capacity | Beam | Height | Structure |
|---|---|---|---|---|
| Compact aluminium gantry crane 500 kg (KSB) | up to 500 kg of goods, or 2 people | 2 – 6 m (KSB200 · 300 · 400 · 500 · 600) | from 1.9 to 3.1 m | aluminium, dismountable |
| Folding aluminium gantry crane (FSB) | up to 500 kg of goods, or 2 people | 2 · 3 · 4 m (FSB200 · FSB300 · FSB400) | adjustable 1.9 – 3.1 m, 4 levels of 210 mm | beam, 2 detachable connectors, 2 dismountable supports, 1 trolley |
| 250 kg aluminium multi-purpose lifter with winch | 250 kg | 600 mm | 95 to 2,000 mm | hand winch |
| Light series aluminium gantry crane 1,500 kg (LSB) | 500 – 1,500 kg (according to configuration) | 2 – 7 m (200 · 250 · 300 · 350 · 400 · 500 · 600 · 700 cm) | from 159.4 to 643.0 cm according to the support | E1 · F1 · G1 · G2 |
| Standard series aluminium gantry crane 3,000 kg (ASB) | up to 3,000 kg (supports A1 · B1 · C1 with a beam up to 4 m) | 2 – 7 m (200 · 250 · 300 · 350 · 400 · 500 · 600 · 700 cm) | from 159.4 to 643.0 cm according to the support | A1 · B1 · C1 · C2 |
| Light adjustable dismountable aluminium gantry crane, 2,500 kg | 1,000, 1,600 or 2,000 kg depending on configuration (up to 2,500 kg) | from 2,000 to 6,000 mm | H0 1,500-2,100 mm · H1 2,100-2,900 mm · H2 3,000-4,000 mm under beam | aluminium, dismountable, on braked wheels |
| Mobile aluminium gantry crane, adjustable and dismountable, 2,000 kg | 2,000 kg | — | in height and width | aluminium, dismountable |
| Multi-beam system for gantry cranes (BAS) | up to 1,000 kg | from 200 to 700 cm (ASB range) | — | 2 ASB gantry cranes linked in an H |
| Heavy series aluminium gantry crane 5,000 kg (HSB) | up to 5,000 kg (supports U1 · U2 with a beam up to 5 m) | 2 – 7 m (200 · 300 · 400 · 500 · 600 · 700 cm) | from 275.7 to 557.1 cm according to the support | U1 · U2 · U3 |
| Light aluminium gantry crane 5,000 kg | up to 5,000 kg | — | — | aluminium, dismountable into elements |
| 5,000 kg aluminium gantry crane, dismountable, with outdoor wheels | up to 5,000 kg | from 2 to 7 m depending on configuration | adjustable in steps on the uprights, pin-locked | aluminium, dismountable into elements, manual assembly |
| Aluminium beam carrier trolley for gantry cranes | — | — | to the length of the beam, dismountable | transport of the beam of the dismantled gantry crane |
| Transport trolley for gantry crane | — | — | — | transport and storage of the dismantled gantry |
The manufacturer's series: capacities, beams and heights
| Series | Rated capacity | Beam length | Working height | Adjustment | Notes |
|---|---|---|---|---|---|
| KSB compact | up to 500 kg (or 2 persons) | 2 – 6 m | 1,9 – 3,1 m | — | for low heights; KSB-LE version |
| FSB folding | up to 500 kg (or 2 persons) | 2, 3 or 4 m | 1,9 – 3,1 m | 4 levels of 210 mm | folding legs, Ø 80 mm wheels with brake |
| LSB light | 500 – 1,500 kg | 2 – 7 m | 1,59 – 6,43 m | 20 cm steps | beam from 13.2 to 46 kg |
| ASB standard | up to 3,000 kg | 2 – 7 m | 1,59 – 6,43 m | 20 cm steps | beam from 26.7 to 93.5 kg; accessories and BAS system |
| HSB heavy | up to 5,000 kg | 2 – 7 m | 2,76 – 5,57 m | 30 cm steps | beam from 32 to 112 kg, Ø 250 mm wheels |
Manufacturer's catalogue data: capacity depends on the combination of beam and supports. Standards EN 13001 and EN 15011.
How to choose aluminium gantry crane
Capacity and beam length
The capacity applies to a combination of beam and supports: the same series carries more with the short beam and less with the long one. Tell us the weight of the piece and the span required and we select series and beam from the manufacturer's table.
Working height and adjustment
Height is adjusted in steps on the uprights and locked with a pin: 20 cm in the LSB and ASB series, 30 cm in the HSB, four levels in the FSB. The hoist headroom must be deducted from the working height to obtain the hook height.
Transport and assembly
All series break down into beam, uprights and bases that travel in a van; assembly is manual, with the chain hoist raising the uprights in the large series. The beam carrier trolley and the transport trolley reduce the job to one person.
Low spaces and quick jobs
In plant rooms, basements and containers the KSB compact passes through doors and works under 3.1 m; for emergency call-outs the FSB folding opens in a couple of minutes without dismantling anything.
Heavy and outdoor loads
Above 3,000 kg, the HSB heavy series and the 5,000 kg gantry with outdoor wheels, for shipyards, quays and plant maintenance where a steel gantry would need a mobile crane for every move.
Aluminium gantry crane: the most common questions
List price: the FSB folding starts at 1,800 € + VAT, the KSB compact at 2,500 €, the LSB light at 4,700 €, the ASB standard at 5,000 €, the 2,500 kg adjustable at 8,000 €, the HSB heavy series at 11,000 € and the 5,000 kg gantry at 10,000-12,000 € depending on the version. Hoist not included.
The beam ranges from 8 kg (2 m FSB) to 112 kg (7 m HSB); the 2,500 kg adjustable gantry weighs 103 to 223 kg complete. The elements can still be handled by two people.
Two, with no auxiliary plant: the uprights of the large series are raised with the gantry's own chain hoist, as the manufacturer's manual indicates.
The KSB and FSB series are also approved as a fall-arrest anchor point for 2 persons and the BAS system for up to 5, with the dedicated trolleys; the other series are for goods. We state this in the quotation according to the use.
Yes: built to standards EN 13001 and EN 15011 and the Machinery Directive 2006/42/EC, delivered with CE marking, capacity plate, declaration of conformity and manual.
