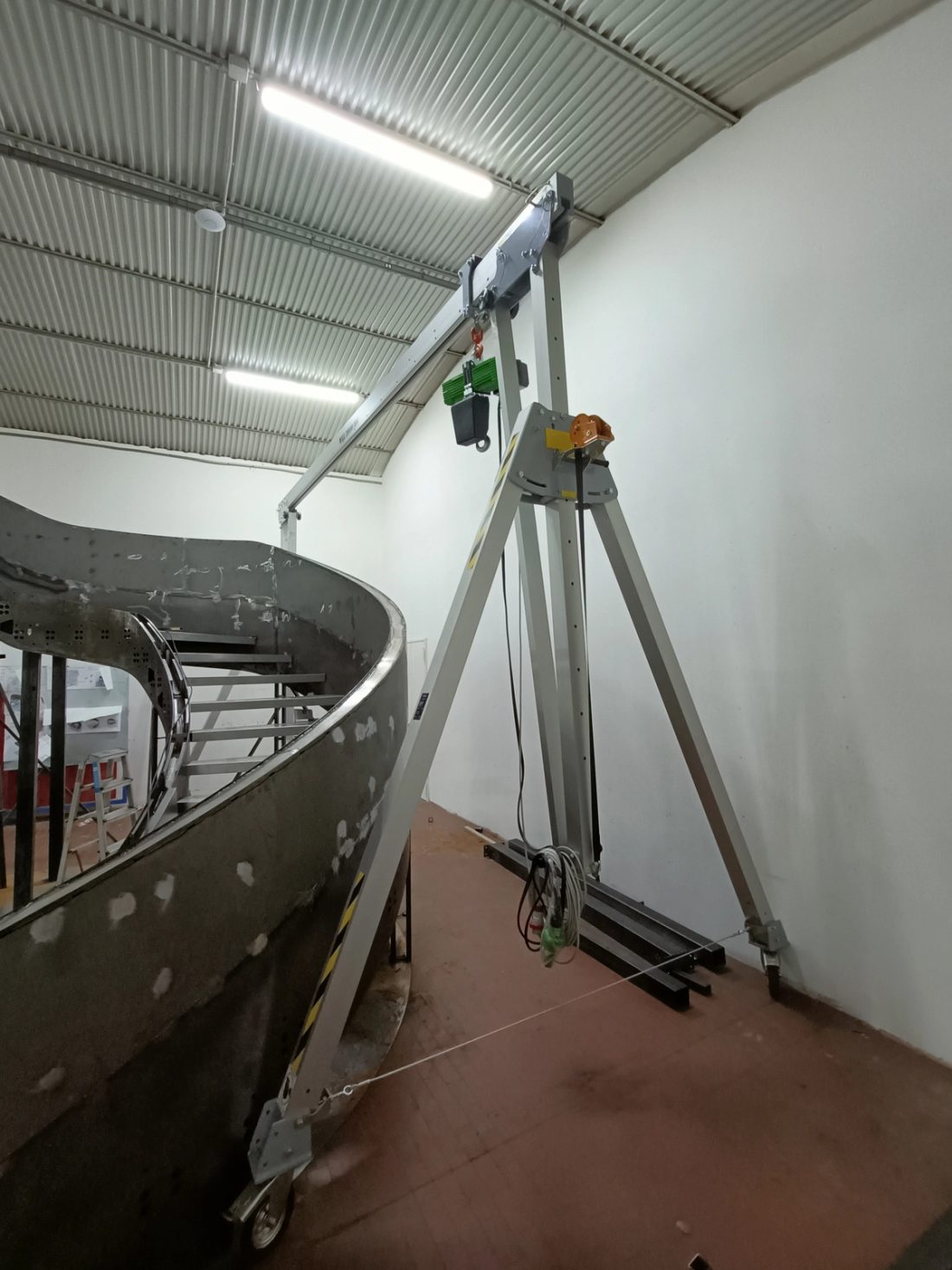

Light adjustable dismountable aluminium gantry crane, 2,500 kg

Light adjustable dismountable aluminium gantry crane, 2,500 kg
Aluminium gantry crane

The 2,500 kg light adjustable dismountable aluminium gantry crane moves between site and workshop workstations and adjusts in height over three levels: the table on the data sheet lists the 1,000, 1,600 and 2,000 kg configurations with widths from 2 to 6 metres and weights from 103 to 223 kg, that is a crane two people assemble by hand. With manual chain hoist or 380/220 V electric hoist, list price €8,000 + VAT.

Three working heights: H0 with clear height under beam from 1,500 to 2,100 mm, H1 from 2,100 to 2,900 mm, H2 from 3,000 to 4,000 mm, with base B growing from 1,100 to 2,050 mm to keep the crane stable. Width runs from 2,000 to 6,000 mm for 1,000 kg, up to 5,000 mm for 1,600 kg and up to 4,000 mm for 2,000 kg, with clear width from 1,300 to 5,300 mm.

Weight is the figure that matters to whoever transports it: from 103 kg for the 1,000 kg crane with 2 m width at height H0 to 223 kg for the 1,600 kg crane at 5 m in H2. It breaks down into beam, uprights and bases, travels in a van and is reassembled without auxiliary equipment.

The hoist trolley runs on the beam: manual chain hoist for occasional lifts, 380/220 V electric chain hoist for frequent cycles, chosen on the capacity of the configuration. Braked wheels to move the unloaded crane on smooth floors.

It is the crane of the installer and the maintenance technician who works in different places: it is taken to the customer, assembled over the machine, used and taken away again. CE certified to 2006/42/EC with capacity plate and declaration of conformity; configurations beyond the table are quoted on request.

Rated capacity1,000, 1,600 or 2,000 kg depending on configuration (up to 2,500 kg)
Widthfrom 2,000 to 6,000 mm
Clear widthfrom 1,300 to 5,300 mm
HeightsH0 1,500-2,100 mm · H1 2,100-2,900 mm · H2 3,000-4,000 mm under beam
Weightfrom 103 to 223 kg depending on capacity, width and height
Hoistmanual chain or 380/220 V electric chain
Structurealuminium, dismountable, on braked wheels
Certification2006/42/EC, capacity plate and declaration of conformity
€ 8.000 + VAT

Custom-built: every piece of equipment is custom-built and certified to CE 2006/42. Request a quotation for your exact configuration and capacity.

3 capacities · from 1000 to 2000

Data sheets

Frequently asked questions

Light adjustable dismountable aluminium gantry crane, 2,500 kg: the most common questions

List price 8,000 € + VAT; the configuration (capacity, width, height) and the hoist determine the final price.
